Cummins 4B3.9-G1 50hz 24kw 30 Kva Diesel Generator Set for Charging

Name: Cummins 4B3.9-G1 50hz 24kw 30 Kva Diesel Generator Set for Charging
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: 4B3.9-G1
Price: 1181600.00 USD
Availability: InStock

Brand Name:	Cummins
Model Number:	4B3.9-G1
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Place Of Origin::

Jiangsu China

Brand Name::

MBKL

Rated Voltage::

230V/400V

Engine Model::

Cummins 4B3.9-G1

Rated Current::

43.2A

Frequency::

50Hz/60Hz

Alternator::

MBC21A

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

1800x760x1400mm

Genset Weight::

890kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-C24

Packaging Details:

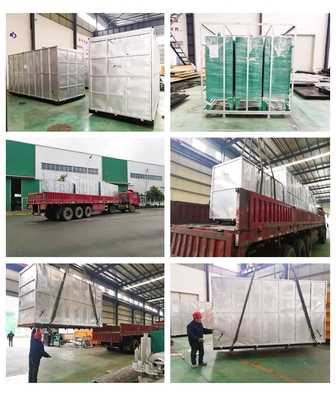

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

24kw 30 Kva Diesel Generator

Cummins 4B3.9-G1 30 Kva Diesel Generator

4B3.9-G1 24kw diesel generator

Product Description

Cummins 4B3.9-G1 24kw 30kva 50hz high performance diesel generator set AC Three Phase Over Load Protection

Diesel generator sets Cummins 4B3.9-G1Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-C24
Prime Power		20KW/25KVA
Standby Power		22KW/27.5KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		43.2A
Genset Weight		890KG(Net)
Length x Width x Height (Engine) (mm)		1800x760x1400mm
Voltage		400/230V
Frequency		50HZ
Engine Specification
Manufacturer		Dongfeng Cummins Engine Co. Ltd
Model		4B3.9-G1
Rated speed		1500rpm
Prime Power		24KW/30KVA
Standby Power		27KW/33.745KVA
Fuel Consumption		<=210g/KW.H
Lube oil capacity		9 L
Bore (mm) x Stroke (mm)		102*120
Compression ratio		16.5:1
Displacement (litre)		3.92L
Coolant capacity, L		/
Configuration		4 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC21A
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

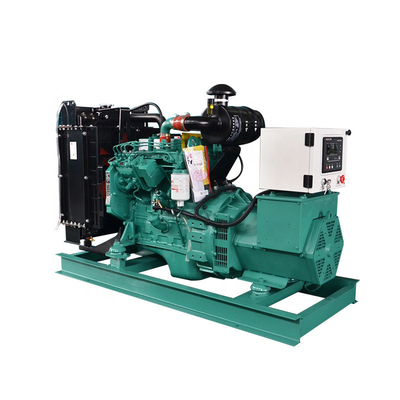

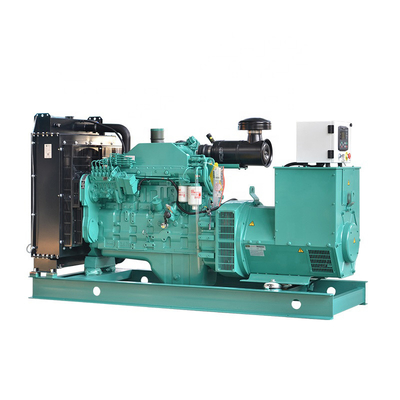

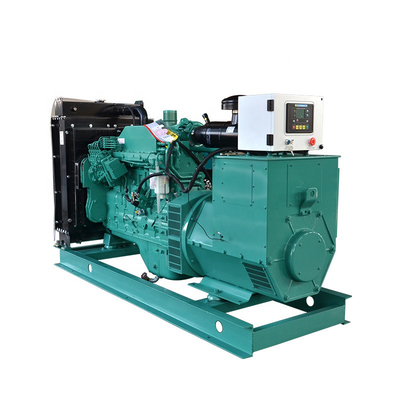

Cummins 4B3.9-G1 50hz 24kw 30 Kva Diesel Generator Set for Charging 0

Cummins 4B3.9-G1 24kw 30kva 50hz Workshop

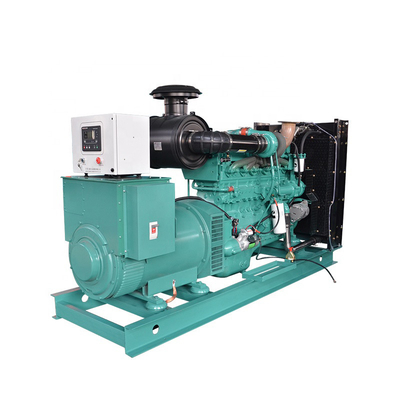

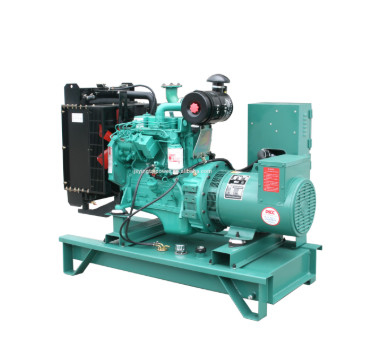

Cummins 4B3.9-G1 50hz 24kw 30 Kva Diesel Generator Set for Charging 1

About MingBang Intelligent Technology

Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai

Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.

Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!

Our customers

FAQ:

Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: What is your MOQ of this item?
A: 1 set.
Q3: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: What is your company's available production capacity?
A: 50 Sets per Month.
Q5: What is the lead time?
A: 2-7 working days after received the 30%T/T deposit.
Q6: What are your payment terms?
A: 30% TT as deposit,70% TT before Shipment.
Q7: Does your generator have global warranty?
A:Yes, most of our products such as Cummins,Perkins and so on enjoy the global warranty service.

And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service.
