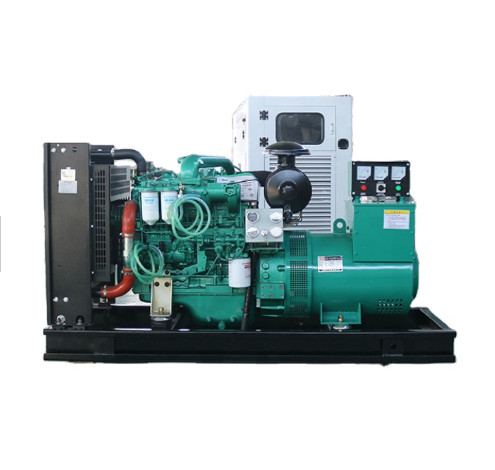

4 Cylinder Water Cooled YC4D60-D21 Yuchai Genset

Name: 4 Cylinder Water Cooled YC4D60-D21 Yuchai Genset
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: YC4D60-D21
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Yuchai
Model Number:	YC4D60-D21
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union, T/T, D/P, L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Place Of Origin::

Jiangsu China

Brand Name::

MBKL

Rated Voltage::

230V/400V

Engine Model::

Yuchai YC4D60-D21

Rated Current::

72A

Frequency::

50Hz/60Hz

Alternator::

MB-40

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

108*115mm

Genset Weight::

8500kgs

Speed::

1500/1800rpm

Model Number::

MBC22B

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

YC4D60-D21 Yuchai Genset

YC4D60-D21 YUCHAI Diesel Generator

YC4D60-D21 Water Cooled Diesel Generator

Product Description

China Yuchai Brand 4cylinder Water Cooled 40kw Portable Diesel Generator 50kva Power Plant

Yuchai Brand Genset Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-40
Prime Powder		80KW/100KVA
Standby Powder		95KW/118.75KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		72A
Genset Weight		800kg(Net)
Length x Width x Height (Engine) (mm)		18007001150
Voltage		400/230V
Frequency		50HZ
Engine Specification
Manufacturer		Guangxi Yuchai Machinery Group Co., Ltd
Model		YC4D60-D21
Rated speed		1500rpm
Prime Powder		40KW/50KVA
Standby Powder		44KW/55KVA
Fuel Consumption		<=240g/KW.H
Lube oil capacity		9-11L
Bore (mm) x Stroke (mm)		108*115mm
Compression ratio		17.5:1
Displacement (litre)		4.214
Coolant capacity, L		/
Configuration		4 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC22B
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless
