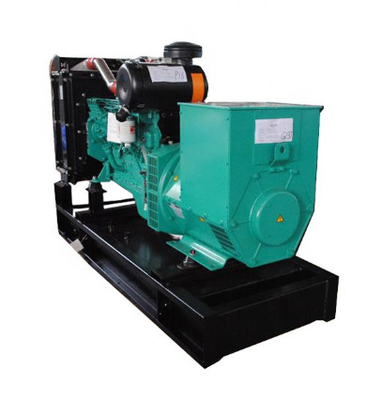

80kw 100kva 6BT5.9-G2 Three Phase Diesel Generator Set Cummins Engine Genset

Name: 80kw 100kva 6BT5.9-G2 Three Phase Diesel Generator Set Cummins Engine Genset
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: 6BT5.9-G2
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Cummins
Model Number:	6BT5.9-G2
MOQ:	1PC
Price:	Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Rated Voltage::

230V/400V / 110/240V

Engine Model::

Cummins 6BT5.9-G2

Rated Current::

144A

Frequency::

50Hz/60Hz

Control Panel::

Deepsea / Harsen / Smartgen

Warranty Time::

1 Year

Genset Dimension::

2000x800x1300mm

Genset Weight::

1260kgs

Rotate Speed::

1500rpm/1800rpm

Packaging Details:

Plastic wrapped on wooden pallet, container box . LCL, 20FT and 40FT

Supply Ability:

200pcs/month

Highlight:

550KVA Three Phase AC Generator

EACC certified Three Phase AC Generator

550KVA 3 phase ac generator

Product Description

100KVA Three Phase AC Generator Cummins Engine Genset for standby Use

Our product range is dynamic and has a model to suit your needs.

Provide power solutions for a multitude of applications including residential, commercial, industrial, hospitality and agricultural from 2.5kva to over 3000kva.

Original diesel generator with genuine engine.
If fake,million refund.

Cummins Diesel Genset Specification
Manufacturer		Jiangsu Mingbang Intelligent Technology Co.Ltd
Model		MB-C80
Prime Power		80KW/100KVA
Standby Power		86KW/107.5KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		144A
Genset Weight		1260KG
Length x Width x Height (Engine) (mm)		2000x800x1300mm
Voltage		400/230V
Frequency		50HZ
Engine Specification
Manufacturer		Dongfeng Cummins Engine Co. Ltd
Model		6BT5.9-G2
Rated speed		1500rpm
Prime Power		86KW/107.5KVA
Standby Power		92KW/115KVA
Fuel Consumption		<=210g/KW.H
Lube oil capacity		16.4L
Bore (mm) x Stroke (mm)		102*120
Compression ratio		17.5:1
Displacement (litre)		5.9L
Coolant capacity, L		/
Configuration		6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Jiangsu Mingbang Intelligent Technology Co.Ltd
Model		MBC27A
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

80kw 100kva 6BT5.9-G2 Three Phase Diesel Generator Set Cummins Engine Genset 0

FAQ:

Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: What is your MOQ of this item?
A: 1 set.
Q3: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: What is your company's available production capacity?
A: 50 Sets per Month.
Q5: What is the lead time?
A: 2-7 working days after received the 30%T/T deposit.
Q6: What are your payment terms?
A: 30% TT as deposit,70% TT before Shipment.
Q7: Does your generator have global warranty?
A:Yes, most of our products such as Cummins,Perkins and so on enjoy the global warranty service.

And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service.

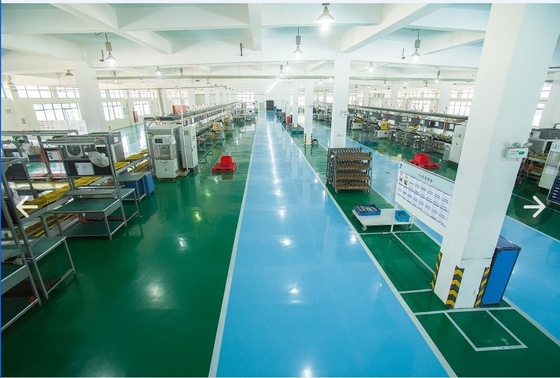

Welcome to visit factory~
