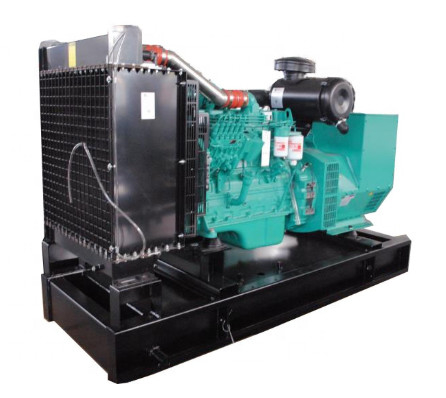

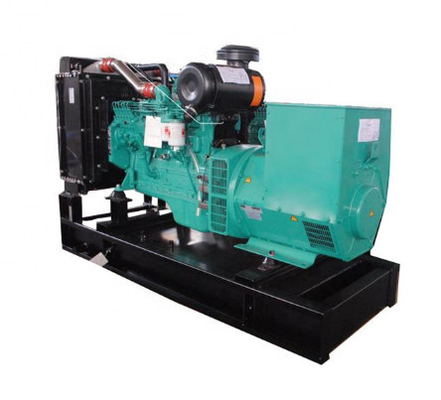

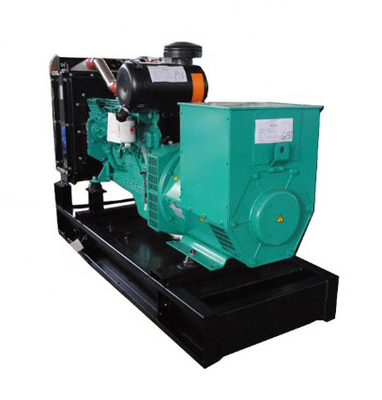

Water Cooled 6BTA 6BTA5.9-G2 100kw Emergency Cummins Diesel Generators

Name: Water Cooled 6BTA 6BTA5.9-G2 100kw Emergency Cummins Diesel Generators
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: 6BTA5.9-G2
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Cummins
Model Number:	6BTA5.9-G2
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

Cummins Diesel Generator 100kw

Rated Voltage::

230V/400V

Engine Model::

Cummins 6BTA5.9-G2

Rated Current::

180A

Frequency::

50Hz/60Hz

Alternator::

MBC27C

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

2300x860x1460mm

Genset Weight::

1350kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-C100

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

100kw Emergency Diesel Generators

6BTA 6BTA5.9-G2 Emergency Diesel Generators

100kw emergency electric generator

Product Description

Water Cooling 6BTA 6BTA5.9-G2 6 Cylinders Diesel Generator Sets With ATS

Application:
mainly apply to small tractors, farm vehicles, small generators, air compressors, inland shipping and power plant of agricultural processing (such as threshers, rice mills, milling machines, feed crusher, etc.).
Feature:

Water Cooled 6BTA 6BTA5.9-G2 100kw Emergency Cummins Diesel Generators 0

Cummins Diesel Genset Specification
Manufacturer		Jiangsu Mingbang Intelligent Technology Co.Ltd
Model		MB-C100
Prime Powder		90KW/112.5KVA
Standby Powder		100KW/125KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		180A
Genset Weight		1350KG
Length x Width x Height (Engine) (mm)		2300x860x1460mm
Voltage		400/230V
Frequency		50HZ
Cummins Engine Specification
Manufacturer		Dongfeng Cummins Engine Co. Ltd
Model		6BTA5.9-G2
Rated speed		1500rpm
Prime Powder		106KW/132.5KVA
Standby Powder		116KW/145KVA
Fuel Consumption		<=207g/KW.H
Lube oil capacity		16.4L
Bore (mm) x Stroke (mm)		102*120
Compression ratio		17.5:1
Displacement (litre)		5.9L
Coolant capacity, L		/
Configuration		6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Jiangsu Mingbang Intelligent Technology Co.Ltd
Model		MBC27C
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

About MingBang Intelligent Technology

Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai

Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.

Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!

Our customers

FAQ:

<<<<<Changsha Mingbang Intelligent Technology Co., Ltd.>>>>>>>

1.Mingbang is devoted to the R&D and manufacturing of diesel generator sets since 2005

2. Mingbang new factory covers an area of 5042 square meters located in Jiang du industrial park of Yang zhou city.

3.Mingbang quality certified by ISO9001 & ISO14001 Management System to guarantee high quality products and service.

5.Mingbang maintaining long term strategic friendship cooperation with domestic and abroad famous manufactures of Cummins, Perkins, Doosan, SDEC, Mitsubishi(SME), Deutz, Wuxi Wandi, Leroysomer, Stamford, and Marathon etc.

6.We have so wide products ranges from 5kva to 3000kva for the diesel generator set; power from 25kva to 1500kva for gas generator set;

7.Soundproof/weather proof type, container type generator set; movable, vehicle type generator sets. Regarding to the electrical control systems, it covers Auto control panel, Synchronization panels, ATS etc.

8.Mingbang can also provide customized solution due to customer requirements upon our standard product supply in order to meet the demand of market. To focus on global market, create AOSIF as international brand, and constantly improve our quality level and maximize customer profitability is AOSIF unchangeable promise and eternal pursuit.

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
