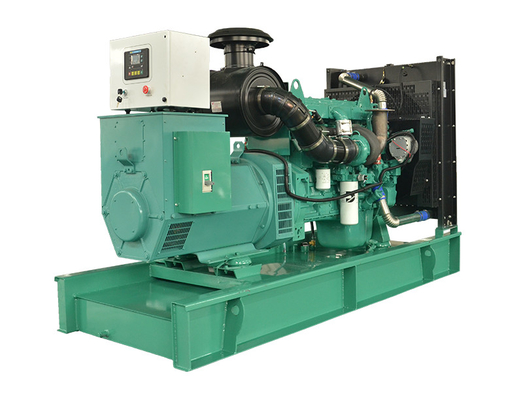

NTA855-G1B Cummins Engine 250kw 312.5kva Diesel Generator Set for Charging

Name: NTA855-G1B Cummins Engine 250kw 312.5kva Diesel Generator Set for Charging
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: NTA855-G1B
Price: 1181600.00 USD
Availability: InStock

Brand Name:	Cummins
Model Number:	NTA855-G1B
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Place Of Origin::

Jiangsu China

Brand Name::

MBKL

Rated Voltage::

230V/400V

Engine Model::

Cummins NTA855-G1B

Rated Current::

216A

Frequency::

50Hz/60Hz

Alternator::

MBC4C

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

3000×980×1670mm

Genset Weight::

2500kgs

Speed::

1500rpm/1800rpm

Model Number::

MBC4C

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

312.5kva Diesel Generators Sets

312.5kva 250kw diesel generator

NTA855-G1B Diesel Generators Sets

Product Description

250kw 312.5kva Diesel Electric Generator Powered By Cummins Diesel Engine Small Dynamo With CE ISO Certificate For Sale

250KW Cummins Diesel Genset Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-C250/280
Prime Power		250KW/312.5KVA
Standby Power		280KW/350KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		450A
Genset Weight		2500KG
Length x Width x Height (Engine) (mm)		3000×980×1670
Voltage		400/230V
Frequency		50HZ
Engine Specification
Manufacturer		Chongqing Cummins Engine Co. Ltd
Model		NTA855-G1B
Rated speed		1500rpm
Prime Power		282KW/352.5KVA
Standby Power		310KW/387.5KVA
Fuel Consumption		<=205g/KW.H
Lube oil capacity		39L
Bore (mm) x Stroke (mm)		140*152
Compression ratio		15.0:1
Displacement (litre)		14L
Coolant capacity, L		/
Configuration		6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC4C
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

Rated power	Engine	Alternator	Control panel
24kw~1500kw	Cummins	Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators	Deepsea ComAp Harsen Smartgen
36kw~18+00kw	Perkins
68kw~560kw	Volvo
20kw~200kw	Deutz
40kw-2200kw	Yuchai
50kw-2200kw	Weichai
540kw-1900kw	Mitsubishi
50kw-800kw	SDEC
650kw~2200kw	Chinese engine

NTA855-G1B Cummins Engine 250kw 312.5kva Diesel Generator Set for Charging 0

About MingBang Intelligent Technology

NTA855-G1B Cummins Engine 250kw 312.5kva Diesel Generator Set for Charging 3

Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai

Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel

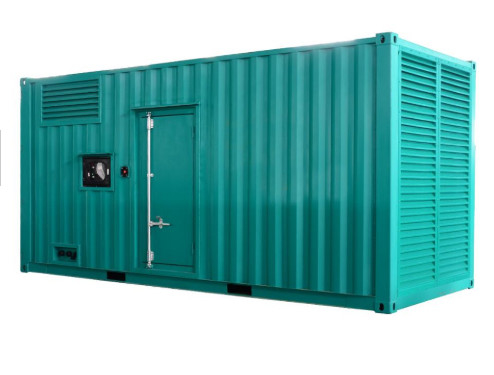

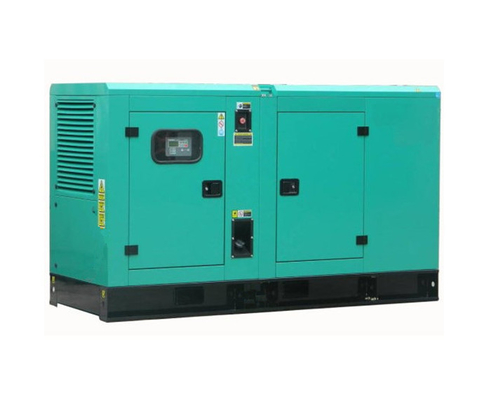

generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.

Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!

Our customers

FAQ:

Q1: How is your Warranty?

Warranty: All Mingbang Intelligent Technology are warranted in accordance with our warranty terms

for a period of 12 months from date of dispatch or 1,200 running hours from date of commissioning whichever comes earlier.

Q2: Any advantages about your company?
-- Fast delivery time
-- Good design and high quality
-- Good service after sale
-- High quality with good price help you get more benefit and beat your competitors

Q3: Can you supply OEM service?
Yes, we can offer OEM service

Q4: How about the service after sale?
We have agents spread all over the world, our service network spanning more than 50 countries so we can ensure fast and good service for our clients. We are recruiting agents, welcome you to be our friend and get a win-win cooperation .

More details for diesel generator sets ,please contact us any time

Welcome to orders~
