Cummins NTAA855-G7 375 Kva Small Diesel Generators

Name: Cummins NTAA855-G7 375 Kva Small Diesel Generators
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: NTAA855-G7
Price: 1181600.00 USD
Availability: InStock

Brand Name:	Cummins
Model Number:	NTAA855-G7
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Place Of Origin::

Jiangsu China

Brand Name::

MBKL

Rated Voltage::

230V/400V

Engine Model::

Cummins NTAA855-G7

Rated Current::

216A

Frequency::

50Hz/60Hz

Alternator::

MBC4E

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

3200×1350×1850mm

Genset Weight::

3200kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-C300

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

60Hz 375 Kva Diesel Generator

NTAA855-G7 Cummins Diesel Generator

NTAA855-G7 small diesel genset

Product Description

Diesel Generator 375kva Powered By Cummins Three Phase 50Hz/60Hz Genset

Cummins Small Diesel Genset Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-C300
Prime Powder		300KW/375KVA
Standby Powder		330KW/412.5KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		540A
Genset Weight		3000KG
Length x Width x Height (Engine) (mm)		3200×1350×1850
Voltage		400/230V
Frequency		50HZ
Engine Specification
Manufacturer		Chongqing Cummins Engine Co. Ltd
Model		NTAA855-G7
Rated speed		1500rpm
Prime Powder		343KW/428.75KVA
Standby Powder		377KW/471.25KVA
Fuel Consumption		<=205g/KW.H
Lube oil capacity		39L
Bore (mm) x Stroke (mm)		140*152
Compression ratio		14.0:1
Displacement (litre)		14L
Coolant capacity, L		/
Configuration		6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC4E
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

Rated power	Engine	Alternator	Control panel
24kw~1500kw	Cummins	Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators	Deepsea ComAp Harsen Smartgen
36kw~18+00kw	Perkins
68kw~560kw	Volvo
20kw~200kw	Deutz
40kw-2200kw	Yuchai
50kw-2200kw	Weichai
540kw-1900kw	Mitsubishi
50kw-800kw	SDEC
650kw~2200kw	Chinese engine

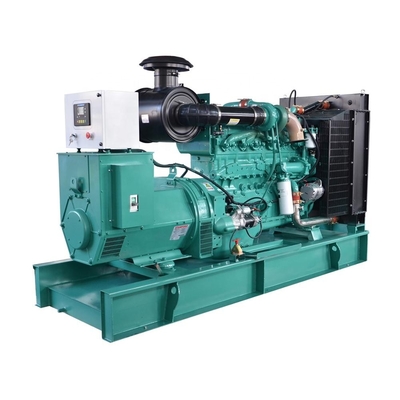

Cummins NTAA855-G7 375 Kva Small Diesel Generators 0

About MingBang Intelligent Technology

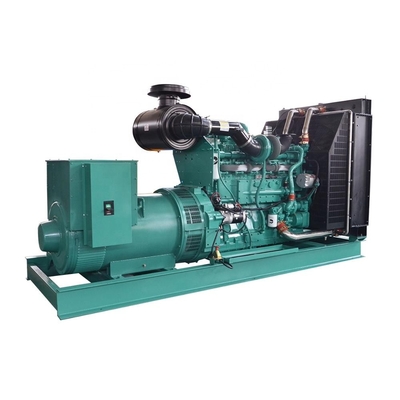

Cummins NTAA855-G7 375 Kva Small Diesel Generators 1

Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai

Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.

Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!

Our Advantages

1. Professional diesel generator manufacturer with more than 10 years' experience;
2. Higher quality lower price;
3. CE certificated, ,ISO9001-2008;
4. Global joint warranty service;

5. Fast delivery time.

More details for diesel generator sets ,please contact us any time

Welcome to orders~
