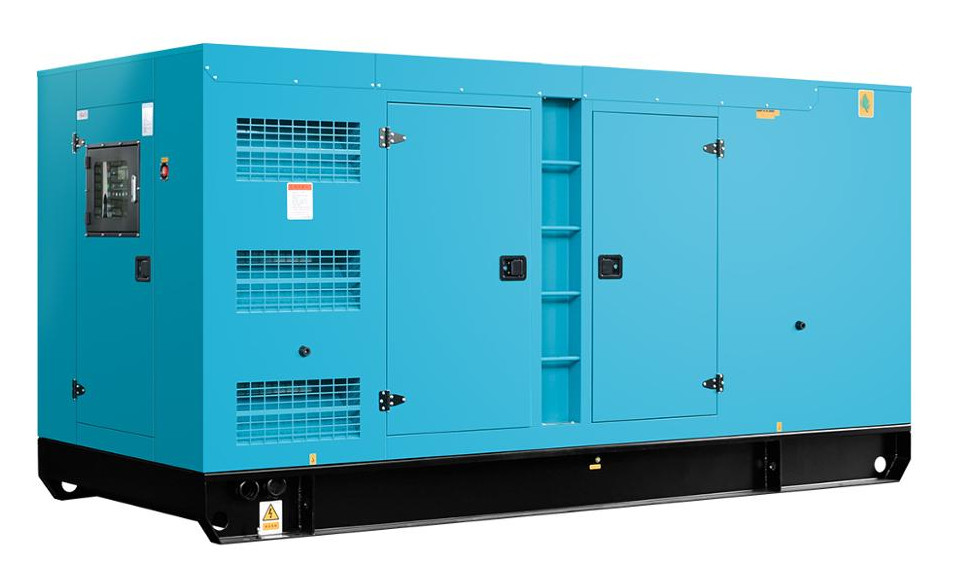

640KW Silent Diesel Generator Sets with Cummins engine

Name: 640KW Silent Diesel Generator Sets with Cummins engine
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: KTA38-GA
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Cummins
Model Number:	KTA38-GA
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

640KW Cummins Diesel Generator

Rated Voltage::

230V/400V

Engine Model::

Cummins KTA38-GA

Rated Current::

1152A

Frequency::

50Hz/60Hz

Alternator::

MBV6B

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

4200×1650×2160mm

Genset Weight::

4500kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-C640

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

500kVA Silent Diesel Generator Sets

640KW Silent Diesel Generator Sets

640KW Silent Electric Generator

Product Description

4-2200kw Cummins Diesel Generator Sets Description:

Our factory has CCEC, DCEC, VOLVO, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. MB brand alternator has been expanded all over the world. The power range of our generator is from 4KW~2200KW.

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-C640
Prime Powder		640KW/800KVA
Standby Powder		710KW/887.5KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		1152A
Genset Weight		4500KG
Length x Width x Height (Engine) (mm)		4200×1650×2160
Voltage		400/230V
Frequency		50HZ
Cummins Engine Specification
Manufacturer		Chongqing Cummins Engine Co. Ltd
Model		KTA38-GA
Rated speed		1500rpm
Prime Powder		711KW/888.75KVA
Standby Powder		789KW/986.25KVA
Fuel Consumption		<=213g/KW.H
Lube oil capacity		135L
Bore (mm) x Stroke (mm)		159*159
Compression ratio		14.5:1
Displacement (litre)		37.8L
Coolant capacity, L		/
Configuration		12 in V type ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Stamford Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBV6B
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless
