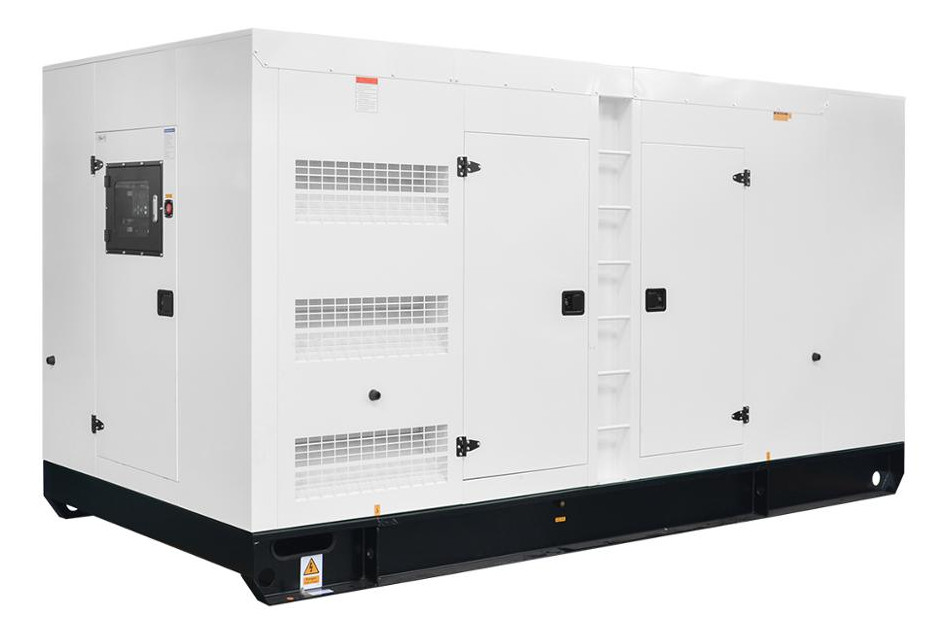

Cummins 800kw 1000kva KTA38-G2A Engine Silent Power Generator

Name: Cummins 800kw 1000kva KTA38-G2A Engine Silent Power Generator
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: KTA38-G2A
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Cummins
Model Number:	KTA38-G2A
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Place Of Origin::

Jiangsu China

Brand Name::

MBKL

Rated Voltage::

230V/400V

Engine Model::

Cummins KTA38-G2A

Rated Current::

1440A

Frequency::

50Hz/60Hz

Alternator::

MBV6B

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

4800×1750×2360mm

Genset Weight::

6200kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-C640

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

KTA38-G2A Engine Silent Power Generator

1000kva Silent Power Generator

800kw Silent Power Generator

Product Description

30kVA 50kVA 100kVA 120kVA 200kVA 500kVA Cummins Motor Generator Silent Open Soundproof Three Phase Denyo Electric Diesel

Cummins Diesel Generator Sets Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-C640
Prime Powder		728KW/910KVA
Standby Powder		800KW/1000KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		1310.4A
Genset Weight		6200KG
Length x Width x Height (Engine) (mm)		4800×1750×2360
Voltage		400/230V
Frequency		50HZ
Cummins Engine Specification
Manufacturer		Chongqing Cummins Engine Co. Ltd
Model		KTA38-G2A
Rated speed		1500rpm
Prime Powder		813KW/1016.25KVA
Standby Powder		895KW/1118.75KVA
Fuel Consumption		<=213g/KW.H
Lube oil capacity		135L
Bore (mm) x Stroke (mm)		159*159
Compression ratio		14.5:1
Displacement (litre)		38.7L
Coolant capacity, L		/
Configuration		12 in V type ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Smartgen Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBV6B
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

Cummins 800kw 1000kva KTA38-G2A Engine Silent Power Generator 0
About MingBang Intelligent Technology

Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai

Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.
Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!

Our customers

FAQ:

Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: What is your MOQ of this item?
A: 1 set.
Q3: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: What is your company's available production capacity?
A: 50 Sets per Month.
Q5: What is the lead time?
A: 2-7 working days after received the 30%T/T deposit.
Q6: What are your payment terms?
A: 30% TT as deposit,70% TT before Shipment.
Q7: Does your generator have global warranty?
A:Yes, most of our products such as Cummins,Perkins and so on enjoy the global warranty service.
And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service.

More details for diesel generator sets ,please contact us any time
