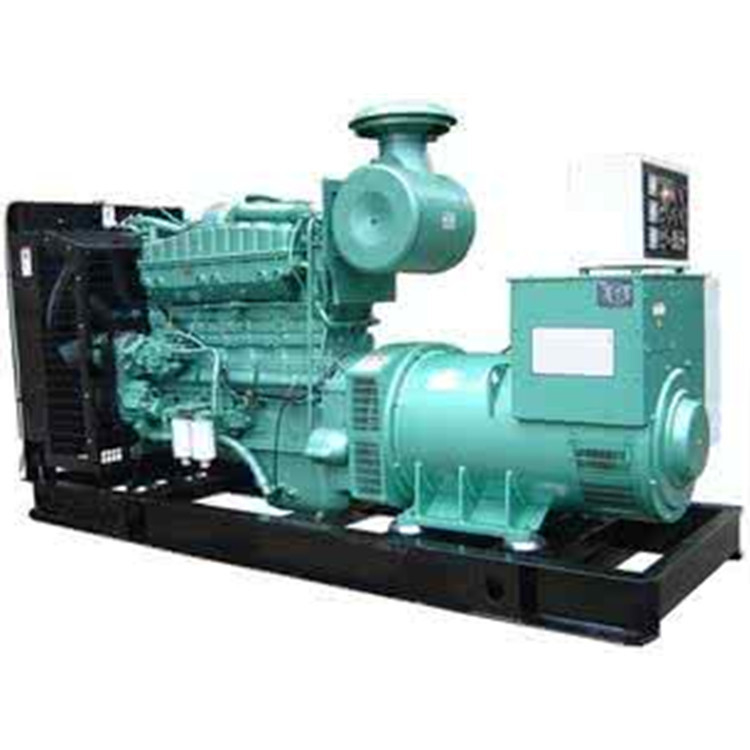

Cummins Diesel Generators Brushless 1180KW 1475KVA High Quality

Name: Cummins Diesel Generators Brushless 1180KW 1475KVA High Quality
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: KTA50-G8
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Cummins
Model Number:	KTA50-G8
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Place Of Origin::

Jiangsu China

Brand Name::

MBKL

Rated Voltage::

230V/400V

Engine Model::

Cummins KTA50-G8

Rated Current::

1440A

Frequency::

50Hz/60Hz

Alternator::

MBV7B

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

5000×2300×2650mm

Genset Weight::

14000kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-C1160

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

1450KVA Emergency Diesel Generators

1160KW Emergency Diesel Generators

1450KVA brushless diesel generator

Product Description

High Quality Brushless Diesel Generator Sets With Cummins Engine 1160KW 1450KVA Smartgen Control System Soundproof Type

Cummins Diesel Genset Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-C1100
Prime Powder		1180KW/1475KVA
Standby Powder		1320KW/1650KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		2088A
Genset Weight		14000KG
Length x Width x Height (Engine) (mm)		5000×2300×2650
Voltage		400/230V
Frequency		50HZ
Cummins Engine Specification
Manufacturer		Chongqing Cummins Engine Co. Ltd
Model		KTA50-GS8
Rated speed		1500rpm
Prime Powder		1287KW/1608.75KVA
Standby Powder		1429KW/1786.25KVA
Fuel Consumption		<=204g/KW.H
Lube oil capacity		204L
Bore (mm) x Stroke (mm)		159*159
Compression ratio		13.9:1
Displacement (litre)		50.3L
Coolant capacity, L		/
Configuration		16 in V type ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBV7B
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

Main Features
1)Easy operation,simple maintenance, Low cost.

2) Compact structure, high-strength chassis,beautiful design.

3) Good performance damping system, coperate more conveniently.

4) Compliance with international electrical safety standards of electrical system.

5) continue running 8 hours base tank.

6) High-performance maintenance-free batteries with isolation switch,it is more safety.

7) 50℃ radiator .

8) Forklift bottom hole design, easy to transport.

9) Industrial type muffler.

10) Noise reduction structure,Low overall noise.

11) Convenient power output interface and ATS Interface,satisfy customer's requires.

12) IP56 (control system).

13)The personalized design for user.
