KTA50-G15 Silent Diesel Generator Sets with Cummins engine

Name: KTA50-G15 Silent Diesel Generator Sets with Cummins engine
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: KTA50-G15
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Cummins
Model Number:	KTA50-G15
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Place Of Origin::

Jiangsu China

Brand Name::

MBKL

Rated Voltage::

230V/400V

Engine Model::

Cummins KTA50-G15

Rated Current::

1440A

Frequency::

50Hz/60Hz

Alternator::

MBV7D

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

5970×2775×3310mm

Genset Weight::

13770kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-1500

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

2200kw Silent Diesel Generator Sets

KTA50-G15 Silent Diesel Generator Sets

2200kw Silent Electric Generator

Product Description

Water Cooled 4-2200kw Open Diesel Generator Set With Cummins/Perkins Engine Container Marine Type Diesel Generators Set

Cummins Diesel Genset Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-1500
Standby Powder		1500KW/1875KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		2700A
Genset Weight		13770KG
Length x Width x Height (Engine) (mm)		5970×2775×3310
Voltage		400/230V
Frequency		50HZ
Cummins Engine Specification
Manufacturer		Chongqing Cummins Engine Co. Ltd
Model		KTA50-G15
Rated speed		1500rpm
Standby Powder		1656KW/2070KVA
Fuel Consumption		<=204g/KW.H
Lube oil capacity		204L
Bore (mm) x Stroke (mm)		159*159
Compression ratio		14.9:1
Displacement (litre)		50.3L
Coolant capacity, L		/
Configuration		16 V type ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Stamford Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBV7D
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

KTA50-G15 Silent Diesel Generator Sets with Cummins engine 0

Main Features
1)Easy operation,simple maintenance, Low cost.

2) Compact structure, high-strength chassis,beautiful design.

3) Good performance damping system, coperate more conveniently.

4) Compliance with international electrical safety standards of electrical system.

5) continue running 8 hours base tank.

6) High-performance maintenance-free batteries with isolation switch,it is more safety.

7) 50℃ radiator .

8) Forklift bottom hole design, easy to transport.

9) Industrial type muffler.

10) Noise reduction structure,Low overall noise.

11) Convenient power output interface and ATS Interface,satisfy customer's requires.

12) IP56 (control system).

13)The personalized design for user.

Mingbang Diesel Generator Set Factory

KTA50-G15 Silent Diesel Generator Sets with Cummins engine 1

About MingBang Intelligent Technology

Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai

Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel

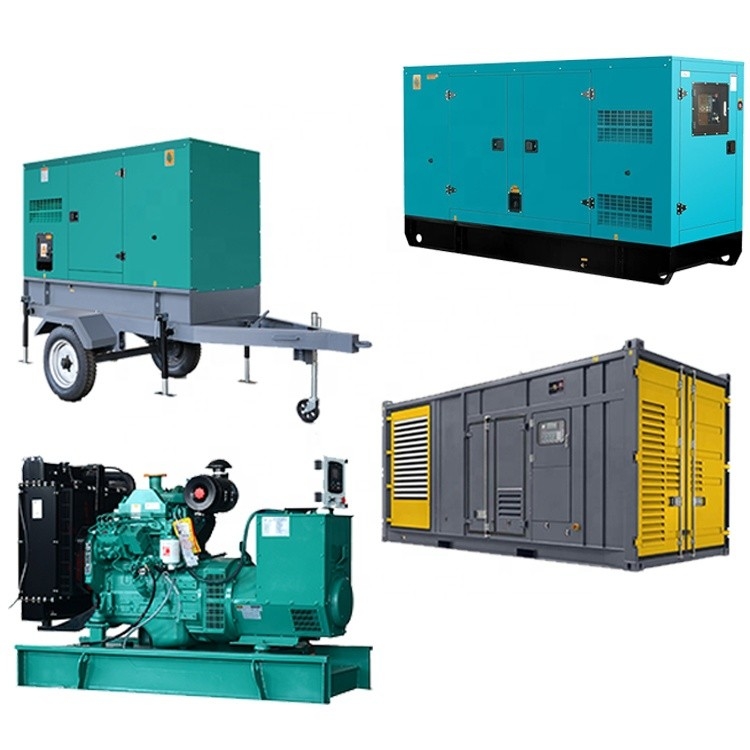

generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.

Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!
