Perkins Diesel Generator Set
Created with Pixso.

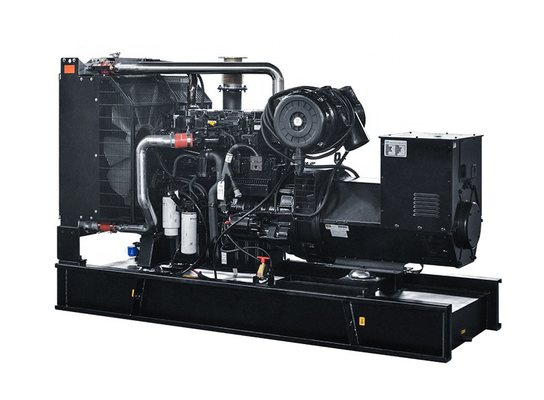

1106A-70TAG3 60Hz 144kw 180kva Perkins Diesel Generators

1106A-70TAG3 60Hz 144kw 180kva Perkins Diesel Generators

Brand Name: Perkins
Model Number: 1106A-70TAG3
MOQ: 1PC
Price: Price:Negotiable
Payment Terms: Western Union, T/T, D/P, L/C
Supply Ability: 200pcs/month
Detail Information
Place of Origin:
China
Certification:
ISO 9001:14000,CE,EACC
Place Of Origin::
Jiangsu China
Brand Name::
MBKL
Rated Voltage::
230V/400V
Engine Model::
Perkins 1106A-70TAG3
Rated Current::
271A
Frequency::
50Hz/60Hz
Alternator::
MBC27H
Control Panel::
Deepsea / Harsen / Smartgen
Certificate::
ISO 9001:14000,CE
ATS::
Optional
Delivery::
7-30 Days
Warranty Time::
1 Year
Genset Dimension::
2300×880×1500mm
Genset Weight::
1500kgs
Speed::
1500rpm/1800rpm
Model Number::
MB-P108
Packaging Details:
Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.
Supply Ability:
200pcs/month
Highlight:

180kva Perkins Diesel Generators

,

144kw Perkins Diesel Generators

,

1106A-70TAG3 Perkins Diesel Generators

Product Description

Hot Sale 144kw 180kva Power With Perkins Engine 1106A-70TAG3 60Hz Super Silent Trailer Diesel Generator Soundproof Price



Perkins Diesel Genset Specification
Manufacturer Changsha Mingbang Intelligent Technology Co.Ltd
Model MB-P150
Prime Powder 144KW/180KVA
Power Factor COSΦ=0.8(lagging)
Max. Output current 271A
Genset Weight 1500kg(Net)
Length x Width x Height (Engine) (mm) 2300×880×1500
Voltage 400/230V
Frequency 50HZ
Perkins Engine Specification
Manufacturer England Perkins Engine Co. Ltd
Model 1106A-70TAG3
Rated speed 1500rpm
Prime Powder 185.5KW/231.875KVA
Fuel Consumption <=205g/KW.H
Lube oil capacity 24L
Bore (mm) x Stroke (mm) 100×127 mm
Compression ratio 16.0:1
Displacement (litre) 8.3L
Coolant capacity, L 21L
Configuration 6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling Liquid Cooled
Governor type Electronic
Starting voltage 24 Volts DC
Filtration system Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer Changsha Mingbang Intelligent Technology Co.Ltd
Model MBC27H
Voltage Regulator AVR
Voltage adjust range ±1%
Rated Voltage/Frequency/Factor 400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency 5%
No-load Voltage Adjust Range >=95%-105%
Insulation Class H
IP Protection 22
Excitation Type Blushless



1106A-70TAG3 60Hz 144kw 180kva Perkins Diesel Generators 01106A-70TAG3 60Hz 144kw 180kva Perkins Diesel Generators 1

Main Features

Product feature of Low Noise Electric Start Diesel Generator Perkins 144kw:

1. High strength base frame material can significantly reduce the vibration during operation.

2. Marvelous spray coating technology can effectively prevent against rain and noise.

3. Special sound absorbing material and system can maximally reduce noise to 65dBA/7m



  • 24 hours continuous stable power supply, in extreme or normal temperatures from -10 °C to 50 °C.

Sutech Power generators are design to work 24*7 in extreme temperature conditions with minimum maintenance requirement.

  • In some cases CHP & CCHP (Combined heat and power/ Combined cooling heat and Power) to utilized heat.

Sutech Power specially designs Diesel and Gas CHP/CCHP Power generators to provide hot water or steam as well as Power.

  • Lower noise level is important.

Sutech power generators are made to be environment friendly with low emission and lower noise level

  • Reliable AMF & ATS System (Auto mains failure & Auto transfer System) which can start and stop generators automatically with load transfer in case of city supply on or off.



Mingbang Diesel Generator Set Factory

1106A-70TAG3 60Hz 144kw 180kva Perkins Diesel Generators 2



About MingBang Intelligent Technology

1106A-70TAG3 60Hz 144kw 180kva Perkins Diesel Generators 3



Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai



Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.


Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!



Our customers
1106A-70TAG3 60Hz 144kw 180kva Perkins Diesel Generators 4

Q1: How is your Package & Payment & Delivery Date & Warranty?

A.1) Package: Plastic fiMB (free of charge) or wooden case (add USD200 for wooden)

A.2) Payment: by 30% T/T as deposit, 70% balance should be paid 10 days before shipment. Or 100% L/C

at sight.

A.3) Delivery: 7-25 days after we get the down payment.

A.4) Warranty: Guarantee for one year or 1000 running hours (whichever come first shall apply)

from

installed date.During the guarantee period. such as Cummins or Perkins generators. they are international

brands and the after-sale service is worldwide. you can contact your country's after-sale or contact us for

repairment. when replacing spare parts, please kindly take some pictures to describe the problems. we will

solve it a.s.a.p.

Q2: Any advantages about your company?

Answers: MB Brand Diesel Generators with following advantages:

----MOQ is 1 set and we could finis more than 100sets/month

---- Middle-high Positioning;

---- 7-25days Lead-time;

---- Got the ISO and CE certificate; OEM Certifications

---- High quality with the best price can help you get more benefit and beat your competitors;

---- Powered by Cummins, Perkins, Detuz etc. famous engine brands optional;

---- Open, Soundproof Canopy, Container, Trailer etc. for your choose.

Q3: Any advantage of Digital Control Panel?

1) Controller Brand: Smartgen, Deepsea,ComAp
2) Control Panel: English interface,LED screen and touch buttons.
3) Main Functions:
1- Display loading power, voltage, current, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over

battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low

oil shutdown.



More details for diesel generator sets ,please contact us any time



Welcome to orders~
