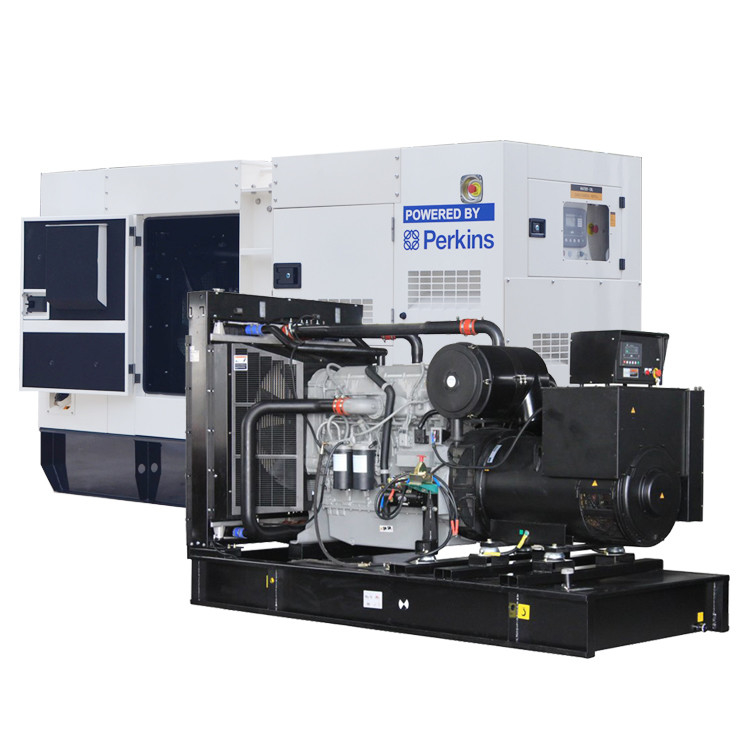

280KW Small Diesel Genset Perkins Diesel Generator Sets

Name: 280KW Small Diesel Genset Perkins Diesel Generator Sets
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: 2206C-E13TAG2
Price: 3,000.00 USD
Availability: InStock

Brand Name:	Perkins
Model Number:	2206C-E13TAG2
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

Air Cooled Diesel Engine 280KW

Rated Voltage::

230V/400V

Engine Model::

Perkins 2206C-E13TAG2

Rated Current::

450A

Frequency::

50Hz/60Hz

Alternator::

MBC4D

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

3070×1120×1960mm

Genset Weight::

2950kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-P250

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

280KW Small Diesel Genset

2206C-E13TAG2 Engine Small Diesel Genset

280KW small diesel engine generator

Product Description

Hot Sale Small Generator Sets 280KW Emergency Diesel Generator Set Power Air Cooled Diesel Engine Standby Power With ATS

Small Diesel Generator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-P280
Prime Powder		280KW/350KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		504A
Genset Weight		2950kg(Net)
Length x Width x Height (Engine) (mm)		3070×1120×1960
Voltage		400/230V
Frequency		50HZ
Perkins Engine Specification
Manufacturer		England Perkins Engine Co. Ltd
Model		2206C-E13TAG2
Rated speed		1500rpm
Prime Powder		305KW/381.25KVA
Fuel Consumption		<=216g/KW.H
Lube oil capacity		40L
Bore (mm) x Stroke (mm)		130*157 mm
Compression ratio		16.3:1
Displacement (litre)		12.5L
Coolant capacity, L		51.4L
Configuration		6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC4D
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

280KW Small Diesel Genset Perkins Diesel Generator Sets 0

Main Features

Product feature of Low Noise Electric Start Diesel Generator Perkins 250kw:

1. High strength base frame material can significantly reduce the vibration during operation.

2. Marvelous spray coating technology can effectively prevent against rain and noise.

3. Special sound absorbing material and system can maximally reduce noise to 65dBA/7m

Mingbang Diesel Generator Set Factory

280KW Small Diesel Genset Perkins Diesel Generator Sets 3

About MingBang Intelligent Technology

Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai

Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.

Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!

Our customers

Our Advantages

1. Professional diesel generator manufacturer with more than 10 years' experience;
2. Higher quality lower price;
3. CE certificated, ,ISO9001-2008;
4. Global joint warranty service;

5. Fast delivery time.

Your further inquiry will be welcome!!
