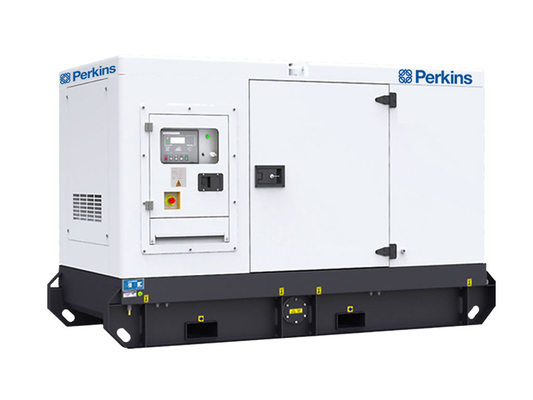

4006-23TAG2A Engine 600kw Perkins Diesel Generators

Name: 4006-23TAG2A Engine 600kw Perkins Diesel Generators
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: 4006-23TAG2A
Price: 239,000.00 USD
Availability: InStock

Brand Name:	Perkins
Model Number:	4006-23TAG2A
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union, T/T, D/P, L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

Perkins Diesel Generator

Rated Voltage::

230V/400V

Engine Model::

Perkins 4006-23TAG2A

Rated Current::

1152A

Frequency::

50Hz/60Hz

Alternator::

MBV6A

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

4015×1710×2120mm

Genset Weight::

5623kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-P640

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

600kw Perkins Diesel Generators

4006-23TAG2A perkins engine generator

600kw perkins dg set

Product Description

Our factory has CCEC, DCEC, VOLVO, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. MB brand alternator has been expanded all over the world. The power range of our generator is from 4KW~2200KW.

4006-23TAG2A Engine 600kw Perkins Diesel Generators 0

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-P640
Prime Powder		640KW/800KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		1152A
Genset Weight		5623kg(Net)
Length x Width x Height (Engine) (mm)		4015×1710×2120
Voltage		400/230V
Frequency		50HZ
Perkins Engine Specification
Manufacturer		England Perkins Engine Co. Ltd
Model		4006-23TAG2A
Rated speed		1500rpm
Prime Powder		705KW/881.25KVA
Fuel Consumption		<=210g/KW.H
Lube oil capacity		115L
Bore (mm) x Stroke (mm)		160*190mm
Compression ratio		13.6:1
Displacement (litre)		23L
Coolant capacity, L		105L
Configuration		6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Stamford Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBV6B
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

4006-23TAG2A Engine 600kw Perkins Diesel Generators 1

Diesel Generators Sets Advantages

(1)The silent canopy we use cold-rolled sheet, all positions are stronger.

(2)Our spraying plastics all go through pre-treatment of pickling and phosphating, so that the surface of the painting will not change color even if placed outside for five years.

(3)Canopy color painted by customer’s requirement.

(4)Strict test including 50% load,75% load,100% load and 110% Load .

(5)Forklift mouth in base frame for easy loading and discharging.

(6)Logo made by customer's requirement if order quantity ≥10units or a full container.

About MingBang Intelligent Technology

4006-23TAG2A Engine 600kw Perkins Diesel Generators 3

Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai

Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.

Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!

Our customers

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
