products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Perkins Diesel Generator Set
Created with Pixso.

Soundproof Perkins Diesel Power Generator 1000KVA 800KW for Construction Site

Soundproof Perkins Diesel Power Generator 1000KVA 800KW for Construction Site

Brand Name: Perkins
Model Number: 4008TAG2
MOQ: 1Set
Price: Price:Negotiable
Payment Terms: Western Union, T/T, D/P, L/C
Supply Ability: 200pcs/month
Detail Information
Place of Origin:
China
Certification:
ISO 9001:14000,CE,EACC
Brand Name::
MBKL
Rated Voltage::
230V/400V
Rated Current::
1472.4A
Frequency::
50Hz/60Hz
Control Panel::
Deepsea / Harsen / Smartgen
ATS::
Optional
Delivery::
7-30 Days
Warranty Time::
1 Year
Genset Dimension::
4860×2050×2100mm
Genset Weight::
7315kgs
Speed::
1500rpm/1800rpm
Model Number::
MB-P800
Packaging Details:
Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.
Supply Ability:
200pcs/month
Highlight:

4008TAG2 1000 Kva Perkins Generator

,

4008TAG2 perkins engine generator

,

4008TAG2 perkins soundproof generator

Product Description

 Soundproof Perkins Diesel Power Generator 1000KVA 800KW for Construction Site



Silent Diesel Generator Specification

Manufacturer Changsha Mingbang Intelligent Technology Co.Ltd
Model MB-P800
Prime Powder 818KW/1022.5KVA
Power Factor COSΦ=0.8(lagging)
Max. Output current 1472.4A
Genset Weight 7315kg(Net)
Length x Width x Height (Engine) (mm) 4860×2050×2100
Voltage 400/230V
Frequency 50HZ
Perkins Engine Specification
Manufacturer England Perkins Engine Co. Ltd
Model 4008TAG1A
Rated speed 1500rpm
Prime Powder 899KW/1123.75KVA
Fuel Consumption <=206g/KW.H
Lube oil capacity 153L
Bore (mm) x Stroke (mm) 160*190mm
Compression ratio 13.6:1
Displacement (litre) 23L
Coolant capacity, L 105L
Configuration 8 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling Liquid Cooled
Governor type Electronic
Starting voltage 24 Volts DC
Filtration system Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer Changsha Mingbang Intelligent Technology Co.Ltd
Model MBV6B
Voltage Regulator AVR
Voltage adjust range ±1%
Rated Voltage/Frequency/Factor 400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency 5%
No-load Voltage Adjust Range >=95%-105%
Insulation Class H
IP Protection 22
Excitation Type Blushless

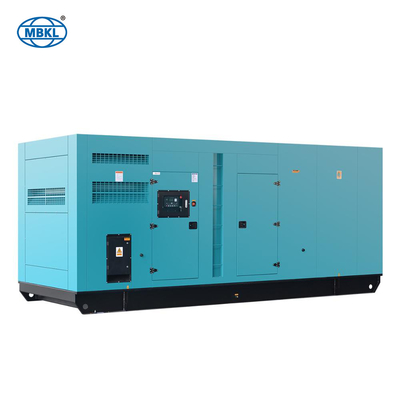

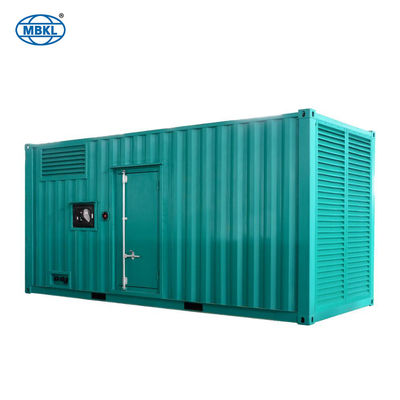

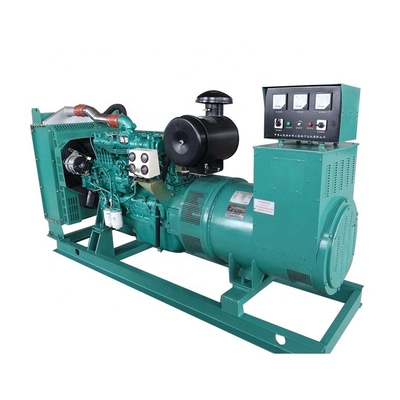

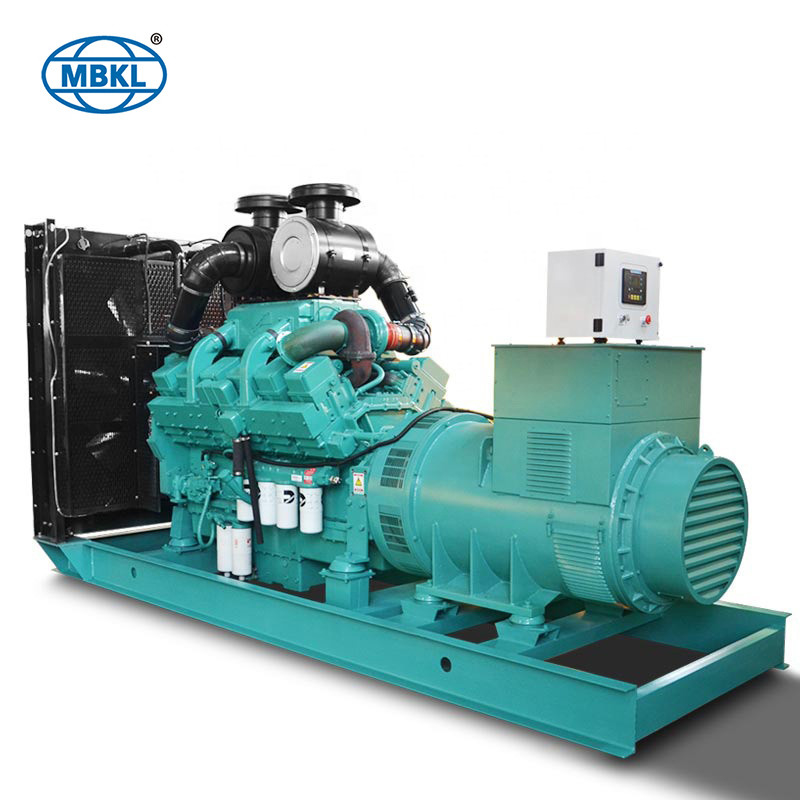

Soundproof Perkins Diesel Power Generator 1000KVA 800KW for Construction Site 0Soundproof Perkins Diesel Power Generator 1000KVA 800KW for Construction Site 1

Why Us?

At present, thousands of Startlight generator sets are being reliably operated in fields like telecommunications, banking, security industry, airports, hospital, transportation, oil fields, military industry and the clients have been distributed around the globe. All staff in Startlight are sparing no efforts to make the Startlight brand a symbol for reliable quality, advanced technology, first-class performance, an environment friend, and long operating life.

We believe that the consideration is as important as innovative technology. The leading product is always based on the leading supporting services. We shall follow the philosophy to meet customer's demands and offer customers the genuine spare parts, technical consulting and installation guide, make equipment commissioning free of charge, rebuild generation set and train the person.

Services:
Before service
Our professional engineer will give you some consultation of technology and related planning before sale, such as selection of equipment, supporting facilities, the design of equipment room. We can also answer and solve the using problem you faced.

After sale service

  1. free guide to install and debugging
  2. Free training and consult
  3. Guiding how to protect your equipment
  4. We will set up clients' document, tracking service, regular inspection, maintenance for life
  5. We offers pure perennial spare parts and maintenance engineers will be ready to provide.



About MingBang Intelligent Technology

Soundproof Perkins Diesel Power Generator 1000KVA 800KW for Construction Site 2



Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai



Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.


Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.

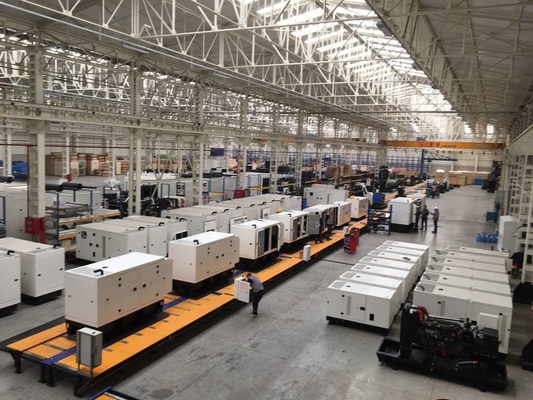

Weclome to visit our factory!



Our customers
Soundproof Perkins Diesel Power Generator 1000KVA 800KW for Construction Site 3












Welcome to inquiry~
