Perkins 1500KVA 1200KW Three Phase or Single Phase Diesel Generators

Name: Perkins 1500KVA 1200KW Three Phase or Single Phase Diesel Generators
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: 4012-46TAG2A
Price: 239,000.00 USD
Availability: InStock

Brand Name:	Perkins
Model Number:	4012-46TAG2A
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Place Of Origin::

Jiangsu China

Brand Name::

MBKL

Rated Voltage::

230V/400V

Engine Model::

Perkins 4012-46TAG2A

Rated Current::

2160A

Frequency::

50Hz/60Hz

Alternator::

MBV7B

Control Panel::

Deepsea / Harsen / Smartgen

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year Or 1000hrs

Genset Dimension::

5090×2190×2450mm

Genset Weight::

10670kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-P1200

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

1200KW Three Phase Ac Generator

2160A Three Phase Ac Generator

1200KW 3 phase ac generator

Product Description

Perkins Diesel Generator Description:

Prime Power 1200KW 1500KVA 60Hz Perkins diesel generator

Mingbang Power Perkins Diesel Generating Set, power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, for more than 80 years, UK Perkins has been the world's leading supplier of diesel and gas engines in the 4 - 1800 kW market. Perkins key strength is its ability to tailor engines precisely to meet customers' requirements, which is why its engine solutions are trusted by more than 1,000 leading manufacturers in the industrial, construction, agricultural, materials handling and electrical power generation markets.

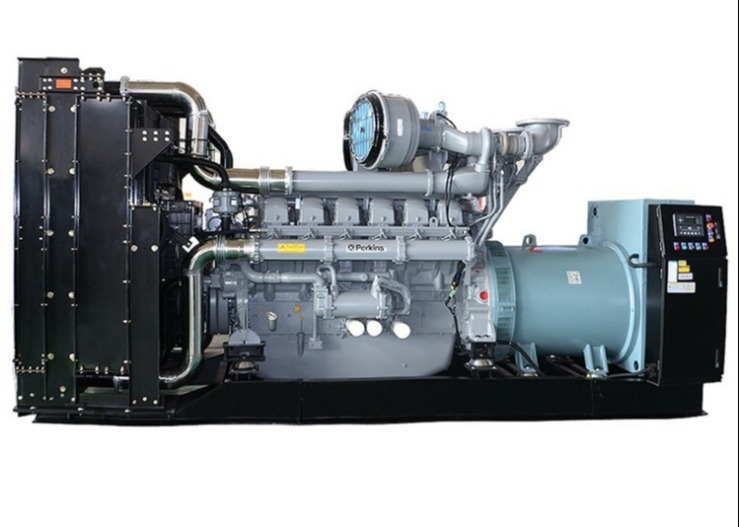

Perkins 1500KVA 1200KW Three Phase or Single Phase Diesel Generators 0

Perkins diesel generators specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-P1200
Prime Powder		1200KW/1500KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		2160A
Genset Weight		10670kg(Net)
Length x Width x Height (Engine) (mm)		5090×2190×2450
Voltage		400/230V
Frequency		50HZ
Perkins Engine Specification
Manufacturer		England Perkins Engine Co. Ltd
Model		4012-46TAG2A
Rated speed		1500rpm
Prime Powder		1331KW/1663.75KVA
Fuel Consumption		<=208g/KW.H
Lube oil capacity		178L
Bore (mm) x Stroke (mm)		160*190mm
Compression ratio		13.6:1
Displacement (litre)		45.8L
Coolant capacity, L		196L
Configuration		12 V type ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Stamford Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBV7B
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

Perkins 1500KVA 1200KW Three Phase or Single Phase Diesel Generators 1

About MingBang Intelligent Technology

Perkins 1500KVA 1200KW Three Phase or Single Phase Diesel Generators 4

Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai

Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.

Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!

Our customers

Air Cooled 1200KW Open Type Diesel Generator Set Perkins Doosan Engine Three Phase AC Generator Industrial Diesel Genset

Warranty Service

One year or 1000 hours' guarantee time for all of our offering products will be offered. During Warranty time,offer free Spareparts caused by products' quality problem.

OEM Service

We provide OEM Service for customers:

1.Offering professional designing and manufacturing according to customer's request.

2.Making customer's Logol under Authority.

3.Operation and Maintenance could be neutal according to customer's Specical request.

4.Technical Instruction and Sales' supporting to customers.

Welcome to our factory!
