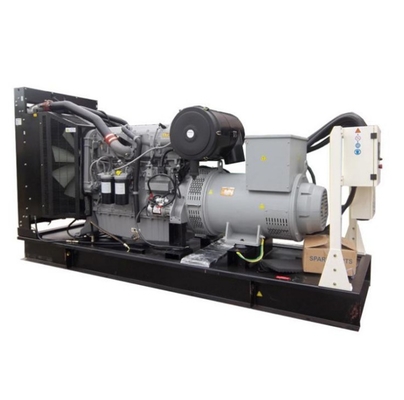

4016 Series 16 Cylinders 1800kw Perkins Diesel Generators

Name: 4016 Series 16 Cylinders 1800kw Perkins Diesel Generators
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: 4016-61TRG3
Price: 239,000.00 USD
Availability: InStock

Brand Name:	Perkins
Model Number:	4016-61TRG3
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union, T/T, D/P, L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

1800kw Perkins Diesel Generators

Rated Voltage::

230V/400V

Engine Model::

Perkins 4016-61TRG3

Rated Current::

3240A

Frequency::

50Hz/60Hz

Alternator::

MBV7G

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

6000*2700*3050mm

Genset Weight::

15000kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-P1800

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

4016 Series Perkins Diesel Generators

1800kw Perkins Diesel Generators

Product Description

Perkins Diesel Generator Description:
Prime Power 1600KW 2000KVA 60Hz Perkins diesel generator
Mingbang Power Perkins Diesel Generating Set, power ranging from 45kVa up to 2250kVa. It has Cummins,Perkins,Volvo,Deutz, Yuchai,SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. MB brand alternator has been expanded all over the world. The power range of our generator is from 4KW~2200KW.
4016 Series 16 Cylinders 1800kw Perkins Diesel Generators 0

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-P1800
Prime Powder		1800KW/2250KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		3240A
Genset Weight		15000kg(Net)
Length x Width x Height (Engine) (mm)		600027003050
Voltage		400/230V
Frequency		50HZ
Perkins Engine Specification
Manufacturer		England Perkins Engine Co. Ltd
Model		4016-61TRG3
Rated speed		1500rpm
Prime Powder		1975KW/2468.75KVA
Fuel Consumption		<=196g/KW.H
Lube oil capacity		280L
Bore (mm) x Stroke (mm)		160*190mm
Compression ratio		13.6:1
Displacement (litre)		68L
Coolant capacity, L		380L
Configuration		16V type ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Stamford Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBV7G
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

4016 Series 16 Cylinders 1800kw Perkins Diesel Generators 1

4016 Series 16 Cylinders 1800kw Perkins Diesel Generators 2

About MingBang Intelligent Technology

4016 Series 16 Cylinders 1800kw Perkins Diesel Generators 3

Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai

Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.
Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!

Our customers

Any advantages about your company?

Answers: MingBang Brand Diesel Generators with following advantages:

----MOQ is 1 set and we could finis more than 100sets/month

---- Middle-high Positioning;

---- 7-25days Lead-time;

---- Got the ISO and CE certificate; OEM Certifications

---- High quality with the best price can help you get more benefit and beat your competitors;

---- Powered by Cummins, Perkins, Detuz etc. famous engine brands optional;

---- Open, Soundproof Canopy, Container, Trailer etc. for your choose.

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
