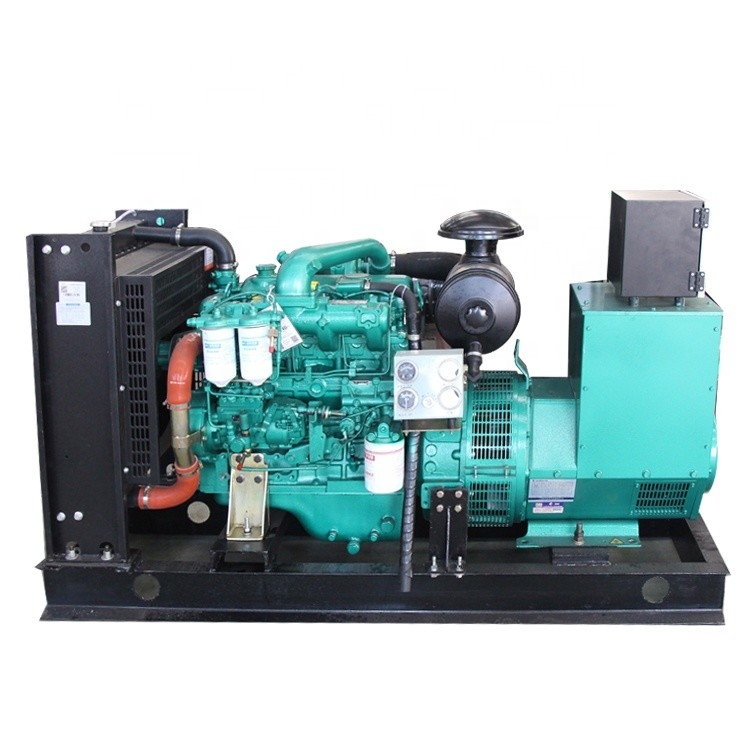

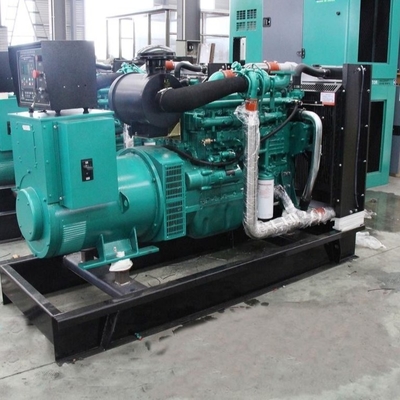

40kw 50kva YC4D60-D21 YUCHAI Diesel Generator Set

Name: 40kw 50kva YC4D60-D21 YUCHAI Diesel Generator Set
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: YC4D60-D21
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Yuchai
Model Number:	YC4D60-D21
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union, T/T, D/P, L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

40KW Yuchai Diesel Generator

Rated Voltage::

230V/400V

Engine Model::

Yuchai YC4D60-D21

Rated Current::

72A

Frequency::

50Hz/60Hz

Alternator::

MBC22B

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

1800*700*1150mm

Genset Weight::

800kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-40

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

50kva YUCHAI Diesel Generator Set

40kw YUCHAI Diesel Generator Set

40kw yuchai genset

Product Description

Yuchai Diesel Generator Sets Description:

40kw rainproof electric generator

With YUCHAI engine YC4D60-D21

Less diesel consumption

Turbocharge aspiration

Reasonable and reliable emergency power generation

Warranty 12 months or 1000 hours warranty time

40kw 50kva YC4D60-D21 YUCHAI Diesel Generator Set 0

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-40
Prime Powder		80KW/100KVA
Standby Powder		95KW/118.75KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		72A
Genset Weight		800kg(Net)
Length x Width x Height (Engine) (mm)		18007001150
Voltage		400/230V
Frequency		50HZ
Yuchai Engine Specification
Manufacturer		Guangxi Yuchai Machinery Group Co., Ltd
Model		YC4D60-D21
Rated speed		1500rpm
Prime Powder		40KW/50KVA
Standby Powder		44KW/55KVA
Fuel Consumption		<=240g/KW.H
Lube oil capacity		9-11L
Bore (mm) x Stroke (mm)		108*115mm
Compression ratio		17.5:1
Displacement (litre)		4.214
Coolant capacity, L		/
Configuration		4 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC22B
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

40kw 50kva YC4D60-D21 YUCHAI Diesel Generator Set 1

About MingBang Intelligent Technology

40kw 50kva YC4D60-D21 YUCHAI Diesel Generator Set 3

Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai

Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.
Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!

Our customers

Yuchai Diesel Electric Generator Set AC Three Phase 40kw 50kva YUCHAI Small Rainproof Electric Generator

Free loading capacity analysis
Free technology consulations
Free testing and debuging
12months or 1000hours warranty service
Spare parts offered
OEM service buyer label offered
24/7 on-line technical service

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
