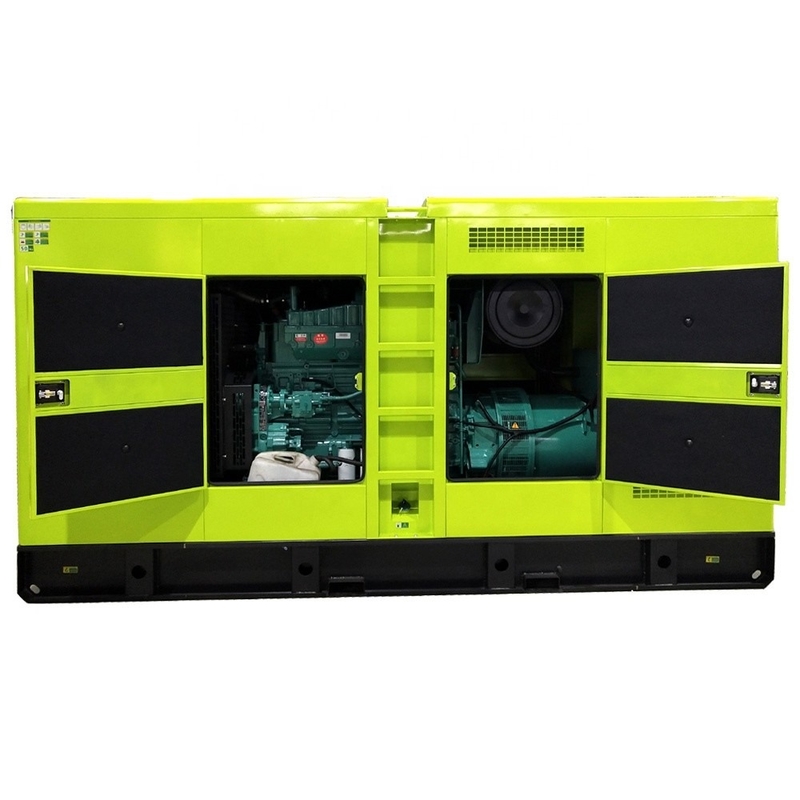

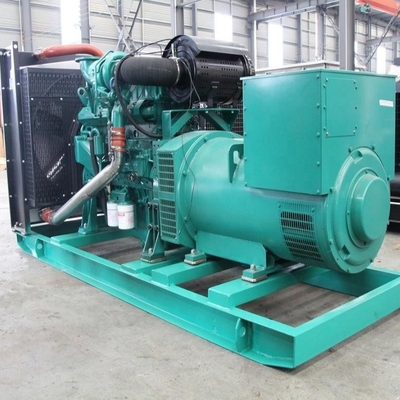

YC4A100Z-D20 Engine 70KW YUCHAI Diesel Generator Set

Name: YC4A100Z-D20 Engine 70KW YUCHAI Diesel Generator Set
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: YC4A100Z-D20
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Yuchai
Model Number:	YC4A100Z-D20
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union, T/T, D/P, L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

70KW Yuchai Diesel Generator

Rated Voltage::

230V/400V

Engine Model::

Yuchai YC4A100Z-D20

Rated Current::

126A

Frequency::

50Hz/60Hz

Alternator::

MBC22C

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

2350×900×1300mm

Genset Weight::

1450kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-70

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

YC4A100Z-D20 YUCHAI Diesel Generator

70KW YUCHAI Diesel Generator Set

70KW yuchai genset

Product Description

Yuchai Diesel Generator Sets Description:
70kw rainproof electric generator with YUCHAI engine YC4A100Z-D20
(1) Full control panel with power indicator light and oil light.
(2).Emergency shutdown for low oil pressure and high water temperature.
(3).Large fuel tank ensure continuous running.
(4).Low noise & vibration.
(5).Compact structure.
(6).Reliable performance.
(7).Easy for installation and maintenance.
YC4A100Z-D20 Engine 70KW YUCHAI Diesel Generator Set 0

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-70
Prime Powder		70KW/87.5KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		126A
Genset Weight		1450kg(Net)
Length x Width x Height (Engine) (mm)		2350×900×1300
Voltage		400/230V
Frequency		50HZ
Yuchai Engine Specification
Manufacturer		Guangxi Yuchai Machinery Group Co., Ltd
Model		YC4A100Z-D20
Rated speed		1500rpm
Prime Powder		70KW/87.5KVA
Standby Powder		73.5KW/91.875KVA
Fuel Consumption		<=205g/KW.H
Lube oil capacity		13L
Bore (mm) x Stroke (mm)		108*115mm
Compression ratio		17.5:1
Displacement (litre)		4.834
Coolant capacity, L		/
Configuration		4 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC27C
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

YC4A100Z-D20 Engine 70KW YUCHAI Diesel Generator Set 1

About MingBang Intelligent Technology

YC4A100Z-D20 Engine 70KW YUCHAI Diesel Generator Set 3

Mingbang is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.works closely with all large power manufactures such as Cummins, Perkins, Deutz,Volvo and Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 4kw to 2200kw at competitive prices.
Besides generators, we also product the refer product include lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switch gear.

Our customers

China Famous Brand Yuchai Diesel Generator Set Small Diesel Engine Air-Cooled Generator With ATS And Stamford Alternator

<<<<<Changsha Mingbang Intelligent Technology Co., Ltd.>>>>>>>

1.Mingbang is devoted to the R&D and manufacturing of diesel generator sets since 2005

2. Mingbang new factory covers an area of 5042 square meters located in Jiang du industrial park of Yang zhou city.

3.Mingbang quality certified by ISO9001 & ISO14001 Management System to guarantee high quality products and service.

5.Mingbang maintaining long term strategic friendship cooperation with domestic and abroad famous manufactures of Cummins, Perkins, Doosan, SDEC, Mitsubishi(SME), Deutz, Wuxi Wandi, Leroysomer, Stamford, and Marathon etc.

6.We have so wide products ranges from 5kva to 3000kva for the diesel generator set; power from 25kva to 1500kva for gas generator set;

7.Soundproof/weather proof type, container type generator set; movable, vehicle type generator sets. Regarding to the electrical control systems, it covers Auto control panel, Synchronization panels, ATS etc.

8.Mingbang can also provide customized solution due to customer requirements upon our standard product supply in order to meet the demand of market. To focus on global market, create AOSIF as international brand, and constantly improve our quality level and maximize customer profitability is AOSIF unchangeable promise and eternal pursuit.

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
