100KW YC4A180L-D20 YUCHAI Diesel Generator Set

Name: 100KW YC4A180L-D20 YUCHAI Diesel Generator Set
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: YC4A180L-D20
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Yuchai
Model Number:	YC4A180L-D20
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union, T/T, D/P, L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

100KW Yuchai Diesel Generator

Rated Voltage::

230V/400V

Engine Model::

Yuchai YC4A180L-D20

Rated Current::

180A

Frequency::

50Hz/60Hz

Alternator::

MBC27C

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

2450*730*1400mm

Genset Weight::

1300kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-100

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

100KW YUCHAI Diesel Generator Set

YC4A180L-D20 YUCHAI Diesel Generator Set

YC4A180L-D20 yuchai genset

Product Description

Yuchai Diesel Generator Sets Description:
1.Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;
2.24V DC start motor;
3.Equipped 24V high performance maintenance-free lead-acid starting batteries and connecting with cables;
4.Equipped with industrial silencer and flexible exhaust hose;
5.Designed to Comply with ISO8528/GB2820;
6.Powered by YuChai engine, Wellpower alternator and DeepSea/ComAp/SmartGen control panel

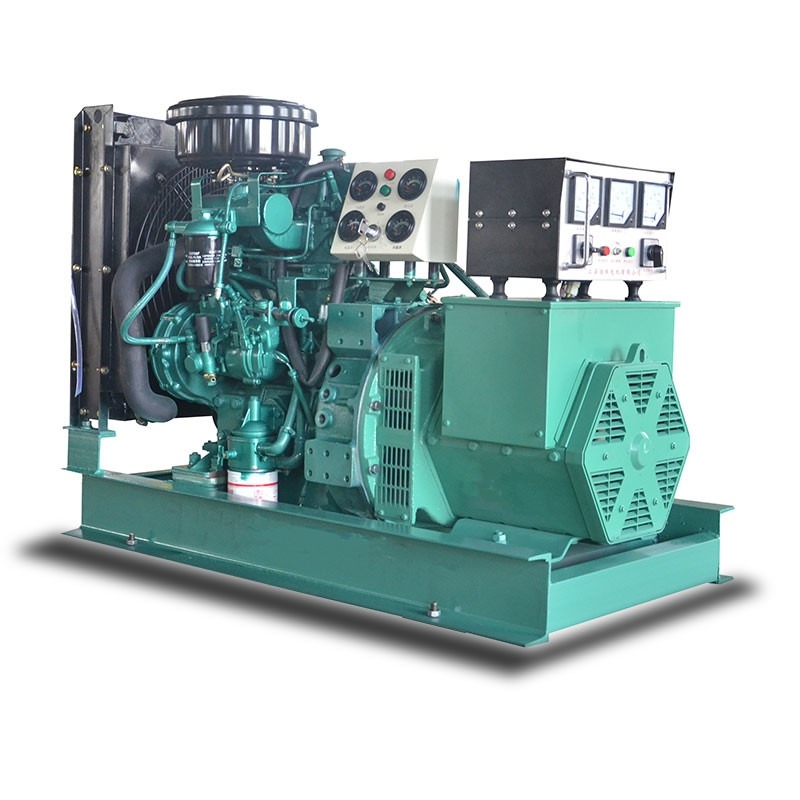

100KW YC4A180L-D20 YUCHAI Diesel Generator Set 0

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-100
Prime Powder		100KW/125KW
Power Factor		COSΦ=0.8(lagging)
Max. Output current		180A
Genset Weight		1300kg(Net)
Length x Width x Height (Engine) (mm)		24507301400
Voltage		400/230V
Frequency		50HZ
Engine Specification
Manufacturer		Guangxi Yuchai Machinery Group Co., Ltd
Model		YC4A180L-D20
Rated speed		1500rpm
Prime Powder		120KW/150KVA
Standby Powder		132KW/165KVA
Fuel Consumption		<=210g/KW.H
Lube oil capacity		13L
Bore (mm) x Stroke (mm)		108*132mm
Compression ratio		17.5:1
Displacement (litre)		4.85
Coolant capacity, L		/
Configuration		4 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC27C
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

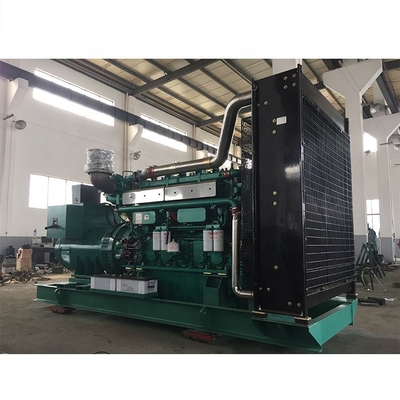

100KW YC4A180L-D20 YUCHAI Diesel Generator Set 1

About MingBang Intelligent Technology

Mingbang is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.works closely with all large power manufactures such as Cummins, Perkins, Deutz,Volvo and Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 4kw to 2200kw at competitive prices.
Besides generators, we also product the refer product include lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switch gear.

Our customers

Yuchai Diesel Generator Silent Diesel Generator Emergency Power For Zambia Stamford AC Generators Soundproof Generator

Our factory has CCEC, DCEC, VOLVO, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. Mingbang brand alternator has been expanded all over the world. The power range of our generator is from 4KW~2200KW.

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
