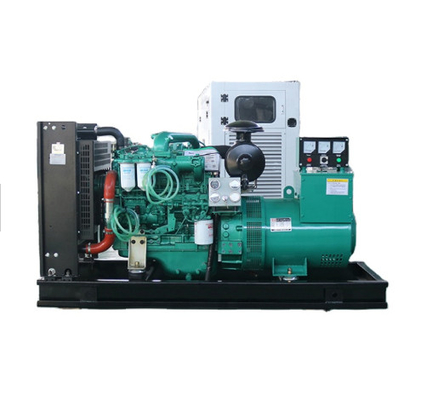

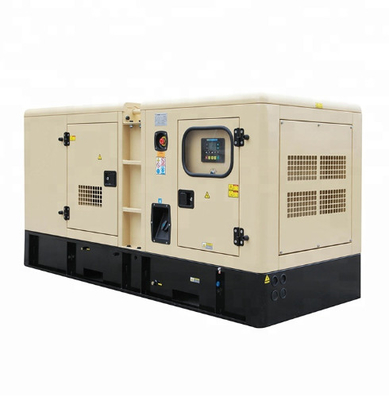

50/60Hz 150KW 1500rpm Brushless Diesel Generator Yuchai Diesel Generator Sets Silent

Name: 50/60Hz 150KW 1500rpm Brushless Diesel Generator Yuchai Diesel Generator Sets Silent
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: YC6B205L-D20
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Yuchai
Model Number:	YC6B205L-D20
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

150KW Yuchai Diesel Generator

Rated Voltage::

230V/400V

Engine Model::

Yuchai YC6B205L-D20

Rated Current::

180A

Frequency::

50Hz/60Hz

Alternator::

MBC27H

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

2700×1020×1500mm

Genset Weight::

1900kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-150

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

150KW brushless diesel generator

1500rpm Brushless Diesel Generator

1500rpm 150KW Diesel Generator

Product Description

Diesel Standby Generator Yuchai Engine Brushless Generator 50/60Hz Silent Soundproof Power Cylinder Diesel Generator

Yuchai Diesel Generator Sets Description:

(1) .Full control panel with power indicator light and oil light.
(2). Emergency shutdown for low oil pressure and high water temperature.
(3). Large fuel tank ensure continuous running.
(4). Low noise & vibration.
(5). Compact structure.
(6). Reliable performance.
(7). Easy for installation and maintenance.

50/60Hz 150KW 1500rpm Brushless Diesel Generator Yuchai Diesel Generator Sets Silent 0

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-150
Prime Powder		150KW/187.5KW
Power Factor		COSΦ=0.8(lagging)
Max. Output current		270A
Genset Weight		1900kg(Net)
Length x Width x Height (Engine) (mm)		2700×1020×1500
Voltage		400/230V
Frequency		50HZ
Engine Specification
Manufacturer		Guangxi Yuchai Machinery Group Co., Ltd
Model		YC6B205L-D20
Rated speed		1500rpm
Prime Powder		138KW/172.5KVA
Standby Powder		152KW/190KVA
Fuel Consumption		<=197g/KW.H
Lube oil capacity		22L
Bore (mm) x Stroke (mm)		120*145mm
Compression ratio		17.5:1
Displacement (litre)		7.525
Coolant capacity, L		/
Configuration		6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC27H
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

50/60Hz 150KW 1500rpm Brushless Diesel Generator Yuchai Diesel Generator Sets Silent 1

About MingBang Intelligent Technology

50/60Hz 150KW 1500rpm Brushless Diesel Generator Yuchai Diesel Generator Sets Silent 3

Mingbang is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.works closely with all large power manufactures such as Cummins, Perkins, Deutz,Volvo and Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 4kw to 2200kw at competitive prices.
Besides generators, we also product the refer product include lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switch gear.

Our customers

Open Diesel Generator Yuchai Diesel Generator Emergency Power For Plant Hosptial Factory Using Emergency Power

Product feature of Low Noise Electric Start Diesel Generator Yuchai 150kw:

1. High strength base frame material can significantly reduce the vibration during operation.

2. Marvelous spray coating technology can effectively prevent against rain and noise.

3. Special sound absorbing material and system can maximally reduce noise to 65dBA/7m

More details for diesel generator sets ,please contact us any time
