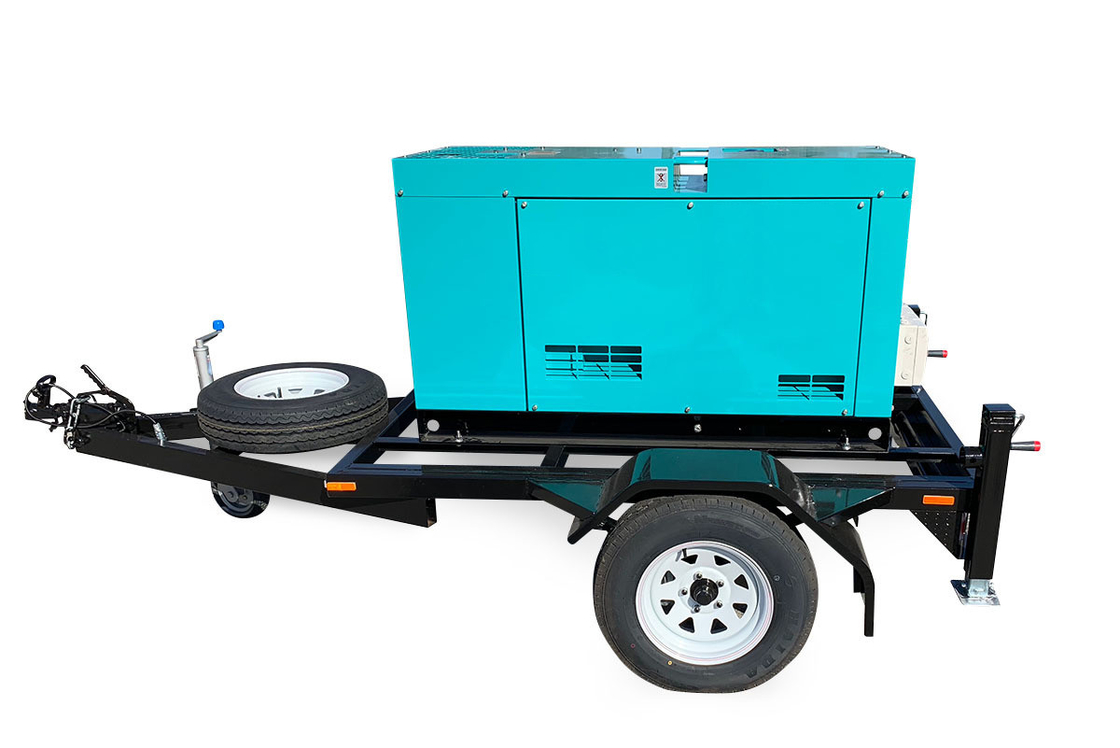

250Kw Mobile Trailer Diesel Generator sets with Yuchai engine

Name: 250Kw Mobile Trailer Diesel Generator sets with Yuchai engine
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: YC6MK350L-D20
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Yuchai
Model Number:	YC6MK350L-D20
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

250KW Yuchai Diesel Generator

Rated Voltage::

230V/400V

Engine Model::

Yuchai YC6MK350L-D20

Rated Current::

360A

Frequency::

50Hz/60Hz

Alternator::

MBC4C

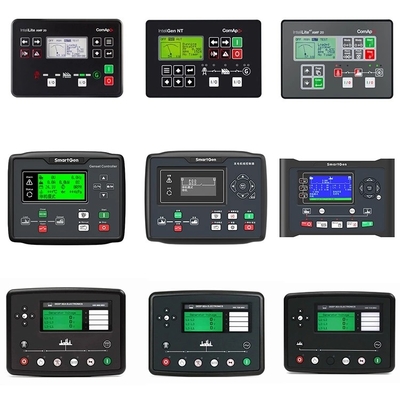

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

2800×1100×1500mm

Genset Weight::

2000kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-250

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

250Kw Mobile Diesel Generator

Yuchai Engine Mobile Diesel Generator

250Kw mobile dg set

Product Description

40-2200kw Yuchai Diesel Generator Sets Description:
We produce and export 4-2200kw diesel generator sets. Diesel generator sets are widely used in field construction, high-rise buildings, schools, hospitals, industrial and mining enterprises, farms, villages and other places where electricity is needed.

250Kw Mobile Trailer Diesel Generator sets with Yuchai engine 0

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-250
Prime Powder		200KW/250KW
Power Factor		COSΦ=0.8(lagging)
Max. Output current		360A
Genset Weight		2000kg(Net)
Length x Width x Height (Engine) (mm)		2800×1100×1500
Voltage		400/230V
Frequency		50HZ
Yuchai Engine Specification
Manufacturer		Guangxi Yuchai Machinery Group Co., Ltd
Model		YC6MK350L-D20
Rated speed		1500rpm
Prime Powder		235KW/293.75KVA
Standby Powder		258.5KW/323.125KVA
Fuel Consumption		<=195g/KW.H
Lube oil capacity		52L
Bore (mm) x Stroke (mm)		123*145mm
Compression ratio		17.5:1
Displacement (litre)		9.84
Coolant capacity, L		/
Configuration		6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Stamford Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC4C
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

250Kw Mobile Trailer Diesel Generator sets with Yuchai engine 1

About MingBang Intelligent Technology

Mingbang is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.works closely with all large power manufactures such as Cummins, Perkins, Deutz,Volvo and Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 4kw to 2200kw at competitive prices.
Besides generators, we also product the refer product include lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switch gear.

250Kw Mobile Trailer Diesel Generator sets with Yuchai engine 3

Our customers

Trailer Diesel Generator 250Kw Yuchai Diesel Generator Set Industrial Diesel Generator Electric Power Generator Stamford

Our Service

1. Ensure good quality, good package for transporation and deliver on time during the production phase;
2. Manging sea freight to customer's port of destination;
3. Be responsible for the after-sales service.

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
