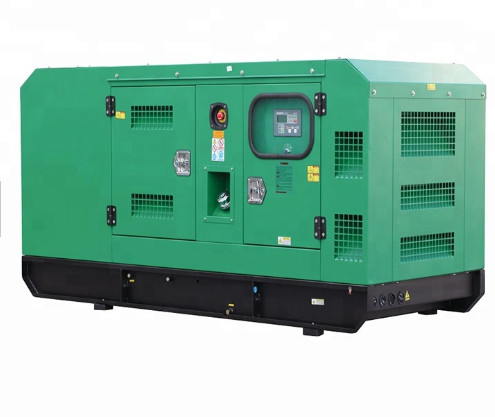

YC6MK420L-D20 250KW Brushless AC Generator Yuchai Diesel Generator Sets

Name: YC6MK420L-D20 250KW Brushless AC Generator Yuchai Diesel Generator Sets
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: YC6MK420L-D20
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Yuchai
Model Number:	YC6MK420L-D20
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

250KW Yuchai Diesel Generator

Rated Voltage::

230V/400V

Engine Model::

Yuchai YC6MK420L-D20

Rated Current::

360A

Frequency::

50Hz/60Hz

Alternator::

MBC4C

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

2800×1100×1500mm

Genset Weight::

2000kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-250

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

250KW Brushless AC Generator

YC6MK420L-D20 Brushless AC Generator

YC6MK420L-D20 yuchai diesel generator

Product Description

250kw Yuchai Diesel Generator Sets Description:
A diesel generator (DG) (also known as diesel genset) is the combination of a diesel engine with an electric generator (often an alternator) to generate electrical energy. This is a specific case of engine-generator. A diesel compression-ignition engine is usually designed to run on diesel fuel

YC6MK420L-D20 250KW Brushless AC Generator Yuchai Diesel Generator Sets 0

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-250
Prime Powder		200KW/250KW
Power Factor		COSΦ=0.8(lagging)
Max. Output current		360A
Genset Weight		2000kg(Net)
Length x Width x Height (Engine) (mm)		2800×1100×1500
Voltage		400/230V
Frequency		50HZ
Yuchai Engine Specification
Manufacturer		Guangxi Yuchai Machinery Group Co., Ltd
Model		YC6MK420L-D20
Rated speed		1500rpm
Prime Powder		281KW/351.25KVA
Standby Powder		309KW/386.25KVA
Fuel Consumption		<=200g/KW.H
Lube oil capacity		52L
Bore (mm) x Stroke (mm)		145*165mm
Compression ratio		17.5:1
Displacement (litre)		9.84
Coolant capacity, L		/
Configuration		6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Stamford Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC4C
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

YC6MK420L-D20 250KW Brushless AC Generator Yuchai Diesel Generator Sets 1

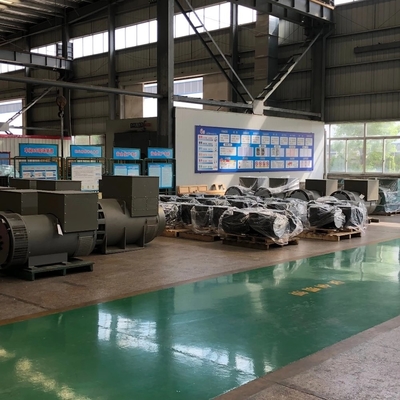

About MingBang Intelligent Technology

Mingbang is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.works closely with all large power manufactures such as Cummins, Perkins, Deutz,Volvo and Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 4kw to 2200kw at competitive prices.
Besides generators, we also product the refer product include lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switch gear.

YC6MK420L-D20 250KW Brushless AC Generator Yuchai Diesel Generator Sets 4

Our customers

Main Features

Brushless AC Generator Original And New Yuchai Diesel Engine Sets Emergency Power With ATS And Fast Shipping 250KW

1. High strength base frame material can significantly reduce the vibration during operation.

2. Marvelous spray coating technology can effectively prevent against rain and noise.

3. Special sound absorbing material and system can maximally reduce noise to 65dBA/7m

24 hours continuous stable power supply, in extreme or normal temperatures from -10 °C to 50 °C.

Sutech Power generators are design to work 24*7 in extreme temperature conditions with minimum maintenance requirement.

In some cases CHP & CCHP (Combined heat and power/ Combined cooling heat and Power) to utilized heat.

Sutech Power specially designs Diesel and Gas CHP/CCHP Power generators to provide hot water or steam as well as Power.

Lower noise level is important.

Sutech power generators are made to be environment friendly with low emission and lower noise level

Reliable AMF & ATS System (Auto mains failure & Auto transfer System) which can start and stop generators automatically with load transfer in case of city supply on or off.

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
