Yuchai Engine 350KW Open Diesel Generator

Name: Yuchai Engine 350KW Open Diesel Generator
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: YC6K520-D30
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Yuchai
Model Number:	YC6K520-D30
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

Yuchai Diesel Generator 350KW

Rated Voltage::

230V/400V

Engine Model::

Yuchai YC6K520-D30

Rated Current::

630A

Frequency::

50Hz/60Hz

Alternator::

MBC5A

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

3100*1150*1650mm

Genset Weight::

2500kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-B350

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

350KW Open Diesel Generator

Yuchai Engine Open Diesel Generator

350KW yuchai diesel generator

Product Description

40-2200kw diesel generator with Yuchai engine
We produce and export 4-2200kw diesel generator sets. Diesel generator sets are widely used in field construction, high-rise buildings, schools, hospitals, industrial and mining enterprises, farms, villages and other places where electricity is needed.

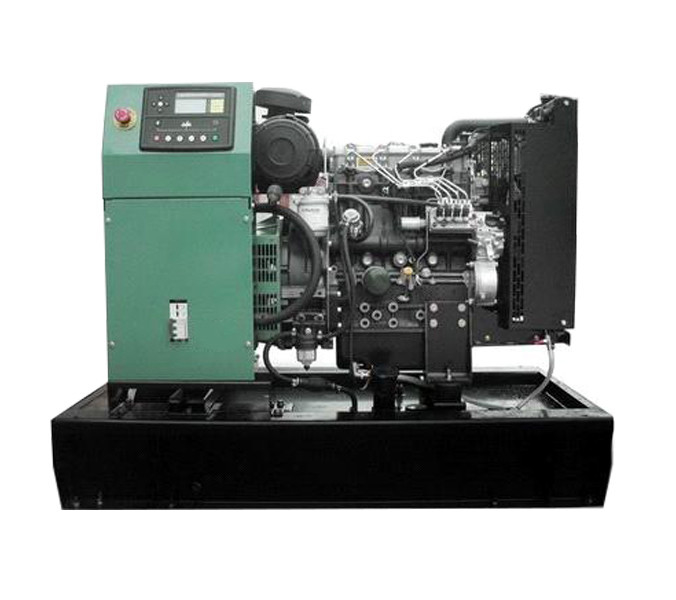

Yuchai Engine 350KW Open Diesel Generator 0

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-350
Prime Powder		350KW/437.5KW
Power Factor		COSΦ=0.8(lagging)
Max. Output current		630A
Genset Weight		2500kg(Net)
Length x Width x Height (Engine) (mm)		310011501650
Voltage		400/230V
Frequency		50HZ
Yuchai Engine Specification
Manufacturer		Guangxi Yuchai Machinery Group Co., Ltd
Model		YC6K520-D30
Rated speed		1500rpm
Prime Powder		356KW/445KVA
Standby Powder		382KW/477.5KVA
Fuel Consumption		<=200g/KW.H
Lube oil capacity		52L
Bore (mm) x Stroke (mm)		145*165mm
Compression ratio		17.5:1
Displacement (litre)		9.84
Coolant capacity, L		/
Configuration		6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Stamford Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC5A
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

Yuchai Engine 350KW Open Diesel Generator 1

Open Diesel Generator Durable High Power Diesel Generator Yuchai Engine Best Diesel Generator For Home Use With ATS

We are manufacturer!!!
Diesel generator power range from 8kw-2000kw
Gas generator power range from 10kw-1000kw
Engine brand :Doosan,weichai ,yuchai ,ricardo and so on .
Alternator brand :Stamford,Marathon,Lerory Somer and so on .
Control module:Smartgen,CoMap,Deepsea and so on

About MingBang Intelligent Technology
Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai

Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.
Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!
