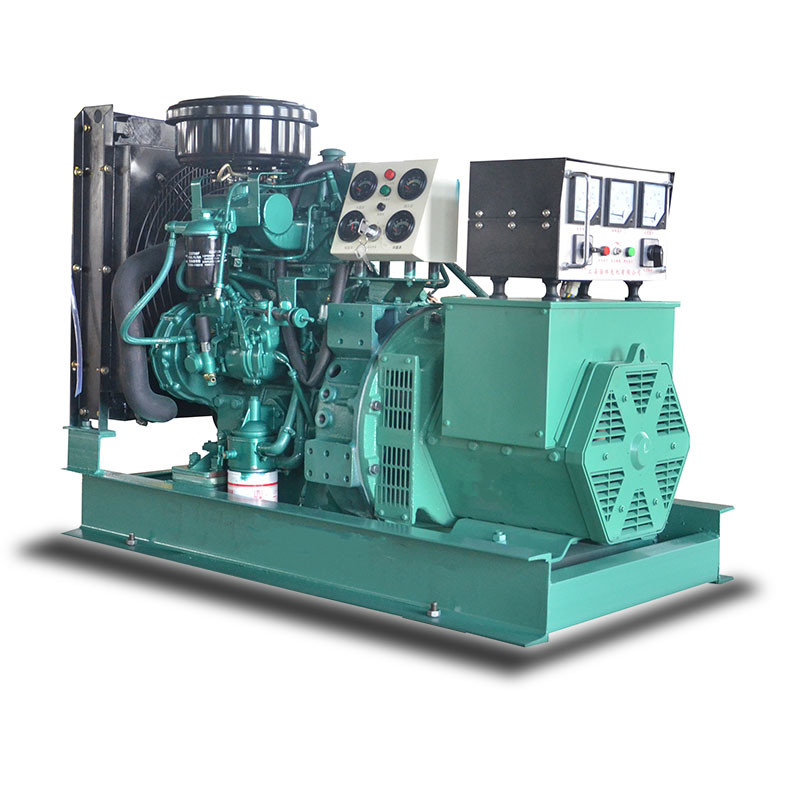

Yuchai YC6K600-D30 350KW Water Cooled Diesel Generator

Name: Yuchai YC6K600-D30 350KW Water Cooled Diesel Generator
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: YC6K600-D30
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Yuchai
Model Number:	YC6K600-D30
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

Yuchai Diesel Generator 350KW

Rated Voltage::

230V/400V

Engine Model::

Yuchai YC6K600-D30

Rated Current::

630A

Frequency::

50Hz/60Hz

Alternator::

MBC5A

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

3100*1150*1650mm

Genset Weight::

2500kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-B350

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

350KW Air Cooled Diesel Generator

YC6K600-D30 Air Cooled Diesel Generator

YC6K600-D30 350kw diesel generator

Product Description

Diesel generator set Features:
With integrated crank case, postposition gear chamber and point-line gear -meshing patent technology,the engine has the advantage of low noise.
.Wet cylinder number liner structure facilitates maintenance and repair.
.P7100 fuel pump,'p'Configuration injector and honeywell turbocharger provide better combustion,lower fuel consumption.
.Yuchai sealing technology inpton and valve oil seal,improving luve oil consumption.
.The 42crmo high pressure forged steel crankshaft,shaft diameter and fillet high-frequency quenching,improve fatigue strength and abrasive resistance.
.Based on the European engine development requirments,the engine overhaul period more than 12000hours.
Yuchai YC6K600-D30 350KW Water Cooled Diesel Generator 0

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-350
Prime Powder		350KW/437.5KW
Power Factor		COSΦ=0.8(lagging)
Max. Output current		630A
Genset Weight		2500kg(Net)
Length x Width x Height (Engine) (mm)		310011501650
Voltage		400/230V
Frequency		50HZ
Yuchai Engine Specification
Manufacturer		Guangxi Yuchai Machinery Group Co., Ltd
Model		YC6K600-D30
Rated speed		1500rpm
Prime Powder		401KW/501.25KVA
Standby Powder		441KW/551.25KVA
Fuel Consumption		<=195g/KW.H
Lube oil capacity		52L
Bore (mm) x Stroke (mm)		145*165mm
Compression ratio		15:01
Displacement (litre)		16.35
Coolant capacity, L		/
Configuration		6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Stamford Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC5A
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

Yuchai YC6K600-D30 350KW Water Cooled Diesel Generator 1

Air Cooled Diesel Engine 30kw Generator Yuchai Diesel Generator Set Sound Proof Price Open Type Portable Diesel Genset

Yuchai YC6K600-D30 350KW Water Cooled Diesel Generator 3

About MingBang Intelligent Technology

Mingbang Intelligent Technology Co.,Ltd is one of the leading and largest world-wide producers and exporters for Diesel Generator (land diesel power generator&marine diesel generating set) and Gasoline Generator set from 1kva up to 2500kva. Transformed from a state owned enterprise and founded in 2005, Newtec's Factory and generators assembling centers have more than two decades of experience in the design, research and manufacturing of diesel genset in strict compliance with ISO and CE standards. Up to being now, more than 20,000 sets of high quality generaotr set from Newtec Power have been working well in many fields including railways, oil fields, Schools, hospitals, banks, supermarkets, industries, tall buildings, sea ports and military bases etc.
