1080A 750kva 600kw Industrial Yuchai diesel generator set

Name: 1080A 750kva 600kw Industrial Yuchai diesel generator set
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: YC6TD1000-D30
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Yuchai
Model Number:	YC6TD1000-D30
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

Yuchai Diesel Generator 600KW

Rated Voltage::

230V/400V

Engine Model::

Yuchai YC6TD1000-D30

Rated Current::

750A

Frequency::

50Hz/60Hz

Alternator::

MBC6A

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

3800*1500*1950mm

Genset Weight::

5500kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-B600

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

100kw Industrial Emergency Generator

125kva Industrial Emergency Generator

750A 125 kva diesel generator

Product Description

Yuchai diesel generator set specifications:
Diesel generator set Silent / Soundproof type / Open type / Trailer type/ Container type
a) Diesel engine with all accessories, 3 filter, electric systems
b) Alternator
c) Steel structure
d) Fan and water tank cooling system
e) Flange connector
f) 12 / 24V starting motor and charge engine
g) Air cleaner, fuel cleaner, oil cleaner
h) On-board control panel
i) MCCB air conservation switch
j) 12 / 24V starting accumulator and battery line
k) Set shock absorber
l) High-efficient silencer

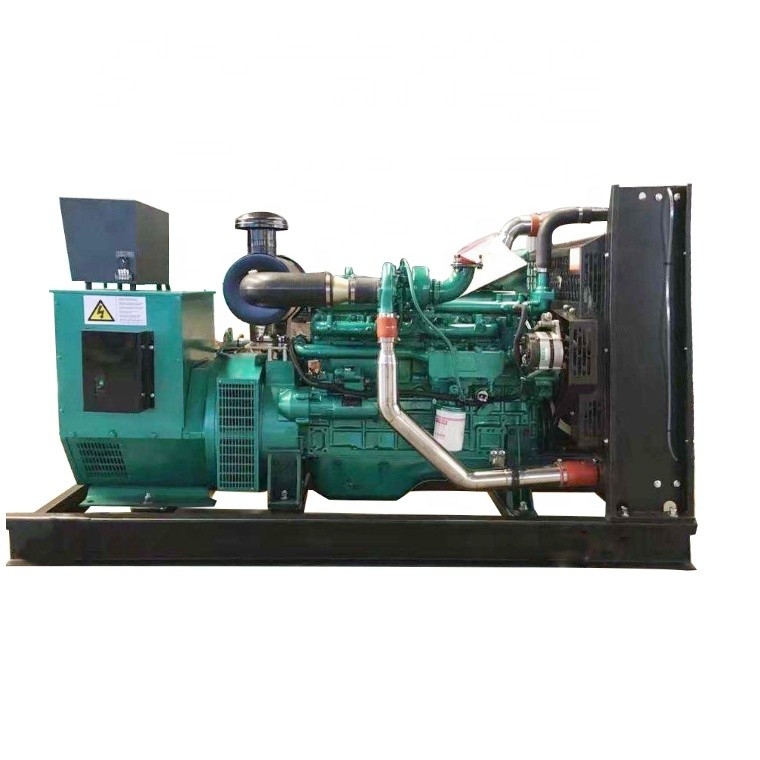

1080A 750kva 600kw Industrial Yuchai diesel generator set 0

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-600
Prime Powder		600KW/750KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		1080A
Genset Weight		5500kg(Net)
Length x Width x Height (Engine) (mm)		380015001950
Voltage		400/230V
Frequency		50HZ
Yuchai Engine Specification
Manufacturer		Guangxi Yuchai Machinery Group Co., Ltd
Model		YC6TD1000-D30
Rated speed		1500rpm
Prime Powder		668KW/835KVA
Standby Powder		735KW/918.75KVA
Fuel Consumption		<=215g/KW.H
Lube oil capacity		52L
Bore (mm) x Stroke (mm)		200*210mm
Compression ratio		14.5:01
Displacement (litre)		39:58
Coolant capacity, L		/
Configuration		6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Stamford Motor Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC6A
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

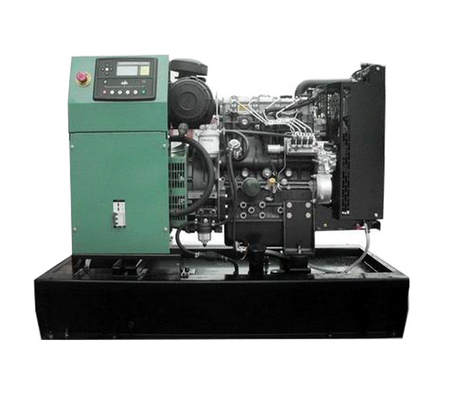

1080A 750kva 600kw Industrial Yuchai diesel generator set 1

Emergency Diesel Generator Small Diesel Generators 100kw 125kva Diesel Standby Generator

Packing picture:

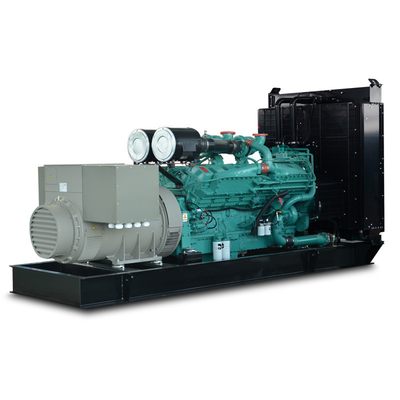

1080A 750kva 600kw Industrial Yuchai diesel generator set 4

Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai

Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 5KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.
Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!
