Protable Type Small Diesel Generator for Charging

Name: Protable Type Small Diesel Generator for Charging
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: YC6C1020-D31
Price: 3,000.00 USD
Availability: InStock

Brand Name:	Yuchai
Model Number:	YC6C1020-D31
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union, T/T, D/P, L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

Yuchai Diesel Generator 700KW

Rated Voltage::

230V/400V

Engine Model::

Yuchai YC6C1020-D31

Rated Current::

1260A

Frequency::

50Hz/60Hz

Alternator::

MBC6C

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

4600*1800*2500mm

Genset Weight::

6500kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-B700

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

62.5kva Small Diesel Generator

Yuchai Engine Small Diesel Generator

50kw 62.5 kva generator

Product Description

Yuchai diesel generator set specifications:
Diesel generator set Silent / Soundproof type / Open type / Trailer type/ Container type
Components of 300kw rainproof electric generator
1a. Diesel engine
1b. Alternator
1c. Control panel

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-700
Prime Power		700KW/875KW
Power Factor		COSΦ=0.8(lagging)
Max. Output current		1260A
Genset Weight		6500kg(Net)
Length x Width x Height (Engine) (mm)		460018002500
Voltage		400/230V
Frequency		50HZ
Yuchai Engine Specification
Manufacturer		Guangxi Yuchai Machinery Group Co., Ltd
Model		YC6C1020-D31
Rated speed		1500rpm
Prime Power		715KW/893.75KVA
Standby Power		787KW/983.75KVA
Fuel Consumption		<=215g/KW.H
Lube oil capacity		52L
Bore (mm) x Stroke (mm)		150*180mm
Compression ratio		14.5:01
Displacement (litre)		39:58
Coolant capacity, L		/
Configuration		6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Stamford Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC6C
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

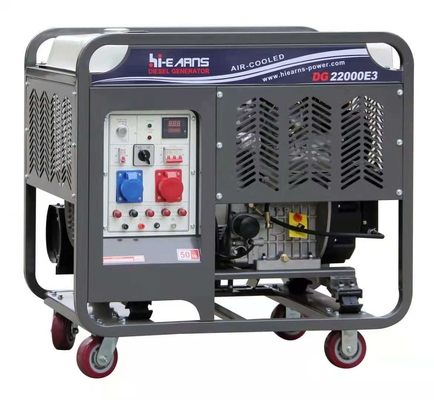

Protable Type Small Diesel Generator for Charging 0

Diesel Generator Sets With Yuchai Engine Small Diesel Engine For Home With Good Quality Fast Shipping

Packing picture:

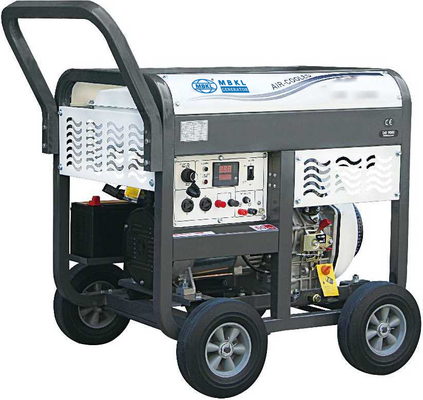

Protable Type Small Diesel Generator for Charging 3

Our factory has CCEC, DCEC, VOLVO, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. Mingbang brand alternator has been expanded all over the world. The power range of our generator is from 4KW~2200KW.

Weclome to visit our factory!

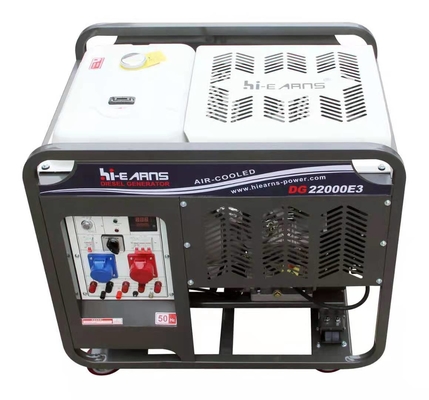

Protable Type Small Diesel Generator for Charging 4

Our customers

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
