YC6C1220-D31 YUCHAI Diesel Generator Set

Name: YC6C1220-D31 YUCHAI Diesel Generator Set
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: YC6C1220-D31
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Yuchai
Model Number:	YC6C1220-D31
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union, T/T, D/P, L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

Yuchai Diesel Generator 800KW

Rated Voltage::

230V/400V

Engine Model::

Yuchai YC6C1220-D31

Rated Current::

1440A

Frequency::

50Hz/60Hz

Alternator::

MBC6C

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

4600*1800*2500mm

Genset Weight::

7000kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-B800

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

YC6C1220-D31 YUCHAI Diesel Generator

800KW YUCHAI Diesel Generator Set

800KW yuchai genset

Product Description

Yuchai Diesel Generator Description:

Prime Power 800KW 1000KVA 60Hz yuchai diesel generator

Mingbang Power Perkins Diesel Generating Set, power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, for more than 80 years, UK Perkins has been the world's leading supplier of diesel and gas engines in the 4 - 2200 KW market. Perkins key strength is its ability to tailor engines precisely to meet customers' requirements, which is why its engine solutions are trusted by more than 1,000 leading manufacturers in the industrial, construction, agricultural, materials handling and electrical power generation markets.

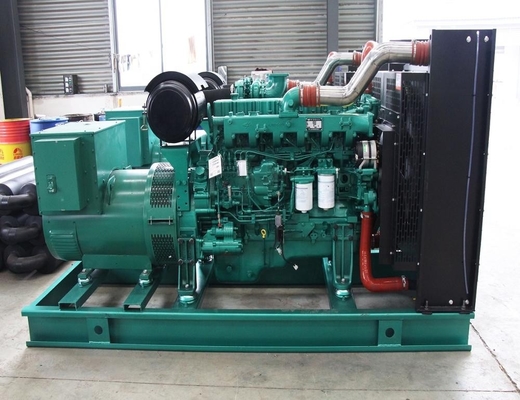

YC6C1220-D31 YUCHAI Diesel Generator Set 0

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-800
Prime Powder		800KW/1000KW
Power Factor		COSΦ=0.8(lagging)
Max. Output current		1440A
Genset Weight		7000kg(Net)
Length x Width x Height (Engine) (mm)		460018002500
Voltage		400/230V
Frequency		50HZ
Engine Specification
Manufacturer		Guangxi Yuchai Machinery Group Co., Ltd
Model		YC6C1220-D31
Rated speed		1500rpm
Prime Powder		815KW/1018.75KVA
Standby Powder		897KW/1121.25KVA
Fuel Consumption		<=215g/KW.H
Lube oil capacity		52L
Bore (mm) x Stroke (mm)		200*210mm
Compression ratio		14.5:01
Displacement (litre)		39:58
Coolant capacity, L		/
Configuration		6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC6D
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

YC6C1220-D31 YUCHAI Diesel Generator Set 1

About MingBang Intelligent Technology

Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai

Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.
Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!

YC6C1220-D31 YUCHAI Diesel Generator Set 3

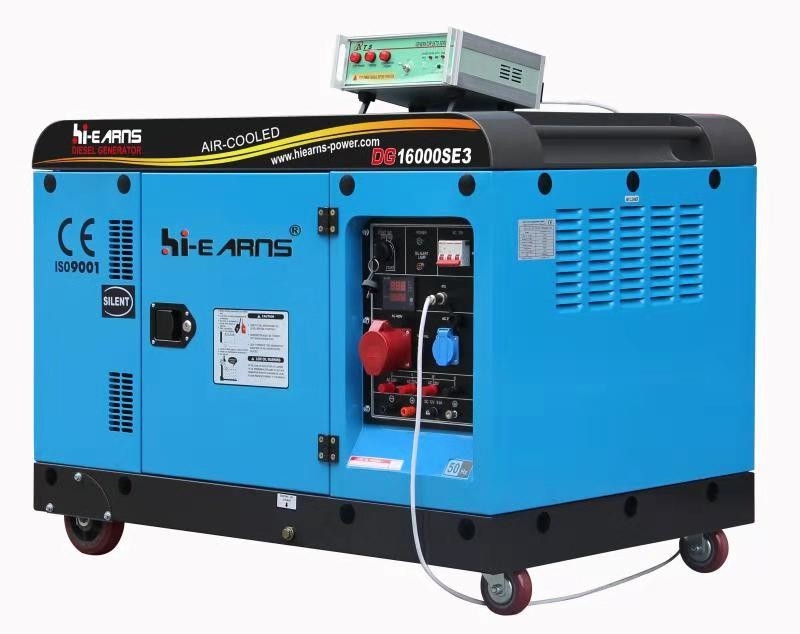

Yuchai Diesel Generator Air Cooled Super Silent Diesel Generator

FAQ:

<<<<<Changsha Mingbang Intelligent Technology Co., Ltd.>>>>>>>

1.Mingbang is devoted to the R&D and manufacturing of diesel generator sets since 2005

2. Mingbang new factory covers an area of 5042 square meters located in Jiang du industrial park of Yang zhou city.

3.Mingbang quality certified by ISO9001 & ISO14001 Management System to guarantee high quality products and service.

5.Mingbang maintaining long term strategic friendship cooperation with domestic and abroad famous manufactures of Cummins, Perkins, Doosan, SDEC, Mitsubishi(SME), Deutz, Wuxi Wandi, Leroysomer, Stamford, and Marathon etc.

6.We have so wide products ranges from 5kva to 3000kva for the diesel generator set; power from 25kva to 1500kva for gas generator set;

7.Soundproof/weather proof type, container type generator set; movable, vehicle type generator sets. Regarding to the electrical control systems, it covers Auto control panel, Synchronization panels, ATS etc.

8.Mingbang can also provide customized solution due to customer requirements upon our standard product supply in order to meet the demand of market. To focus on global market, create AOSIF as international brand, and constantly improve our quality level and maximize customer profitability is AOSIF unchangeable promise and eternal pursuit.

Our customers

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
