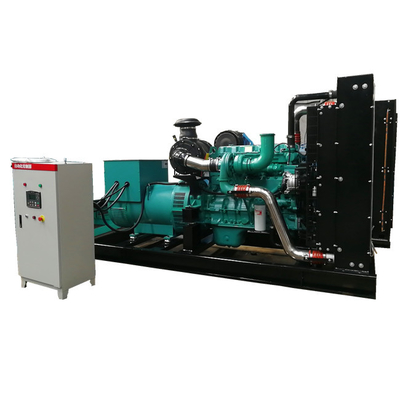

12 Cylinders 1500KW Yuchai diesel generator sets

Name: 12 Cylinders 1500KW Yuchai diesel generator sets
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: YC12VC2070-D31
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Yuchai
Model Number:	YC12VC2070-D31
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

Yuchai Diesel Generator 1200KW

Rated Voltage::

230V/400V

Engine Model::

Yuchai YC12VC2070-D31

Rated Current::

2700A

Frequency::

50Hz/60Hz

Alternator::

MBC7B

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

6500*2300*2600mm

Genset Weight::

12000kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-B1500

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

1200KW Commercial Emergency Generator

12 Cylinders Commercial Emergency Generator

1200KW emergency power generators

Product Description

Yuchai YC12VC2070-D31 12 cylinders diesel generator sets features:

.Withi integrated crank case, postposition gear chamber and point-line gear -meshing patent technology,the engine has the advantage of low noise.

.Wet cylinder number liner structure facilitates maintenance and repair.

.P7100 fuel pump,'p'Configuration injector and honeywell turbocharger provide better combustion,lower fuel consumption.

.Yuchai sealing technology inpton and valve oil seal,improving luve oil consumption.

.The 42crmo high pressure forged steel crankshaft,shaft diameter and fillet high-frequency quenching,improve fatigue strength and abrasive resistance.

.Based on the European engine development requirments,the engine overhaul period more than 12000hours.

12 Cylinders 1500KW Yuchai diesel generator sets 0

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-1200
Prime Powder		1500KW/1875KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		2700A
Genset Weight		12000kg(Net)
Length x Width x Height (Engine) (mm)		650023002600
Voltage		400/230V
Frequency		50HZ
Engine Specification
Manufacturer		Guangxi Yuchai Machinery Group Co., Ltd
Model		YC12VC2070-D31
Rated speed		1500rpm
Prime Powder		1380KW/1725KVA
Standby Powder		1520KW/1900KVA
Fuel Consumption		<=210g/KW.H
Lube oil capacity		280L
Bore (mm) x Stroke (mm)		200*210mm
Compression ratio		13.5:01
Displacement (litre)		79:17
Coolant capacity, L		/
Configuration		12 V type ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC7B
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

12 Cylinders 1500KW Yuchai diesel generator sets 1

12 Cylinders 1500KW Yuchai diesel generator sets 2

About MingBang Intelligent Technology

Our factory has CCEC, DCEC, VOLVO, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. MB brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.

12 Cylinders 1500KW Yuchai diesel generator sets 4

Emergency Diesel Generators Diesel Generator Set Diesel Generator Silent Used Diesel Generator 12 Cylinders Diesel

Direct injection internal combustion engine (diesel); Yuchai Engine Co., Ltd.
AC synchronous generator (single bearing); KC generator
Suitable for environment 40 ° C -50 ° C radiator water tank, belt drive cooling fan, fan safety shield;
Power output air switch, standard control screen; (HGM6110U supports eight languages worldwide)
unit steel common base (including: unit composite damping rubber pad);
Dry air filter, fuel filter, oil filter, starter motor, and self-charging generator;
Start the battery and battery start connection cable;
Industrial 90dB silencer and standard parts for connection
Molded case circuit breaker
Thick plastic fiMB packaging
Random data: original technical documents of diesel engines and generators, generator sets, test reports, etc.
FAQ:
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: What is your MOQ of this item?
A: 1 set.
Q3: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: What is your company's available production capacity?
A: 50 Sets per Month.
Q5: What is the lead time?
A: 2-7 working days after received the 30%T/T deposit.
Q6: What are your payment terms?
A: 30% TT as deposit,70% TT before Shipment.
Q7: Does your generator have global warranty?
A:Yes, most of our products such as Cummins,Perkins and so on enjoy the global warranty service.

And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service.
