YC12VC2070-D31 Engine 400V 1500KW Yuchai Diesel Generator

Brand Name:	Yuchai
Model Number:	YC12VC1680-D31
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

Yuchai Diesel Generator 1500KW

Rated Voltage::

230V/400V

Engine Model::

Yuchai YC12VC2070-D31

Rated Current::

2700A

Frequency::

50Hz/60Hz

Alternator::

MBC7D

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

6500*2300*2600mm

Genset Weight::

12350kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-B1500

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

1500KW yuchai diesel generator

YC12VC2070-D31 yuchai diesel generator

400V 1500kw diesel generator

Product Description

Yuchai YC12VC2070-D31 diesel generator sets features:

7-1800kw diesel generator with Yuchai engine

We produce and export 7-1800kw diesel generator sets. Diesel generator sets are widely used in field construction, high-rise buildings, schools, hospitals, industrial and mining enterprises, farms, villages and other places where electricity is needed.

YC12VC2070-D31 Engine 400V 1500KW Yuchai Diesel Generator 0

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-1500
Prime Powder		1500KW/18750KW
Power Factor		COSΦ=0.8(lagging)
Max. Output current		2700A
Genset Weight		12350kg(Net)
Length x Width x Height (Engine) (mm)		650023002600
Voltage		400/230V
Frequency		50HZ
Yuchai Engine Specification
Manufacturer		Guangxi Yuchai Machinery Group Co., Ltd
Model		YC12VC2070-D31
Rated speed		1500rpm
Prime Powder		1380KW/1725KVA
Standby Powder		1520KW/1900KVA
Fuel Consumption		<=210g/KW.H
Lube oil capacity		280L
Bore (mm) x Stroke (mm)		200*210mm
Compression ratio		13.5:01
Displacement (litre)		79:17
Coolant capacity, L		/
Configuration		12 V type ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Stamford Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC7D
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

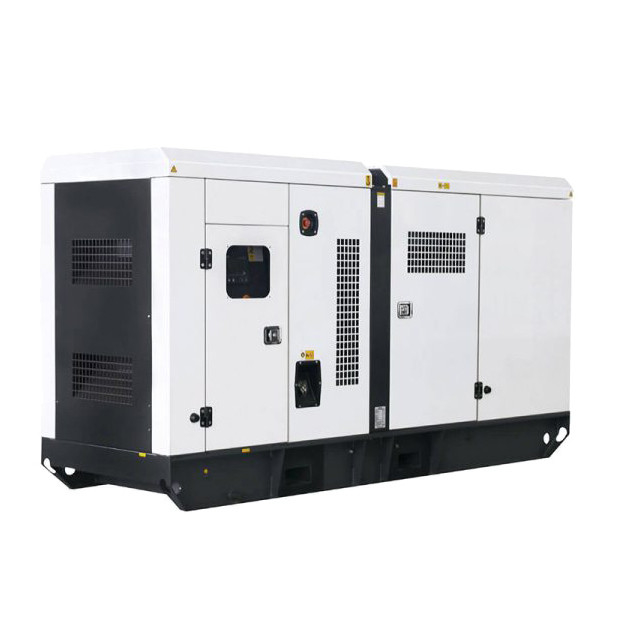

YC12VC2070-D31 Engine 400V 1500KW Yuchai Diesel Generator 1

YC12VC2070-D31 Engine 400V 1500KW Yuchai Diesel Generator 2

About MingBang Intelligent Technology

Mingbang Co.,Ltd is one of the leading and largest world-wide producers and exporters for Diesel Generator (land diesel power generator&marine diesel generating set) and Gasoline Generator set from 1kva up to 2500kva. Transformed from a state owned enterprise and founded in 2005, Mingbang's Factory and generators assembling centers have more than two decades of experience in the design, research and manufacturing of diesel genset in strict compliance with ISO and CE standards. Up to being now, more than 20,000 sets of high quality generator set from mingbang have been working well in many fields including railways, oil fields, Schools, hospitals, banks, supermarkets, industries, tall buildings, sea ports and military bases etc.

YC12VC2070-D31 Engine 400V 1500KW Yuchai Diesel Generator 4

Brushless AC Generator Yuchai Diesel Generator Sets Silent Type Three Phase Diesel Generator With Stamford Alternator

Direct injection internal combustion engine (diesel); Yuchai Engine Co., Ltd.
Maximum 20.0 kVA 380 Volts, @50hz, 1500rpm
AVR delivers non fluctuating power
Panel type digital control panel
12 Volt / 24 Volt electric starter ensures easy starting
Low oil pressure shut down system
Low fuel cut out protection
Low water cut out engine protection
Enclosed structure ensures quieter operation
Alternator (Dynamo) excitation mode brushless self excitation
Three-phase output meets differing requirements
Four Cylinder, four stroke, water cooled diesel engine
8 hours running @ full load on a single tank of fuel
Dual access doors for easy maintenance
Optional automatic or manual transfer switches available
ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers
Noise Level (dBA @ 7m)
All ratings are at sea level
