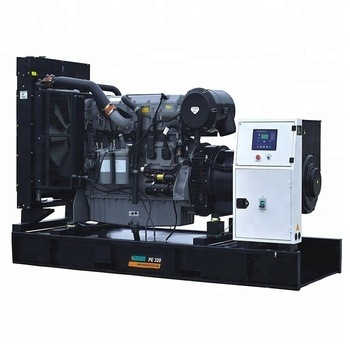

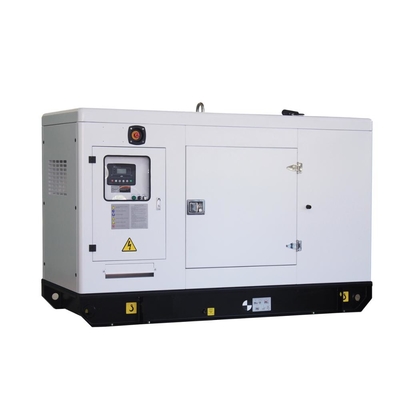

Yuchai Diesel Generator Set for Charging Silent Type 2000KVA

Name: Yuchai Diesel Generator Set for Charging Silent Type 2000KVA
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: YC12VC2510-D31
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Yuchai
Model Number:	YC12VC2510-D31
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

Yuchai Diesel Generator 1600KW

Rated Voltage::

230V/400V

Engine Model::

Yuchai YC12VC2510-D31

Rated Current::

2880A

Frequency::

50Hz/60Hz

Alternator::

MBC7D

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

6500*2300*2600mm

Genset Weight::

13350kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-B1600

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

1600KW Yuchai Diesel Generator

YC12VC2510-D31 Yuchai Diesel Generator

YC12VC2510-D31 engine diesel generator

Product Description

Yuchai YC12VC2510-D31 diesel generator sets features:

Engine Brands: Powered by Cummins,Powered by Perkins,Powered by Lovol,Powered by Deutz,Powered by Doosan, Powered by Mitsubishi, Powered by Kubota, Powered by Yanmar or other
reliable Chinese engines such as Fawde and Laidong.
Rated output: 2 to 2,000kW/2 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Cooling method: closed water-cooled or air-cooled
Starting method: electric start or recoil start
Rated speed: 1,500/1,800/3,000/3,600rpm
Noise level: 56 to 75dB, 7 meters away

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-1600
Prime Power		1600KW/2000KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		2880A
Genset Weight		13350kg(Net)
Length x Width x Height (Engine) (mm)		650023002600
Voltage		400/230V
Frequency		50HZ
Yuchai Engine Specification
Manufacturer		Guangxi Yuchai Machinery Group Co., Ltd
Model		YC12VC2510-D31
Rated speed		1500rpm
Prime Power		1680KW/2100KVA
Standby Power		1850KW/2312.5KVA
Fuel Consumption		<=210g/KW.H
Lube oil capacity		280L
Bore (mm) x Stroke (mm)		200*210mm
Compression ratio		13.5:01
Displacement (litre)		79:17
Coolant capacity, L		/
Configuration		12 V type ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Stamford Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC7D
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

Yuchai Diesel Generator Set for Charging Silent Type 2000KVA 0

About MingBang Intelligent Technology

Mingbang Co.,Ltd is one of the leading and largest world-wide producers and exporters for Diesel Generator (land diesel power generator&marine diesel generating set) and Gasoline Generator set from 1kva up to 2500kva. Transformed from a state owned enterprise and founded in 2005, Mingbang's Factory and generators assembling centers have more than two decades of experience in the design, research and manufacturing of diesel genset in strict compliance with ISO and CE standards. Up to being now, more than 20,000 sets of high quality generator set from mingbang have been working well in many fields including railways, oil fields, Schools, hospitals, banks, supermarkets, industries, tall buildings, sea ports and military bases etc.

Yuchai Diesel Generator Set for Charging Silent Type 2000KVA 2

Diesel Generator Sets Silent Diesel Geneartor Yuchai Motor With Stamford Alternator Stand By Power

Main Features
1)Easy operation,simple maintenance, Low cost.

2) Compact structure, high-strength chassis,beautiful design.

3) Good performance damping system, coperate more conveniently.

4) Compliance with international electrical safety standards of electrical system.

5) continue running 8 hours base tank.

6) High-performance maintenance-free batteries with isolation switch,it is more safety.

7) 50℃ radiator .

8) Forklift bottom hole design, easy to transport.

9) Industrial type muffler.

10) Noise reduction structure,Low overall noise.

11) Convenient power output interface and ATS Interface,satisfy customer's requires.

12) IP56 (control system).

13)The personalized design for user.

Our customers

Our Service

1. Ensure good quality, good package for transporation and deliver on time during the production phase;
2. Manging sea freight to customer's port of destination;
3. Be responsible for the after-sales service.

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
