BFM3G1 Deutz Diesel Generator Set

Name: BFM3G1 Deutz Diesel Generator Set
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: BFM3G1
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Deutz
Model Number:	BFM3G1
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union, T/T, D/P, L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

Deutz Diesel Generator 20KW

Rated Voltage::

230V/400V

Engine Model::

Deutz BFM3G1

Rated Current::

36A

Frequency::

50Hz/60Hz

Alternator::

MBC22A

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

1500*600*1000mm

Genset Weight::

520kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-B20

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

BFM3G1 Deutz Diesel Generator Set

25KVA Deutz Diesel Generator Set

BFM3G1 deutz engine generator

Product Description

Deutz BFM3G1 diesel generator sets features:

Engine Brands: Powered by Cummins,Powered by Perkins,Powered by Lovol,Powered by Deutz,Powered by Doosan, Powered by Mitsubishi, Powered by Kubota, Powered by Yanmar or other
reliable Chinese engines such as Fawde and Laidong.
Rated output: 2 to 2,000kW/2 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Cooling method: closed water-cooled or air-cooled
Starting method: electric start or recoil start
Rated speed: 1,500/1,800/3,000/3,600rpm
Noise level: 56 to 75dB, 7 meters away

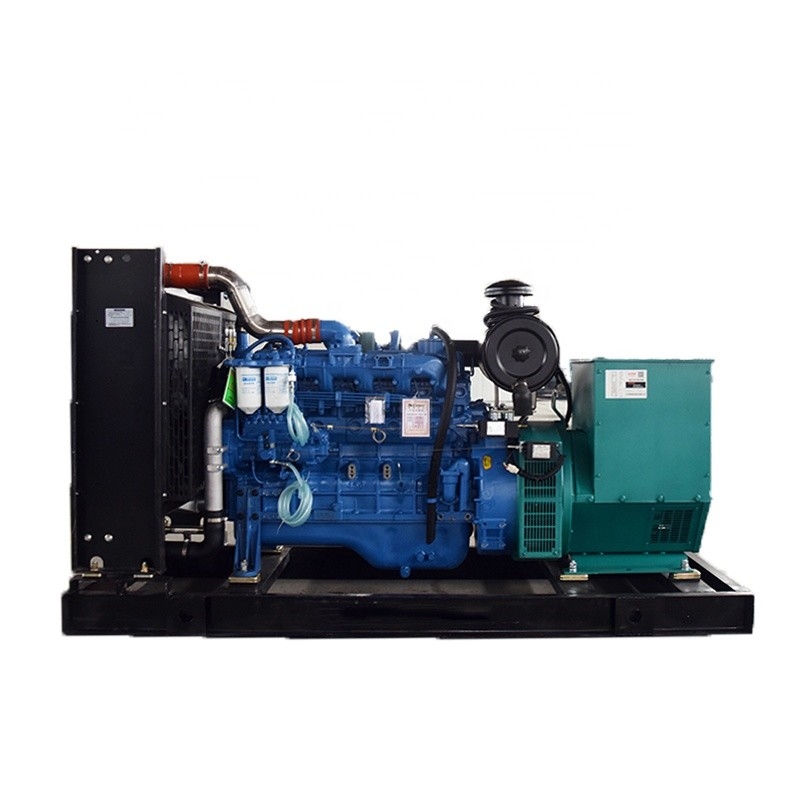

BFM3G1 Deutz Diesel Generator Set 0

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-19
Prime Powder		19KW/23.8KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		34.2A
Genset Weight		520kg(Net)
Length x Width x Height (Engine) (mm)		15006001000
Voltage		400/230V
Frequency		50HZ
Deutz Engine Specification
Manufacturer		Dalian Deutz Engine Co., Ltd
Model		BFM3G1
Rated speed		1500rpm
Prime Powder		22KW/27.5KVA
Fuel Consumption		<=228g/KW.H
Lube oil capacity		10.2L
Bore (mm) x Stroke (mm)		98*105mm
Compression ratio		17.5:1
Displacement (litre)		3.2
Coolant capacity, L		/
Configuration		4 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Stamford Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC22A
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

BFM3G1 Deutz Diesel Generator Set 1

About MingBang Intelligent Technology

Mingbang Co.,Ltd is one of the leading and largest world-wide producers and exporters for Diesel Generator (land diesel power generator&marine diesel generating set) and Gasoline Generator set from 1kva up to 2500kva. Transformed from a state owned enterprise and founded in 2005, Mingbang's Factory and generators assembling centers have more than two decades of experience in the design, research and manufacturing of diesel genset in strict compliance with ISO and CE standards. Up to being now, more than 20,000 sets of high quality generator set from mingbang have been working well in many fields including railways, oil fields, Schools, hospitals, banks, supermarkets, industries, tall buildings, sea ports and military bases etc.

BFM3G1 Deutz Diesel Generator Set 4

Deutz Diesel Generator Set Backup Safety Equipment 20KW 25KVA Small Diesel Gensets For House And Industrial Using

Main Features

Product Overview
1) Brand-new engine,w/start motor.
2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR.
3) Auto control panel with LCD display.
4) Engine mounted battery-charging alternator,Genset with battery charge of main supply.
5) Circuit Breaker,Exhaust Silencer.
6) Copper Radiator for 40℃ ambient temperature and double-deck cooling,with fan guard and front guard.
7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable.
8) Skid-mounted bottom 8 hours fuel tank.
9) Extemal recessed emergency stop button for extra safety.
10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system.

Our customers

FAQ:

Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: What is your MOQ of this item?
A: 1 set.
Q3: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: What is your company's available production capacity?
A: 50 Sets per Month.
Q5: What is the lead time?
A: 2-7 working days after received the 30%T/T deposit.
Q6: What are your payment terms?
A: 30% TT as deposit,70% TT before Shipment.
Q7: Does your generator have global warranty?
A:Yes, most of our products such as Cummins,Perkins and so on enjoy the global warranty service.

And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service.

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
