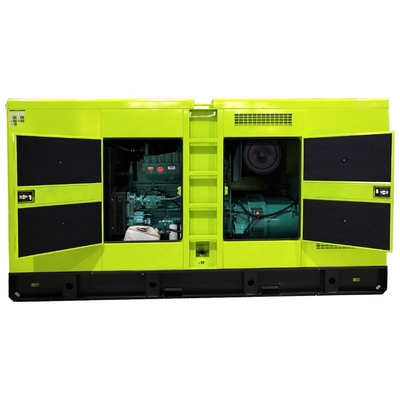

37KVA 30KW Deutz Diesel Generator Set

Name: 37KVA 30KW Deutz Diesel Generator Set
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: BFM3G1
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Deutz
Model Number:	BFM3G1
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union, T/T, D/P, L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

Deutz Diesel Generator 20KW

Rated Voltage::

230V/400V

Engine Model::

Deutz BFM3G2

Rated Current::

54A

Frequency::

50Hz/60Hz

Alternator::

MBC22A

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

1600*700*1150mm

Genset Weight::

600kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-B30

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

BFM3G2 Deutz Diesel Generator Set

37KVA Deutz Diesel Generator Set

37KVA deutz engine generator

Product Description

Deutz BFM3G1 diesel generator sets features:

High quality power generators with DEUTZ engines (Made in Germany) . The attractive super silent enclosures are weatherproof and well below the permitted noise emission standards significantly.

Engine Brands: Powered by Cummins,Powered by Perkins,Powered by Lovol,Powered by Deutz,Powered by Doosan, Powered by Mitsubishi, Powered by Yuchai or other
reliable Chinese engines such as Fawde and Laidong.
Rated output: 2 to 2,000kW/2 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Cooling method: closed water-cooled or air-cooled
Starting method: electric start or recoil start
Rated speed: 1,500/1,800/3,000/3,600rpm
Noise level: 56 to 75dB, 7 meters away

37KVA 30KW Deutz Diesel Generator Set 0

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-30
Prime Powder		30KW/37.5KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		54A
Genset Weight		600kg(Net)
Length x Width x Height (Engine) (mm)		16007001150
Voltage		400/230V
Frequency		50HZ
Deutz Engine Specification
Manufacturer		Dalian Deutz Engine Co., Ltd
Model		BFM3G2
Rated speed		1500rpm
Prime Powder		32KW/40KVA
Fuel Consumption		<=210g/KW.H
Lube oil capacity		7.5L
Bore (mm) x Stroke (mm)		98*105mm
Compression ratio		18.5:1
Displacement (litre)		3.2
Coolant capacity, L		10.2L
Configuration		4 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Stamford Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC22A
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

37KVA 30KW Deutz Diesel Generator Set 1

About MingBang Intelligent Technology

Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai

Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.

Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!

37KVA 30KW Deutz Diesel Generator Set 3

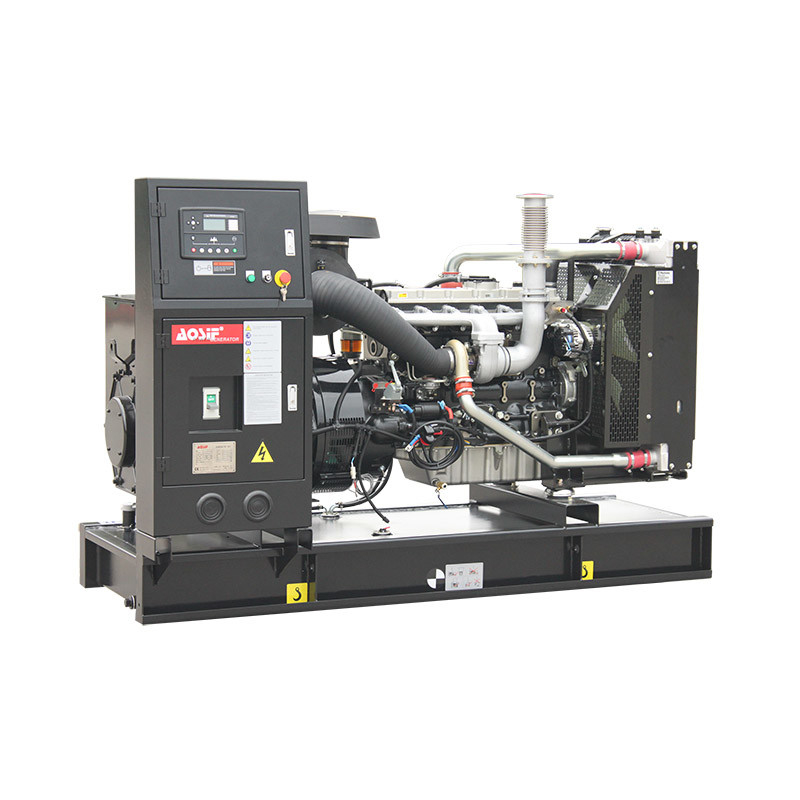

Prime Power 50HZ 37 KVA 30KW Open Tyep Deutz Diesel Generator BFM3G2 Deutz Engine

Main Features

Product Overview
1) Brand-new engine,w/start motor.
2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR.
3) Auto control panel with LCD display.
4) Engine mounted battery-charging alternator,Genset with battery charge of main supply.
5) Circuit Breaker,Exhaust Silencer.
6) Copper Radiator for 40℃ ambient temperature and double-deck cooling,with fan guard and front guard.
7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable.
8) Skid-mounted bottom 8 hours fuel tank.
9) Extemal recessed emergency stop button for extra safety.
10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system.
