Deutz Diesel Generator Set
Created with Pixso.

Low Noise 40KW BFM3T Deutz Diesel Generator Set

Low Noise 40KW BFM3T Deutz Diesel Generator Set

Brand Name: Deutz
Model Number: BFM3T
MOQ: 1PC
Price: Price:Negotiable
Payment Terms: Western Union, T/T, D/P, L/C
Supply Ability: 200pcs/month
Detail Information
Place of Origin:
China
Certification:
ISO 9001:14000,CE,EACC
Brand Name::
Deutz Diesel Generator 40KW
Rated Voltage::
230V/400V
Engine Model::
Deutz BFM3T
Rated Current::
72A
Frequency::
50Hz/60Hz
Alternator::
MBC22B
Control Panel::
Deepsea / Harsen / Smartgen
Certificate::
ISO 9001:14000,CE
ATS::
Optional
Delivery::
7-30 Days
Warranty Time::
1 Year
Genset Dimension::
1650*720*1150mm
Genset Weight::
680kgs
Speed::
1500rpm/1800rpm
Model Number::
MB-B20
Packaging Details:
Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.
Supply Ability:
200pcs/month
Highlight:

40KW Deutz Diesel Generator Set

,

BFM3T Deutz Diesel Generator Set

,

BFM3T deutz engine generator

Product Description

Deutz BFM3G1​​ diesel generator sets features:Power Generators with air-cooled DEUTZ engines have extra long service intervals (1.000 h, standard: 500 hours). Operationg at 100% bio-diesel (EN 14214) is possible.

Engine Brands: Powered by Cummins,Powered by Perkins,Powered by Lovol,Powered by Deutz,Powered by Doosan, Powered by Mitsubishi, Powered by Kubota, Powered by Yanmar or other.
Rated output: 2 to 2,000kW/2 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Cooling method: closed water-cooled or air-cooled
Starting method: electric start or recoil start
Rated speed: 1,500/1,800/3,000/3,600rpm
Noise level: 56 to 75dB, 7 meters away

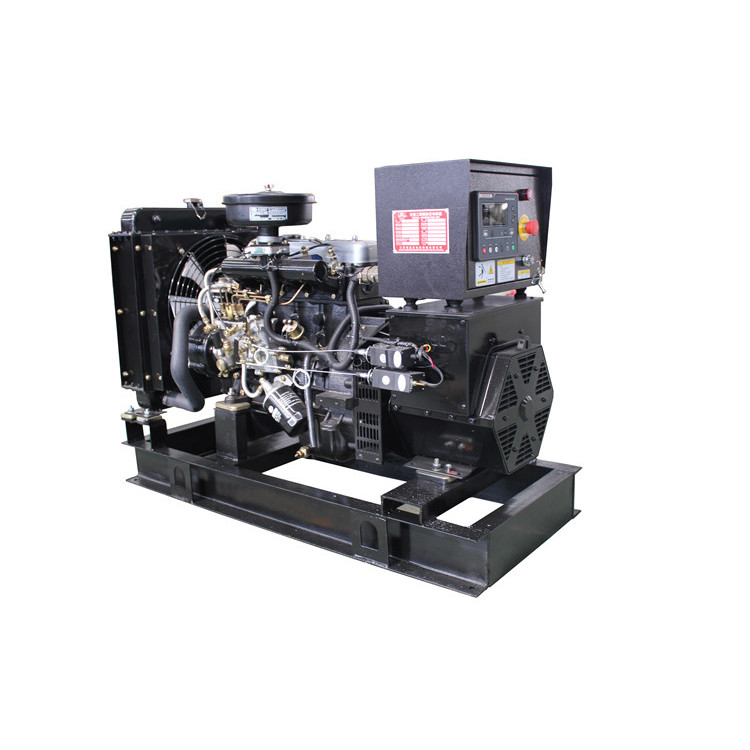

Low Noise  40KW BFM3T Deutz Diesel Generator Set 0

Manufacturer Changsha Mingbang Intelligent Technology Co.Ltd
Model MB-40
Prime Powder 40KW/50KVA
Power Factor COSΦ=0.8(lagging)
Max. Output current 72A
Genset Weight 680kg(Net)
Length x Width x Height (Engine) (mm) 1650*720*1150
Voltage 400/230V
Frequency 50HZ
Deutz Engine Specification
Manufacturer Dalian Deutz Engine Co., Ltd
Model BFM3T
Rated speed 1500rpm
Prime Powder 44KW/55KVA
Fuel Consumption <=210g/KW.H
Lube oil capacity 7.5L
Bore (mm) x Stroke (mm) 98*105mm
Compression ratio 18.5:1
Displacement (litre) 3.2
Coolant capacity, L 10.2L
Configuration 4 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling Liquid Cooled
Governor type Electronic
Starting voltage 24 Volts DC
Filtration system Air Filter/Fuel Filter/Oil Filter
Stamford Alternator Specification
Manufacturer Changsha Mingbang Intelligent Technology Co.Ltd
Model MBC22B
Voltage Regulator AVR
Voltage adjust range ±1%
Rated Voltage/Frequency/Factor 400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency 5%
No-load Voltage Adjust Range >=95%-105%
Insulation Class H
IP Protection 22
Excitation Type Blushless

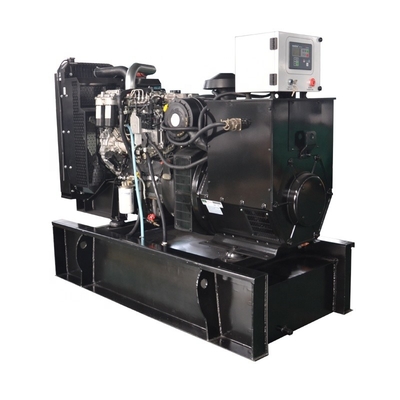

Low Noise  40KW BFM3T Deutz Diesel Generator Set 1Low Noise  40KW BFM3T Deutz Diesel Generator Set 2Low Noise  40KW BFM3T Deutz Diesel Generator Set 3

Why Us?

At present, thousands of Startlight generator sets are being reliably operated in fields like telecommunications, banking, security industry, airports, hospital, transportation, oil fields, military industry and the clients have been distributed around the globe. All staff in Startlight are sparing no efforts to make the Startlight brand a symbol for reliable quality, advanced technology, first-class performance, an environment friend, and long operating life.

We believe that the consideration is as important as innovative technology. The leading product is always based on the leading supporting services. We shall follow the philosophy to meet customer's demands and offer customers the genuine spare parts, technical consulting and installation guide, make equipment commissioning free of charge, rebuild generation set and train the person.

Services:
Before service
Our professional engineer will give you some consultation of technology and related planning before sale, such as selection of equipment, supporting facilities, the design of equipment room. We can also answer and solve the using problem you faced.

After sale service

  1. free guide to install and debugging
  2. Free training and consult
  3. Guiding how to protect your equipment
  4. We will set up clients' document, tracking service, regular inspection, maintenance for life
  5. We offers pure perennial spare parts and maintenance engineers will be ready to provide.

Low Noise  40KW BFM3T Deutz Diesel Generator Set 4

Deutz Diesel Generator Low Price 30kva 40kva Diesel Generator Price Small Silent Diesel Generator



Main Features

1)Easy operation,simple maintenance, Low cost.

2) Compact structure, high-strength chassis,beautiful design.

3) Good performance damping system, coperate more conveniently.

4) Compliance with international electrical safety standards of electrical system.

5) continue running 8 hours base tank.

6) High-performance maintenance-free batteries with isolation switch,it is more safety.

7) 50℃ radiator .

8) Forklift bottom hole design, easy to transport.

9) Industrial type muffler.

10) Noise reduction structure,Low overall noise.

11) Convenient power output interface and ATS Interface,satisfy customer's requires.

12) IP56 (control system).

13)The personalized design for user.

Our customers

Low Noise  40KW BFM3T Deutz Diesel Generator Set 5

More details for diesel generator sets ,please contact us any time



Your further inquiry will be welcome!!
