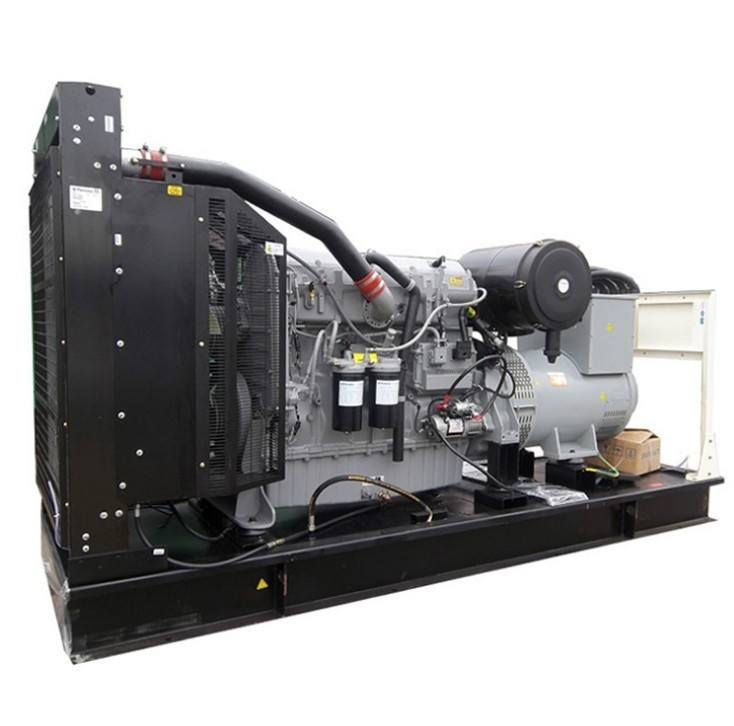

1000kW BFM3C Deutz Diesel Generator Set

Name: 1000kW BFM3C Deutz Diesel Generator Set
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: BFM3C
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Deutz
Model Number:	BFM3C
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union, T/T, D/P, L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

Deutz Diesel Generator 1000kW

Rated Voltage::

230V/400V

Engine Model::

Deutz BFM3C

Rated Current::

90A

Frequency::

50Hz/60Hz

Alternator::

BFM3C

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

1570×635×1190mm

Genset Weight::

730kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-B50

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

BFM3C Deutz Diesel Generator Set

1000kW Deutz Diesel Generator Set

BFM3C deutz engine generator

Product Description

Deutz BFM3G1 diesel generator sets features:Power Generators with air-cooled DEUTZ engines have extra long service intervals (1.000 h, standard: 500 hours). Operationg at 100% bio-diesel (EN 14214) is possible.

Engine Brands: Powered by Cummins,Powered by Perkins,Powered by Lovol,Powered by Deutz,Powered by Doosan, Powered by Mitsubishi, Powered by Yuchai, Powered by wechai or other.

1) Control system:

a) Automatic alarm system:alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil

pulls down, over speed, over load and over current

b) Operation display:

i) Unit voltage, three-phase load current and frequency display

ii) Water temperature, oil pressure display

iii) Fuel level, fuel temperature display

iv) Audible and visual alarm lamps and buzzers

1000kW BFM3C Deutz Diesel Generator Set 0

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-50
Prime Powder		45KW/56.25KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		90A
Genset Weight		730kg(Net)
Length x Width x Height (Engine) (mm)		1570×635×1190
Voltage		400/230V
Frequency		50HZ
Deutz Engine Specification
Manufacturer		Dalian Deutz Engine Co., Ltd
Model		BFM3C
Rated speed		1500rpm
Prime Powder		50KW/62.5KVA
Fuel Consumption		<=215g/KW.H
Lube oil capacity		8.3L
Bore (mm) x Stroke (mm)		98*105mm
Compression ratio		19:01
Displacement (litre)		3.2
Coolant capacity, L		10.2L
Configuration		4 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Stamford Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC22C
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

1000kW BFM3C Deutz Diesel Generator Set 1

Why Us?

At present, thousands of Startlight generator sets are being reliably operated in fields like telecommunications, banking, security industry, airports, hospital, transportation, oil fields, military industry and the clients have been distributed around the globe. All staff in Startlight are sparing no efforts to make the Startlight brand a symbol for reliable quality, advanced technology, first-class performance, an environment friend, and long operating life.

We believe that the consideration is as important as innovative technology. The leading product is always based on the leading supporting services. We shall follow the philosophy to meet customer's demands and offer customers the genuine spare parts, technical consulting and installation guide, make equipment commissioning free of charge, rebuild generation set and train the person.

1000kW BFM3C Deutz Diesel Generator Set 4

20kW, 24kW, 30kW To 1000kW ISO9001 High Voltage Open Type Deutz Diesel Engine Generator

Deutz Features:

.Withi integrated crank case, postposition gear chamber and point-line gear -meshing patent technology,the engine has the advantage of low noise.

.Wet cylinder number liner structure facilitates maintenance and repair.

.P7100 fuel pump,'p'Configuration injector and honeywell turbocharger provide better combustion,lower fuel consumption.

.Yuchai sealing technology inpton and valve oil seal,improving luve oil consumption.

.The 42crmo high pressure forged steel crankshaft,shaft diameter and fillet high-frequency quenching,improve fatigue strength and abrasive resistance.

.Based on the European engine development requirments,the engine overhaul period more than 12000hours.
