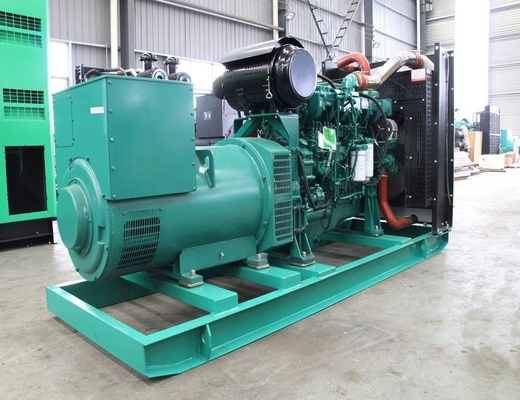

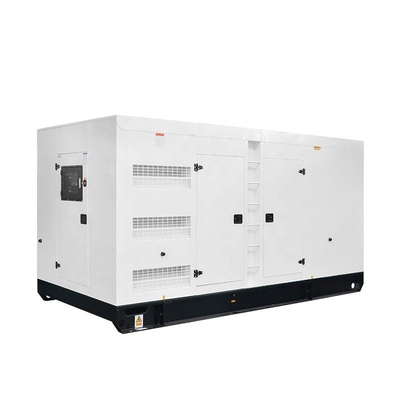

Deutz BF4M1013ECG1 100KW Diesel Generator set open/silent type

Name: Deutz BF4M1013ECG1 100KW Diesel Generator set open/silent type
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: BF4M1013ECG1
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Deutz
Model Number:	BF4M1013ECG1
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

Deutz Diesel Generator 100KW

Rated Voltage::

230V/400V

Engine Model::

Deutz BF4M1013ECG1

Rated Current::

180A

Frequency::

50Hz/60Hz

Alternator::

MBC27C

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

2350×900×1500mm

Genset Weight::

1250kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-B100

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

100KW Single Cylinder Diesel Generator

BF4M1013ECG1 Single Cylinder Diesel Generator

Deutz Engine 100KW Diesel Generator

Product Description

100KW Single Cylinder Air Cooled Soundproof Diesel Generator Set With Deutz Engine With Overload Protection

Deutz BF4M1013ECG1 diesel generator sets features:Power Generators with oil-cooled DEUTZ engines have extra long service intervals (1.000 h, standard: 500 hours). Operationg at 100% bio-diesel (EN 14214) is possible.
Supply standard collocation:

a) Diesel engine with all accessories, 3 filter, electric systems

b) Alternator

c) Steel structure

d) Fan and water tank cooling system

e) Flange connector

f) 12 / 24V starting motor and charge engine

g) Air cleaner, fuel cleaner, oil cleaner

h) On-board control panel

i) MCCB air conservation switch

j) 12 / 24V starting accumulator and battery line

k) Set shock absorber

l) High-efficient silencer

Deutz BF4M1013ECG1 100KW Diesel Generator set open/silent type 0

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-100
Prime Powder		100KW/125KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		180A
Genset Weight		1250kg(Net)
Length x Width x Height (Engine) (mm)		2350×900×1500
Voltage		400/230V
Frequency		50HZ
Deutz Engine Specification
Manufacturer		Dalian Deutz Engine Co., Ltd
Model		BF4M1013ECG1
Rated speed		1500rpm
Prime Powder		103KW/127.5KVA
Fuel Consumption		<=215g/KW.H
Lube oil capacity		8.3L
Bore (mm) x Stroke (mm)		108×130mm
Compression ratio		19:01
Displacement (litre)		3.2
Coolant capacity, L		10.2L
Configuration		4 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC27C
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

Deutz BF4M1013ECG1 100KW Diesel Generator set open/silent type 1

About our factory
Mingbang Co.,Ltd is one of the leading and largest world-wide producers and exporters for Diesel Generator (land diesel power generator&marine diesel generating set) and Gasoline Generator set from 1kva up to 2500kva. Transformed from a state owned enterprise and founded in 2005, Mingbang's Factory and generators assembling centers have more than two decades of experience in the design, research and manufacturing of diesel genset in strict compliance with ISO and CE standards. Up to being now, more than 20,000 sets of high quality generator set from mingbang have been working well in many fields including railways, oil fields, Schools, hospitals, banks, supermarkets, industries, tall buildings, sea ports and military bases etc.

Deutz BF4M1013ECG1 100KW Diesel Generator set open/silent type 4

100KW Single Cylinder Air Cooled Soundproof Diesel Generator Set With Deutz Engine With Overload Protection

Deutz BF4M1013ECG1 100KW Diesel Generator set open/silent type 5

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
