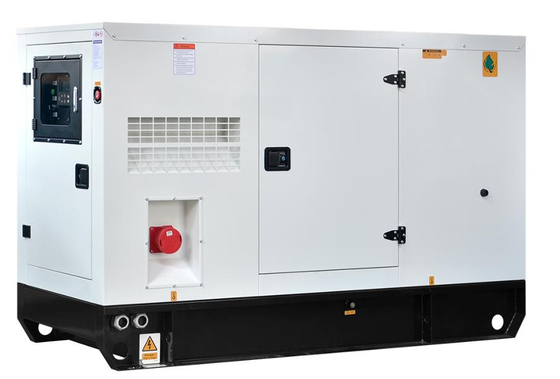

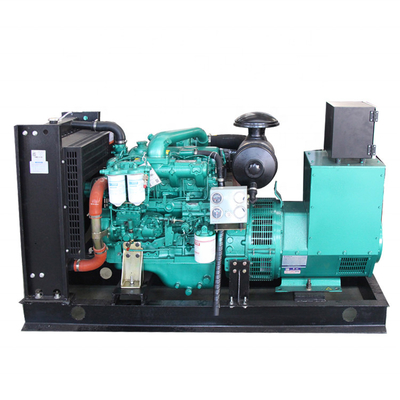

Charging Equipment open/Silent Type Diesel Generator Set with SDEC engine

Name: Charging Equipment open/Silent Type Diesel Generator Set with SDEC engine
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: SC4H95D2
Price: 591,700.00 USD
Availability: InStock

Brand Name:	SDEC SDEC
Model Number:	SC4H95D2
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

SDEC Diesel Generator 50KW

Rated Voltage::

230V/400V

Engine Model::

SC4H95D2

Rated Current::

90A

Frequency::

50Hz/60Hz

Alternator::

MBC22C

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

2150*750*1135mm

Genset Weight::

1440kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-B50

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

Diesel Generator Set with SDEC engine

SDEC engine diesel generator

Charging Equipment diesel generator

Product Description

SDEC SDEC diesel generator sets features:engines are worldwide well known because of their quality and reliability.

A diesel generator set consists of a water-cooled or air-cooled diesel engine driving a three-phase or single-item generator (electric ball) with a controller and a common base.In addition to the open frame type is silent type, four - wheel mobile trailer type, two - wheel mobile generator set.In addition to the controller and ATS double power switching switch, the automatic control of the generator can be realized.The rotating speed is 1500 and 1800 rotations, corresponding to 50HZ and 60HZ two specifications.According to customer needs, we customize brushless and brush motor to meet customer needs.

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-S50
Prime Power		55KW/68.75KVA
Standby Power		60KW/75KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		99A
Genset Weight		1400KG
Length x Width x Height (Engine) (mm)		21507501135
Voltage		400/230
Frequency		50HZ
Shanghchai Engine Specification
Brand		SDEC
Model		SC4H95D2
Rated speed		1500rpm
Prime Power		62KW/77.5KVA
Standby Power		68KW/85KVA
Fuel Consumption		<=204g/KW.H
Lube oil capacity		15 L
Bore (mm) x Stroke (mm)		105×124 mm
Compression ratio		16.5:1
Displacement (litre)		4.3L
Coolant capacity, L		/
Configuration		4 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Stamford Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC22C
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

Charging Equipment open/Silent Type Diesel Generator Set with SDEC engine 1
About our factory

Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai

Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.
Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!

Charging Equipment open/Silent Type Diesel Generator Set with SDEC engine 4

Diesel Generator Set AC Three Phase Output Type And 220V Rated Voltage Silent Diesel Generator Set 50kw 90kva

Charging Equipment open/Silent Type Diesel Generator Set with SDEC engine 5

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
