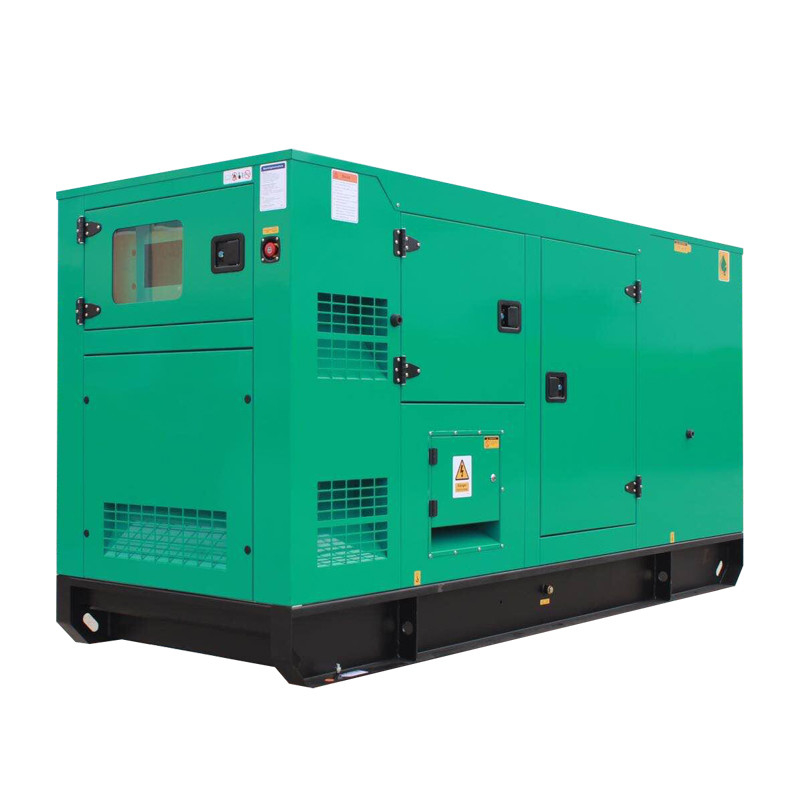

70kw SDEC Emergency Electric Generator set

Name: 70kw SDEC Emergency Electric Generator set
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: SC4H115D2
Price: 591,700.00 USD
Availability: InStock

Brand Name:	SDEC SDEC
Model Number:	SC4H115D2
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

SDEC Diesel Generator 70KW

Rated Voltage::

230V/400V

Engine Model::

SC4H115D2

Rated Current::

126A

Frequency::

50Hz/60Hz

Alternator::

MBC27A

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

2150×750×1200mm

Genset Weight::

1420kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-S70

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

70kw Emergency Electric Generator

SC4H115D2 Emergency Electric Generator

70kw emergency standby generator

Product Description

SDEC SDEC SC4H115D2 diesel generator sets features:

Mingbang POWER is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 2000kw at competitive prices.

70kw SDEC Emergency Electric Generator set 0

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-S70
Prime Powder		70KW/87.5KVA
Standby Powder		75KW/93.75KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		126 A
Genset Weight		1420KG
Length x Width x Height (Engine) (mm)		2150×750×1200
Voltage		400/230
Frequency		50HZ
Engine Specification
Brand		SDEC
Model		SC4H115D2
Rated speed		1500rpm
Prime Powder		78KW/97.5KVA
Standby Powder		86KW/107.5KVA
Fuel Consumption		<=204g/KW.H
Lube oil capacity		15 L
Bore (mm) x Stroke (mm)		105×124 mm
Compression ratio		17.3:1
Displacement (litre)		4.3L
Coolant capacity, L		/
Configuration		4 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC27A
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

70kw SDEC Emergency Electric Generator set 1
About our factory

Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai

Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.
Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!

70kw SDEC Emergency Electric Generator set 3

Emergency Diesel Generators Electric Motor 70kw Industrial Diesel Genset Silent Diesel Generator Price

The main products, like gensets,concrete mixer truck, and pumps, have been exported to Australia, the Middle East, Malaysia, Mongolia, Russia, etc. we have 7 dealers worldwide. With the tenet, "Credit First, Mutual Benefit and Common Development", Best power has become an excellent enterprise which is deeply trusted by customers.

70kw SDEC Emergency Electric Generator set 4

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
