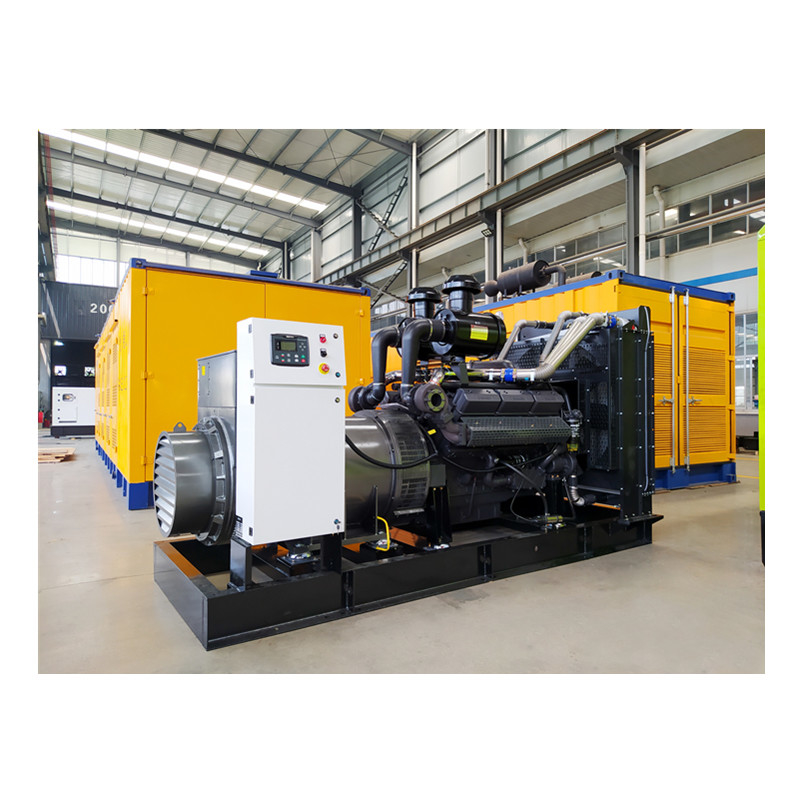

187kva Three Phase SDEC Diesel Generator sets

Name: 187kva Three Phase SDEC Diesel Generator sets
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: SC7H230D2
Price: 591,700.00 USD
Availability: InStock

Brand Name:	SDEC SDEC
Model Number:	SC7H230D2
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

SDEC Diesel Generator 150KW

Rated Voltage::

230V/400V

Engine Model::

SC7H230D2

Rated Current::

270A

Frequency::

50Hz/60Hz

Alternator::

MBC27H

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

2750×1020×1600mm

Genset Weight::

2200kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-S150

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

187kva Three Phase Diesel Generator

150KW Three Phase Diesel Generator

187kva 3 Phase Diesel Generator

Product Description

Air Cooled Diesel Engine Brand New Multi-Cylinder Diesel Engine For Three Phase Diesel Generator 150KW 187kva

SDEC SDEC SC7H230D2 diesel generator sets features:

150kw rainproof electric generator

With SDEC engine SC7H230D2

Less diesel consumption

Turbocharge aspiration

Reasonable and reliable emergency power generation

Warranty 12 months or 1000 hours warranty time

187kva Three Phase SDEC Diesel Generator sets 0

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-S150
Prime Powder		140KW/175KVA
Standby Powder		155KW/193.75KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		271A
Genset Weight		2200KG
Length x Width x Height (Engine) (mm)		2750×1020×1600
Voltage		400/230
Frequency		50HZ
SDEC Engine Specification
Brand		SDEC
Model		SC7H230D2
Rated speed		1500rpm
Prime Powder		154KW/192.5KVA
Standby Powder		170KW/212.5KVA
Fuel Consumption		<=193g/KW.H
Lube oil capacity		20 L
Bore (mm) x Stroke (mm)		105×124 mm
Compression ratio		16:1
Displacement (litre)		6.5L
Coolant capacity, L		/
Configuration		6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC27H
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

187kva Three Phase SDEC Diesel Generator sets 1

187kva Three Phase SDEC Diesel Generator sets 2

Our Advantages

Mine Industry Emergency Power Use Engine Soundproof Electric Genset Silent Power Diesel Generator Sets Water Cooling 3

1. Professional diesel generator manufacturer with more than 10 years' experience;
2. Higher quality lower price;
3. CE certificated, ,ISO9001-2008;
4. Global joint warranty service;

5. Fast delivery time.

187kva Three Phase SDEC Diesel Generator sets 4

Air Cooled Diesel Engine Brand New Multi-Cylinder Diesel Engine For Three Phase Diesel Generator 150KW 187kva

Mingbang POWER is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 2000kw at competitive prices.
Besides generators, we also product the refer product include lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switch gear.

187kva Three Phase SDEC Diesel Generator sets 5

Your further inquiry will be welcome!!
