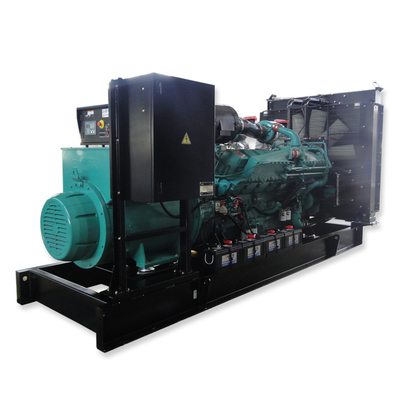

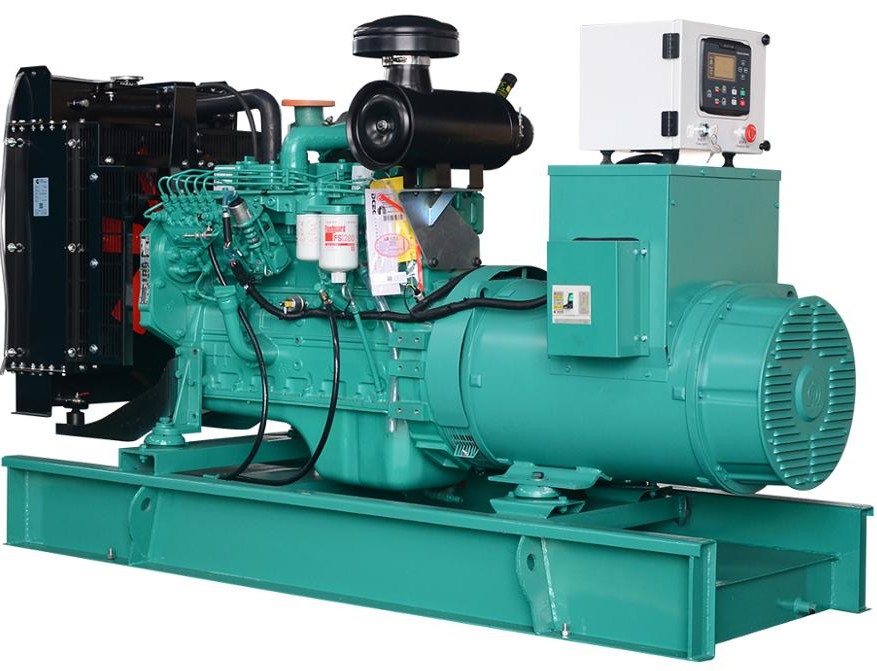

Electric SC8D280D2 180KW 3 Phase Ac Generator with SDEC engine

Name: Electric SC8D280D2 180KW 3 Phase Ac Generator with SDEC engine
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: SC8D280D2
Price: 591,700.00 USD
Availability: InStock

Brand Name:	SDEC SDEC
Model Number:	SC8D280D2
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

SDEC Diesel Generator 180KW

Rated Voltage::

230V/400V

Engine Model::

SC8D280D2

Rated Current::

270A

Frequency::

50Hz/60Hz

Alternator::

MBC27I

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

2850×1140×1660mm

Genset Weight::

2350kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-S180

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

180KW 3 Phase Ac Generator

SC8D280D2 3 Phase Ac Generator

180KW 3 phase ac generator

Product Description

SDEC SDEC SC8D280D2 diesel generator sets features:

Rated frequency 50/60 HZ

Rated voltage 230/400V, 220/380V, according to customers

Power factor: 0.8(lag)

Super Silent type Noise level at 7m ≤65DB

Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)

Starting system: Electric start 12V/24V

Protection System: High water temperature protection, Engine oil alarm, Over load Protection

Over frequency protection, Emergency stop

Control System: Digital Control Panel; Meter Panel

Option: ATS,AMF,Trailer,Container

Electric SC8D280D2 180KW 3 Phase Ac Generator with SDEC engine 0

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-S180
Prime Powder		165KW/206.25KVA
Standby Powder		185KW/231.25KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		324 A
Genset Weight		2350KG
Length x Width x Height (Engine) (mm)		2850×1140×1660
Voltage		400/230
Frequency		50HZ
SEDC Engine Specification
Brand		SDEC
Model		SC8D280D2
Rated speed		1500rpm
Prime Powder		185KW/231.25KVA
Standby Powder		204KW/255KVA
Fuel Consumption		<=193g/KW.H
Lube oil capacity		22 L
Bore (mm) x Stroke (mm)		114×144
Compression ratio		17:1
Displacement (litre)		6.5L
Coolant capacity, L		/
Configuration		6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC27I
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

Electric SC8D280D2 180KW 3 Phase Ac Generator with SDEC engine 1

Electric SC8D280D2 180KW 3 Phase Ac Generator with SDEC engine 2

Electric SC8D280D2 180KW 3 Phase Ac Generator with SDEC engine 3

Brushless AC Generator Pakistan Price 50kw Brushless Motor 3 Phase Ac Generator Head Dynamo Alternator

Our factory has CCEC, DCEC, VOLVO, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. MB brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.

Electric SC8D280D2 180KW 3 Phase Ac Generator with SDEC engine 4

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
