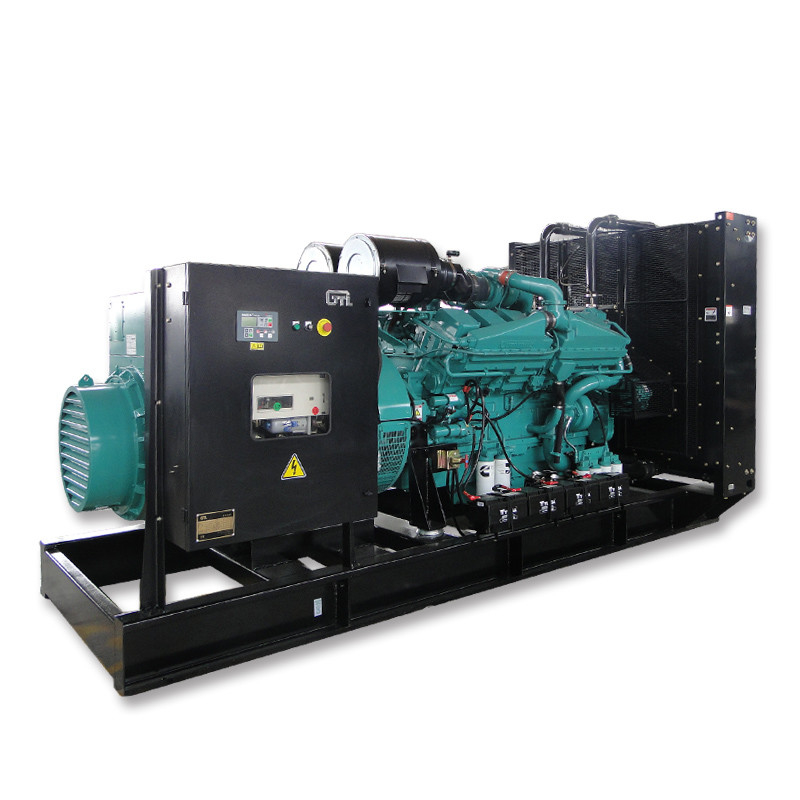

SC9D340D2 SDEC Engine Electric Diesel Generator set 200KW 250KVA

Name: SC9D340D2 SDEC Engine Electric Diesel Generator set 200KW 250KVA
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: SC9D340D2
Price: 591,700.00 USD
Availability: InStock

Brand Name:	SDEC SDEC
Model Number:	SC9D340D2
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

SDEC Diesel Generator 200KW

Rated Voltage::

230V/400V

Engine Model::

SC9D340D2

Rated Current::

360A

Frequency::

50Hz/60Hz

Alternator::

MBC27J

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

2850×1140×1660mm

Genset Weight::

2350kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-S200

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

SC9D340D2 Engine Electric Diesel Generator

SC9D340D2 200KW Diesel Generator

360A Electric Diesel Generator

Product Description

SDEC SDEC SC9D340D2 diesel generator sets features:

We produce and export 7-1800kw diesel generator sets. Diesel generator sets are widely used in field construction, high-rise buildings, schools, hospitals, industrial and mining enterprises, farms, villages and other places where electricity is needed.

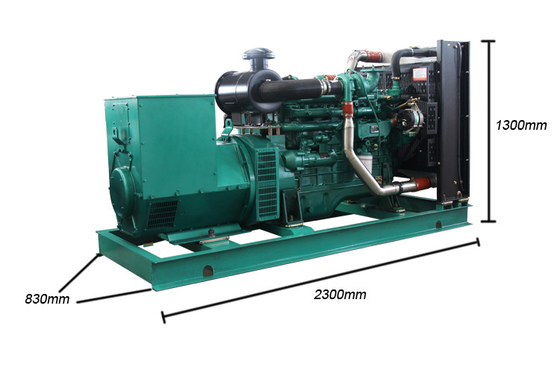

SC9D340D2 SDEC Engine Electric Diesel Generator set 200KW 250KVA 0

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-S200
Prime Powder		210KW/262.5KVA
Standby Powder		230KW/287.5KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		360 A
Genset Weight		2350KG
Length x Width x Height (Engine) (mm)		2850×1145×1660
Voltage		400/230
Frequency		50HZ
SDEC Engine Specification
Brand		SDEC
Model		SC9D340D2
Rated speed		1500rpm
Prime Powder		228KW/285KVA
Standby Powder		250KW/312.5KVA
Fuel Consumption		<=195g/KW.H
Lube oil capacity		27 L
Bore (mm) x Stroke (mm)		114×144
Compression ratio		17:1
Displacement (litre)		8.82L
Coolant capacity, L		/
Configuration		6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC27J
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

SC9D340D2 SDEC Engine Electric Diesel Generator set 200KW 250KVA 1

SC9D340D2 SDEC Engine Electric Diesel Generator set 200KW 250KVA 2

Factory Price Soundproof Type 12kw 15 Kva Electric Diesel Generator For Sale Diesel Standby Generator

Main Features

Product feature of Low Noise Electric Start Diesel Generator SDEC 200kw:

1. High strength base frame material can significantly reduce the vibration during operation.

2. Marvelous spray coating technology can effectively prevent against rain and noise.

3. Special sound absorbing material and system can maximally reduce noise to 65dBA/7m

SC9D340D2 SDEC Engine Electric Diesel Generator set 200KW 250KVA 3

Your further inquiry will be welcome!!
