350KVA Diesel Electricity Generator set with SDEC Engine for Company or Data center

Name: 350KVA Diesel Electricity Generator set with SDEC Engine for Company or Data center
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: SC13G420D2
Price: 3,000.00 USD
Availability: InStock

Brand Name:	SDEC SDEC Engine
Model Number:	SC13G420D2
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Name::

350KVA Diesel Electricity Generator

Rated Voltage::

230V/400V

Engine Model::

SC13G420D2

Rated Current::

540A

Frequency::

50Hz/60Hz

Alternator::

MBC27J

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

3150×1370×1860mm

Genset Weight::

3020kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-S300

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

SC13G420D2 Diesel Generators Sets

SC13G420D2 Engine Diesel Generator

SC13G420D2 300KW Diesel Generator

Product Description

SDEC SDEC SC13G420D2 diesel generator sets features:

Cooling system with large size radiator and expansion tank
Heavy- duty chassis
Built-in insulation and anti-vibration block
Free-maintenance battery
AC alternator for battery charger
Battery charger
Cable and bracket for battery
Battery isolation switch
Main circuit breaker
Automatic start control system
Fuel_ Water separator
Fuel level sensor
Oil sump pump
Full load test
Comprehensive security protection
Emergency stop button

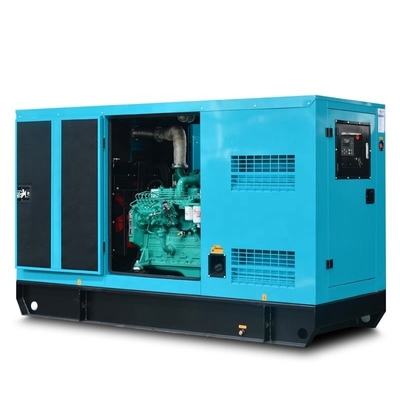

350KVA Diesel Electricity Generator set with SDEC Engine for Company or Data center 0

Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MB-S300
Prime Powder		280KW/350KVA
Standby Powder		305KW/381.25KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		540 A
Genset Weight		3020KG
Length x Width x Height (Engine) (mm)		3150×1370×1860
Voltage		400/230
Frequency		50HZ
Engine Specification
Brand		SDEC
Model		SC12E460D2
Rated speed		1500rpm
Prime Powder		307KW/383.75KVA
Standby Powder		338KW/422.5KVA
Fuel Consumption		<=192g/KW.H
Lube oil capacity		37L
Bore (mm) x Stroke (mm)		128×153
Compression ratio		15.55:1
Displacement (litre)		14L
Coolant capacity, L		/
Configuration		6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Electronic
Starting voltage		24 Volts DC
Filtration system		Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer		Changsha Mingbang Intelligent Technology Co.Ltd
Model		MBC4E
Voltage Regulator		AVR
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		22
Excitation Type		Blushless

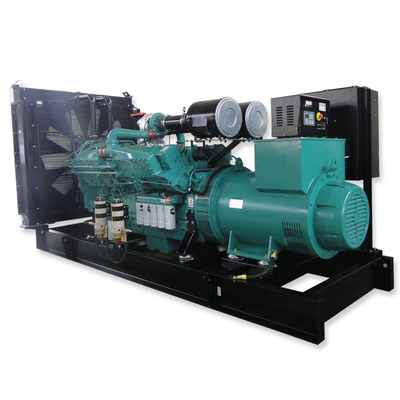

350KVA Diesel Electricity Generator set with SDEC Engine for Company or Data center 1

Our factory
Mingbang power is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 2000kw at competitive prices.
Besides generators, we also product the refer product include lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switch gear.
350KVA Diesel Electricity Generator set with SDEC Engine for Company or Data center 2

Trailer Type Diesel Generators For Sale Water Cooled Diesel China Cheap Generator Trailer Type Diesel Generator

Our Service

1. Ensure good quality, good package for transporation and deliver on time during the production phase;
2. Manging sea freight to customer's port of destination;
3. Be responsible for the after-sales service.
