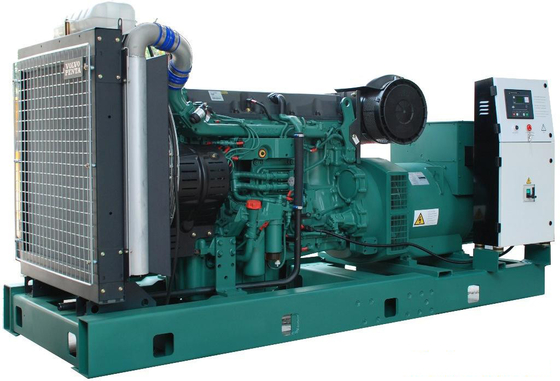

550KW SC27G830D2 SDEC engine Diesel Generator

550KW SC27G830D2 SDEC engine Diesel Generator

Brand Name: SDEC
Model Number: SC27G830D2
MOQ: 1PC
Price: Price:Negotiable
Payment Terms: Western Union,T/T,D/P,L/C
Supply Ability: 200pcs/month
Detail Information
Place of Origin:
China
Certification:
ISO 9001:14000,CE,EACC
Brand Name::
SDEC Diesel Generator 550KW
Rated Voltage::
230V/400V
Engine Model::
SC27G830D2
Rated Current::
990A
Frequency::
50Hz/60Hz
Alternator::
MBC5A
Control Panel::
Deepsea / Harsen / Smartgen
Certificate::
ISO 9001:14000,CE
ATS::
Optional
Delivery::
7-30 Days
Warranty Time::
1 Year
Genset Dimension::
3700×1700×2150mm
Genset Weight::
4200kgs
Speed::
1500rpm/1800rpm
Model Number::
MB-S550
Packaging Details:
Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.
Supply Ability:
200pcs/month
Highlight:

550KW SDEC Diesel Generator

,

550KW SDEC Diesel Generator

,

SC27G830D2 SDEC Diesel Generator

Product Description

SDEC SDEC SC27G830D2 diesel generator sets features:

Genset specs:
Engine Brands: Powered by Cummins,Powered by Perkins,Powered by Lovol,Powered by Deutz,Powered by Doosan, Powered by Mitsubishi, Powered by Kubota, Powered by Yanmar or other
reliable Chinese engines such as Fawde and Laidong.
Rated output: 2 to 2,000kW/2 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Cooling method: closed water-cooled or air-cooled
Starting method: electric start or recoil start
Rated speed: 1,500/1,800/3,000/3,600rpm
Noise level: 56 to 75dB, 7 meters away

550KW SC27G830D2 SDEC engine Diesel Generator 0

Manufacturer Changsha Mingbang Intelligent Technology Co.Ltd
Model MB-S550
Prime Powder 500KW/625KVA
Standby Powder 550KW/687.5KVA
Power Factor COSΦ=0.8(lagging)
Max. Output current 990 A
Genset Weight 4200KG
Length x Width x Height (Engine) (mm) 3700×1700×2150
Voltage 400/230V
Frequency 50HZ
Engine Specification
Manufacturer SDEC
Model SC27G830D2
Rated speed 1500rpm
Prime Powder 555KW/693.75KVA
Standby Powder 610KW/762.5KVA
Fuel Consumption <=202g/KW.H
Lube oil capacity 65L
Bore (mm) x Stroke (mm) 135×155
Compression ratio 16:1
Displacement (litre) 26.6L
Coolant capacity, L /
Configuration 12 V type ,four-stroke, Turbocharged, Charge Air Cooled
Cooling Liquid Cooled
Governor type Electronic
Starting voltage 24 Volts DC
Filtration system Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer Changsha Mingbang Intelligent Technology Co.Ltd
Model MBC5E
Voltage Regulator AVR
Voltage adjust range ±1%
Rated Voltage/Frequency/Factor 400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency 5%
No-load Voltage Adjust Range >=95%-105%
Insulation Class H
IP Protection 22
Excitation Type Blushless

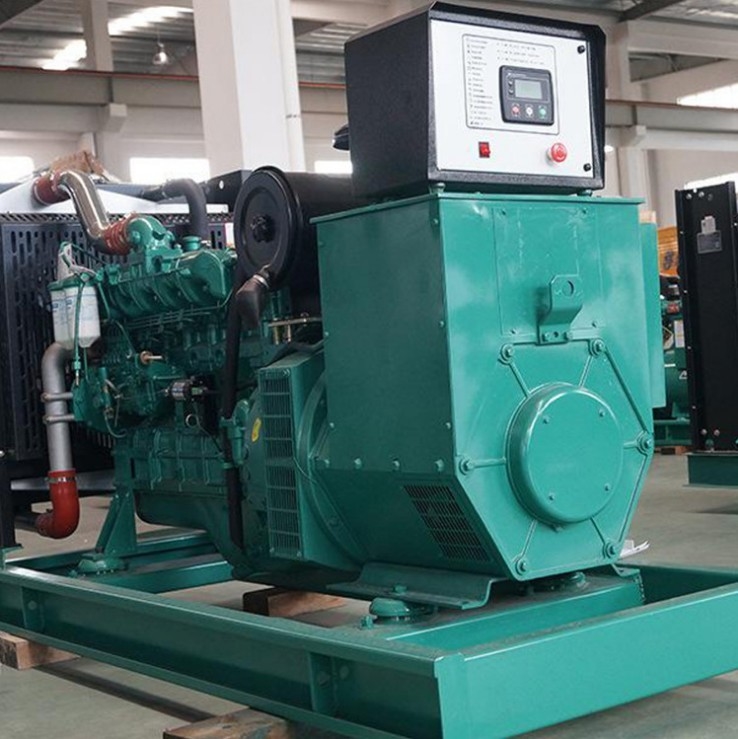

550KW SC27G830D2 SDEC engine Diesel Generator 1550KW SC27G830D2 SDEC engine Diesel Generator 2550KW SC27G830D2 SDEC engine Diesel Generator 3



Our factory

Mingbang Co.,Ltd is one of the leading and largest world-wide producers and exporters for Diesel Generator (land diesel power generator&marine diesel generating set) and Gasoline Generator set from 1kva up to 2500kva. Transformed from a state owned enterprise and founded in 2005, Mingbang's Factory and generators assembling centers have more than two decades of experience in the design, research and manufacturing of diesel genset in strict compliance with ISO and CE standards. Up to being now, more than 20,000 sets of high quality generator set from mingbang have been working well in many fields including railways, oil fields, Schools, hospitals, banks, supermarkets, industries, tall buildings, sea ports and military bases etc.



550KW SC27G830D2 SDEC engine Diesel Generator 4



Open Diesel Generator SDEC Diesel Generator Sets 400kw 800kw Diesel Generating Sets

FAQ:



Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: What is your MOQ of this item?
A: 1 set.
Q3: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: What is your company's available production capacity?
A: 50 Sets per Month.
Q5: What is the lead time?
A: 2-7 working days after received the 30%T/T deposit.
Q6: What are your payment terms?
A: 30% TT as deposit,70% TT before Shipment.
Q7: Does your generator have global warranty?
A:Yes, most of our products such as Cummins,Perkins and so on enjoy the global warranty service.

And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service.



More details for diesel generator sets ,please contact us any time



Your further inquiry will be welcome!!
