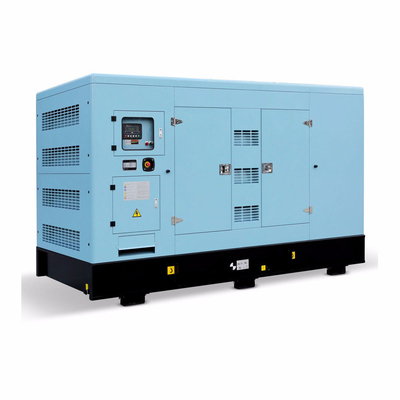

Yangdong Diesel Generator Set for Charging Silent Type

Name: Yangdong Diesel Generator Set for Charging Silent Type
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: YD385D
Price: 5,000.00 USD
Availability: InStock

Brand Name:	Yangdong
Model Number:	YD385D
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union, T/T, D/P, L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

Yangdong Small Diesel Generator 10KW

Rated Voltage::

230V/400V

Engine Model::

SC33W1150D2

Rated Current::

14.4A

Frequency::

50Hz/60Hz

Alternator::

MBC164B

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

1900X730X1130mm

Genset Weight::

600kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-YD8

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

14.4A Small Diesel Generators

10KW Small Diesel Generators

14.4A mini silent generator

Product Description

Yangdong YD385D diesel generator sets features:

Rated frequency 50/60 HZ

Rated voltage 230/400V, 220/380V, according to customers

Power factor: 0.8(lag)

Super Silent type Noise level at 7m ≤65DB

Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)

Starting system: Electric start 12V/24V

Protection System: High water temperature protection, Engine oil alarm, Over load Protection

Over frequency protection, Emergency stop

Control System: Digital Control Panel; Meter Panel

Option: ATS,AMF,Trailer,Container

Manufacturer		Jiangsu Mingbang Intelligent Technology Co.Ltd
Model		MB-YD10
Prime Power		9KW/11.25KVA
Standby Power		10KW/12.5KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		18A
Genset Weight		600 KG(NET)
Length x Width x Height (Engine) (mm)		1900X730X1130mm
Rated Voltage		400/230V
Frequency		50HZ
Engine Specification
Manufacturer		Yangdong
Model		YD385D
Rated speed		1500rpm
Prime Power		10KW/12.5KVA
Standby Power		11KW/13.75KVA
Fuel Consumption		<=255g/KW.H
Lube oil capacity		5.1 L
Bore (mm) x Stroke (mm)		85x90
Compression ratio		18:1
Displacement (litre)		1.532 L
Coolant capacity, L		3.5 L
Configuration		3 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Mechanical
Starting voltage		24 Volts DC
Filtration system		Air Filter,Fuel Filter,Oil Filter
Alternator Specification
Manufacturer		Jiangsu Mingbang Intelligent Technology Co.Ltd
Model		MBC164B
Voltage Regulator		AVR(Auto-voltage stabilization)
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		better than 5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		23
Excitation Type		Single bearing, Brushless, Self-excited

Yangdong Diesel Generator Set for Charging Silent Type 0

Our factory
Mingbang Co.,Ltd is one of the leading and largest world-wide producers and exporters for Diesel Generator (land diesel power generator&marine diesel generating set) and Gasoline Generator set from 1kva up to 2500kva. Transformed from a state owned enterprise and founded in 2005, Mingbang's Factory and generators assembling centers have more than two decades of experience in the design, research and manufacturing of diesel genset in strict compliance with ISO and CE standards. Up to being now, more than 20,000 sets of high quality generator set from mingbang have been working well in many fields including railways, oil fields, Schools, hospitals, banks, supermarkets, industries, tall buildings, sea ports and military bases etc.

Small Diesel Generators 2020 Factory Wholesale Small Super Silent Chinese Diesel Generators

Painting materials
rust removing in pickling tank(10minutes)------unoil(30mins)-----rinsing(3mins)----wathsetting(10mins)----rinsing(5mins)-----parkerising(20mins)----rinsing----blow dry-----stoving----pylons----spray paint(adopt static flame paint)-----Oven(170degree/20mins)-----draw a charge---inserting coil.

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
