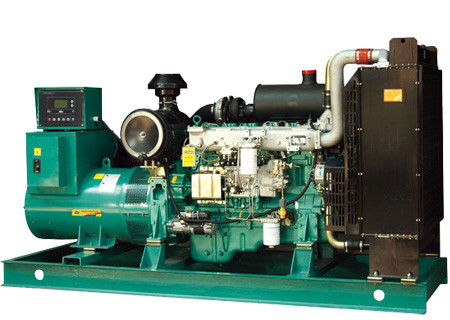

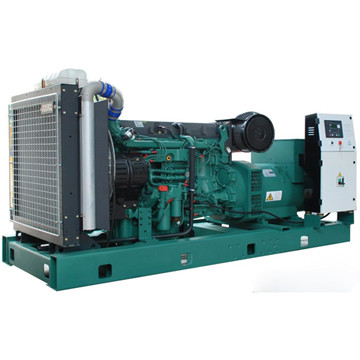

12kw 21.6kVA Brushless Diesel Generator sets

Name: 12kw 21.6kVA Brushless Diesel Generator sets
Brand: Changsha Mingbang Intelligent Technology Co., Ltd.
SKU: YD480D
Price: 591,700.00 USD
Availability: InStock

Brand Name:	Yangdong
Model Number:	YD480D
MOQ:	1PC
Price:	Price:Negotiable
Payment Terms:	Western Union,T/T,D/P,L/C
Supply Ability:	200pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:14000,CE,EACC

Brand Name::

Yangdong Small Diesel Generator 12KW

Rated Voltage::

230V/400V

Engine Model::

YD480D

Rated Current::

21.6A

Frequency::

50Hz/60Hz

Alternator::

MBC164B

Control Panel::

Deepsea / Harsen / Smartgen

Certificate::

ISO 9001:14000,CE

ATS::

Optional

Delivery::

7-30 Days

Warranty Time::

1 Year

Genset Dimension::

2100x730x1130mm

Genset Weight::

680kgs

Speed::

1500rpm/1800rpm

Model Number::

MB-YD12

Packaging Details:

Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.

Supply Ability:

200pcs/month

Highlight:

21.6kVA brushless diesel generator

12kw brushless diesel generator

21.6kVA Soundproof diesel generator

Product Description

Yangdong YD480D diesel generator sets features:

Maximum 20.0 kVA 380 Volts, @50hz, 1500rpm
AVR delivers non fluctuating power
Panel type digital control panel
12 Volt / 24 Volt electric starter ensures easy starting
Low oil pressure shut down system
Low fuel cut out protection
Low water cut out engine protection
Enclosed structure ensures quieter operation
Alternator (Dynamo) excitation mode brushless self excitation
Three-phase output meets differing requirements
Four Cylinder, four stroke, water cooled diesel engine
8 hours running @ full load on a single tank of fuel
Dual access doors for easy maintenance
Optional automatic or manual transfer switches available
ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers
Noise Level (dBA @ 7m)
All ratings are at sea level

12kw 21.6kVA Brushless Diesel Generator sets 0

Manufacturer		Jiangsu Mingbang Intelligent Technology Co.Ltd
Model		MB-YD12
Prime Powder		11KW/13.75KVA
Standby Powder		12KW/15KVA
Power Factor		COSΦ=0.8(lagging)
Max. Output current		21.6A
Genset Weight		680 KG(NET)
Length x Width x Height (Engine) (mm)		2100x730x1130mm
Rated Voltage		400/230V
Frequency		50HZ
Engine Specification
Manufacturer		Yangdong
Model		YD480D
Rated speed		1500rpm
Prime Powder		12KW/12.5KVA
Standby Powder		14KW/17.5KVA
Fuel Consumption		<=250.5g/KW.H
Lube oil capacity		5 L
Bore (mm) x Stroke (mm)		80x90
Compression ratio		18:1
Displacement (litre)		1.809L
Coolant capacity, L		4 L
Configuration		4 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling		Liquid Cooled
Governor type		Mechanical
Starting voltage		24 Volts DC
Filtration system		Air Filter,Fuel Filter,Oil Filter
Alternator Specification
Manufacturer		Jiangsu Mingbang Intelligent Technology Co.Ltd
Model		MBC164D
Voltage Regulator		AVR(Auto-voltage stabilization)
Voltage adjust range		±1%
Rated Voltage/Frequency/Factor		400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency		better than 5%
No-load Voltage Adjust Range		>=95%-105%
Insulation Class		H
IP Protection		23
Excitation Type		Single bearing, Brushless, Self-excited

12kw 21.6kVA Brushless Diesel Generator sets 1

Our factory
Mingbang Co.,Ltd is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 2000kw at competitive prices.
Besides generators, we also product the refer product include lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switch gear.
Brushless AC Generator 12kw 21.6kVA Silent Soundproof Brushless Alternator Diesel Generator
12kw 21.6kVA Brushless Diesel Generator sets 3

Our Service

1. Ensure good quality, good package for transporation and deliver on time during the production phase;

2. Manging sea freight to customer's port of destination;

3. Be responsible for the after-sales service.

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
