Three Phase AC Generator
Created with Pixso.

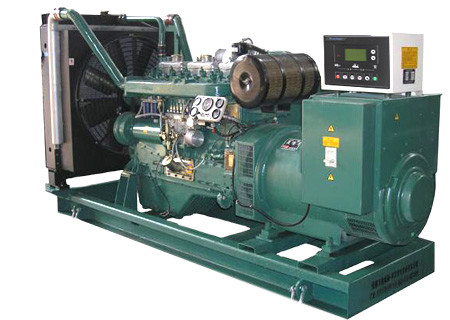

Weichai 12M55D1870E310 Engine 1500KW Three Phase AC Generator diesel generator sets

Weichai 12M55D1870E310 Engine 1500KW Three Phase AC Generator diesel generator sets

Brand Name: Weichai engine
Model Number: 12M55D1870E310
MOQ: 1PC
Price: Price:Negotiable
Payment Terms: Western Union,T/T,D/P,L/C
Supply Ability: 200pcs/month
Detail Information
Place of Origin:
China
Certification:
ISO 9001:14000,CE,EACC
Brand Name::
Weichai Open Diesel Generator 1500KW
Rated Voltage::
230V/400V
Engine Model::
12M55D1870E310
Rated Current::
1800A
Frequency::
50Hz/60Hz
Alternator::
MBV6F
Control Panel::
Deepsea / Harsen / Smartgen
Certificate::
ISO 9001:14000,CE
ATS::
Optional
Delivery::
7-30 Days
Warranty Time::
1 Year
Genset Dimension::
4600mm×2100mm×2450mm
Genset Weight::
9600kgs
Speed::
1500rpm/1800rpm
Model Number::
MB-1500
Packaging Details:
Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.
Supply Ability:
200pcs/month
Highlight:

1500KW Three Phase AC Generator

,

12M55D1870E310 Three Phase AC Generator

,

1500KW 3 phase ac generator

Product Description

Weichai 12M55D1870E310​ diesel generator sets features:

24 hours continuous stable power supply, in extreme or normal temperatures from -10 °C to 50 °C.

Sutech Power generators are design to work 24*7 in extreme temperature conditions with minimum maintenance requirement.

In some cases CHP & CCHP (Combined heat and power/ Combined cooling heat and Power) to utilized heat.

Sutech Power specially designs Diesel and Gas CHP/CCHP Power generators to provide hot water or steam as well as Power.

Lower noise level is important.

Sutech power generators are made to be environment friendly with low emission and lower noise level

Reliable AMF & ATS System (Auto mains failure & Auto transfer System) which can start and stop generators automatically with load transfer in case of city supply on or off.



Weichai 12M55D1870E310 Engine 1500KW Three Phase AC Generator diesel generator sets 0

Manufacturer Changsha Mingbang Intelligent Technology Co.Ltd
Model MB-1500
Prime Powder 1500KW/1875KVA
Power Factor COSΦ=0.8(lagging)
Max. Output current 2700A
Genset Weight 13770KG
Length x Width x Height (Engine) (mm) 5970×2775×3310mm
Voltage 400/230V
Frequency 50HZ
Engine Specification
Manufacturer Weichai Engine
Model 12M55D1870E310
Rated speed 1800rpm
Prime Powder 1700KW/2125KVA
Standby Powder 1870KW/2337.5KVA
Fuel Consumption ≤210g/kw.h
Lube oil capacity 237 L
Bore (mm) x Stroke (mm) 150×185mm
Displacement (litre) 61
Coolant capacity, L /
Configuration 12 cylinder V-type, four stroke, water air cooling
Cooling Liquid Cooled
Governor type Electronic
Starting voltage 24 Volts DC
Filtration system Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer Changsha Mingbang Intelligent Technology Co.Ltd
Model MBV7D
Voltage Regulator AVR
Voltage adjust range ±1%
Rated Voltage/Frequency/Factor 400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency 5%
No-load Voltage Adjust Range >=95%-105%
Insulation Class H
IP Protection 22
Excitation Type Blushless

Weichai 12M55D1870E310 Engine 1500KW Three Phase AC Generator diesel generator sets 1

Rated power Engine Alternator Control panel
24kw~1500kw Cummins Stamford
Leroy somer
Marathon
Mecc alte
ABB
Chinese alternators
Deepsea
ComAp
Harsen
Smartgen
36kw~18+00kw Perkins
68kw~560kw Volvo
20kw~200kw Deutz
40kw-2200kw Yuchai
50kw-2200kw Weichai
540kw-1900kw Mitsubishi
50kw-800kw SDEC
650kw~2200kw Chinese engine


Weichai 12M55D1870E310 Engine 1500KW Three Phase AC Generator diesel generator sets 2

Our factory

Mingbang is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 2000kw at competitive prices.
Besides generators, we also product the refer product include lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switch gear.

Weichai 12M55D1870E310 Engine 1500KW Three Phase AC Generator diesel generator sets 1

125kva Diesel Generators Diesel Generator Price Set 100kw With Price Set Open Type With Weichai Engine

FAQ Of Weichai diesel generators prices

1.Which parameters you need to know?
a.We design the product according to your request, such as:
Power, Working Life, Water/Air-Cooler, Open Frame , Silent and Wheel
2.How to deal with broken machine?
a.We provide professional technical response to your question, we make
Sure the configuration, feature, optional item can work.
Maintenance Return your parts to us (Freight by yourself)
b. Enclose more parts when shipment
Parts Reply to you as quickly as possible

3. What do we warranty?
One year quality warranty.
Offer 24 hours service on telephone helpline. Whichever comes first.
a.During guarantee period, we provide free quick-wear parts for
problem caused by our quality of production or raw material.
b.After expiration, we provide spare parts maintenance for half price.
4.What about Guarantee?
a.Good reputation for reliable quality and reasonable price
b.Advanced production line by skilled workers
c.Two hours strictly testing of the machine before shipment
d.CE ISO BV

Weichai 12M55D1870E310 Engine 1500KW Three Phase AC Generator diesel generator sets 4

More details for diesel generator sets ,please contact us any time



Your further inquiry will be welcome!!
