Brand Name: | Weichai engine |
Model Number: | 12M55D2210E310 |
MOQ: | 1PC |
Price: | Price:Negotiable |
Payment Terms: | Western Union,T/T,D/P,L/C |
Supply Ability: | 200pcs/month |

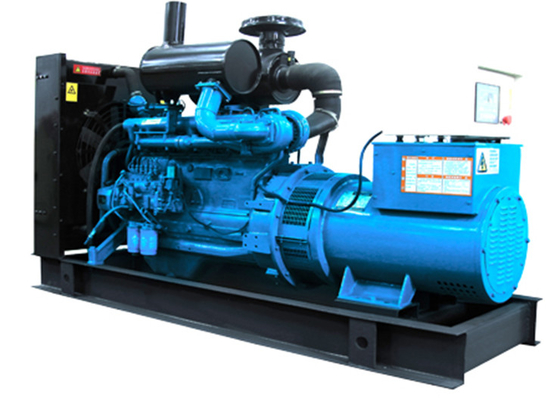

Weichai 12M55D2210E310 diesel generator sets features:
Product Overview | |
1) Brand-new engine,w/start motor. | |
2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR. | |
3) Auto control panel with LCD display. | |
4) Engine mounted battery-charging alternator,Genset with battery charge of main supply. | |
5) Circuit Breaker,Exhaust Silencer. | |
6) Copper Radiator for 40℃ ambient temperature and double-deck cooling,with fan guard and front guard. | |
7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable. | |
8) Skid-mounted bottom 8 hours fuel tank. | |
9) Extemal recessed emergency stop button for extra safety. | |
10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system. |
Manufacturer | Changsha Mingbang Intelligent Technology Co.Ltd | ||||||
Model | MB-1800 | ||||||
Prime Power | 1800KW/2250KVA | ||||||
Power Factor | COSΦ=0.8(lagging) | ||||||
Max. Output current | 3240A | ||||||
Genset Weight | 15000KG | ||||||
Length x Width x Height (Engine) (mm) | 6400*2700*2700mm | ||||||
Voltage | 400/230V | ||||||
Frequency | 50HZ | ||||||
Engine Specification | |||||||
Manufacturer | Weichai Engine | ||||||
Model | 12M55D2210E310 | ||||||
Rated speed | 1800rpm | ||||||
Prime Power | 1989KW/2486.25KVA | ||||||
Standby Power | 2210KW/2762.5KVA | ||||||
Fuel Consumption | ≤196g/kw.h | ||||||
Lube oil capacity | 200 L | ||||||
Bore (mm) x Stroke (mm) | 180/215mm | ||||||
Displacement (litre) | 68 | ||||||
Coolant capacity, L | / | ||||||
Configuration | 12 cylinder V-type, four stroke, water air cooling | ||||||
Cooling | Liquid Cooled | ||||||
Governor type | Electronic | ||||||
Starting voltage | 24 Volts DC | ||||||
Filtration system | Air Filter/Fuel Filter/Oil Filter | ||||||
Alternator Specification | |||||||
Manufacturer | Changsha Mingbang Intelligent Technology Co.Ltd | ||||||
Model | MBV7G | ||||||
Voltage Regulator | AVR | ||||||
Voltage adjust range | ±1% | ||||||
Rated Voltage/Frequency/Factor | 400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire | ||||||
Steady-state Frequency | 5% | ||||||
No-load Voltage Adjust Range | >=95%-105% | ||||||
Insulation Class | H | ||||||
IP Protection | 22 | ||||||
Excitation Type | Blushless |
Rated power | Engine | Alternator | Control panel |
24kw~1500kw | Cummins | Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators |
Deepsea ComAp Harsen Smartgen |
36kw~18+00kw | Perkins | ||
68kw~560kw | Volvo | ||
20kw~200kw | Deutz | ||
40kw-2200kw | Yuchai | ||
50kw-2200kw | Weichai | ||
540kw-1900kw | Mitsubishi | ||
50kw-800kw | SDEC | ||
650kw~2200kw | Chinese engine |
Our factory
Mingbang is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 2000kw at competitive prices.
Besides generators, we also product the refer product include lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switch gear.
Diesel Generator Sets Silent Type Diesel Generator 1800kw 2250kva Electric Generator Made In China For Plant Use
Q1: How is your Package & Payment & Delivery Date & Warranty?
A.1) Package: Plastic fiMB (free of charge) or wooden case (add USD200 for wooden)
A.2) Payment: by 30% T/T as deposit, 70% balance should be paid 10 days before shipment. Or 100% L/C at sight.
A.3) Delivery: 7-25 days after we get the down payment.
A.4) Warranty: Guarantee for one year or 1000 running hours (whichever come first shall apply) from installed date. During the guarantee period. Such as Cummins or Perkins generators. They are international brands and the after-sale service is worldwide. You can contact your country's after-sale or contact us for repairment. When replacing spare parts, please kindly take some pictures to describe the problems. We will solve it ASAP.
Q2: Any advantages about your company?
Answers: MB Brand Diesel Generators with following advantages:
----MOQ is 1 set and we could finis more than 100sets/month
---- Middle-high Positioning;
---- 7-25days Lead-time;
---- Got the ISO and CE certificate; OEM Certifications
---- High quality with the best price can help you get more benefit and beat your competitors;
---- Powered by Cummins, Perkins, Detuz etc. famous engine brands optional;
---- Open, Soundproof Canopy, Container, Trailer etc. for your choose.
d.CE ISO BV
More details for diesel generator sets ,please contact us any time
Your further inquiry will be welcome!!
