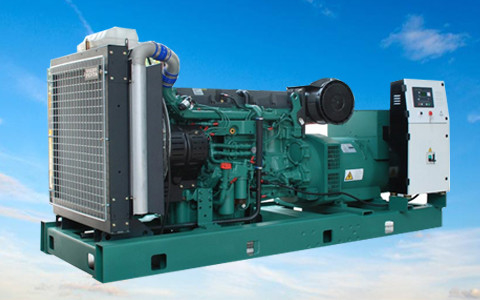

600KW 750kva Emergency Diesel Generators set Shanghai lingzhong(SME)

600KW 750kva Emergency Diesel Generators set Shanghai lingzhong(SME)

Brand Name: Shanghai lingzhong(SME)
Model Number: S6R2-PTAA-C
MOQ: 1PC
Price: Price:Negotiable
Payment Terms: Western Union,T/T,D/P,L/C
Supply Ability: 200pcs/month
Detail Information
Place of Origin:
China
Certification:
ISO 9001:14000,CE,EACC
Brand Name::
Shanghai Lingzhong(SME) Diesel Generator 600KW
Rated Voltage::
230V/400V
Engine Model::
S6R2-PTAA-C
Rated Current::
1080A
Frequency::
50Hz/60Hz
Alternator::
MBC5E
Control Panel::
Deepsea / Harsen / Smartgen
Certificate::
ISO 9001:14000,CE
ATS::
Optional
Delivery::
7-30 Days
Warranty Time::
1 Year
Genset Dimension::
4500×1750×2360mm
Genset Weight::
5500kgs
Speed::
1500rpm/1800rpm
Model Number::
MB-600
Packaging Details:
Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.
Supply Ability:
200pcs/month
Highlight:

750kva Emergency Diesel Generators

,

600KW Emergency Diesel Generators

,

S6R2-PTAA-C Emergency Diesel Generators

Product Description

Shanghai lingzhong(SME) S6R2-PTAA-C​​​ diesel generator sets features:

1,Best choice for Continuous power or Prime power, Backup power or Standby power

2,Easy to install and maintain, even for new users.

3,Premium quality with 1 years warranty and low noise, less than 70dB.

4,Widely applications. Portable power for Hotel, Medical clinic, Healthcare & Hospitals, Airports, Commercial & Public Buildings, Data center, Residential & Utilities, Hotels, Aquatic Centers, Greenhouses, Industrial & Manufacturing, Agriculture, Landfills, Sewage & Water Treatment, Power Stations, Government, and also some remote locations, construction sites, events.

5,Professional manufacturer with 20 years experience, certified to CE and ISO9001, you can be assured of a good quality products with a best possible price.Welcome your enquiry at any time.




Manufacturer Changsha Mingbang Intelligent Technology Co.Ltd
Model MB-600
Prime Powder 600KW/750KVA
Standby Powder 660KW/825KVA
Power Factor COSΦ=0.8(lagging)
Max. Output current 1080A
Genset Weight 5500KG(Net)
Length x Width x Height (Engine) (mm) 4500×1750×2360mm
Voltage 400/230V
Frequency 50HZ
Engine Specification
Manufacturer Shanghai lingzhong(SME) Engine Co. Ltd
Model S6R2-PTAA-C
Rated speed 1500rpm
Prime Powder 645KW/806.25KVA
Standby Powder 710KW/887.5KVA
Fuel Consumption ≤213g/kw.h
Lube oil capacity 135L
Bore (mm) x Stroke (mm) 170×220
Compression ratio 14:05
Displacement (litre) 29.96L
Coolant capacity, L /
Configuration 6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling Liquid Cooled
Governor type Electronic
Starting voltage 24 Volts DC
Filtration system Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer Changsha Mingbang Intelligent Technology Co.Ltd
Model MBV6A
Voltage Regulator AVR
Voltage adjust range ±1%
Rated Voltage/Frequency/Factor 400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency 5%
No-load Voltage Adjust Range >=95%-105%
Insulation Class H
IP Protection 22
Excitation Type Blushless
Rated power Engine Alternator Control panel
24kw~1500kw Cummins Stamford
Leroy somer
Marathon
Mecc alte
ABB
Chinese alternators
Deepsea
ComAp
Harsen
Smartgen
36kw~18+00kw Perkins
68kw~560kw Volvo
20kw~200kw Deutz
40kw-2200kw Yuchai
50kw-2200kw Weichai
540kw-1900kw Mitsubishi
50kw-800kw SDEC
650kw~2200kw Chinese engine


600KW 750kva Emergency Diesel Generators set Shanghai lingzhong(SME) 0600KW 750kva Emergency Diesel Generators set Shanghai lingzhong(SME) 1

Our factory

Mingbang Co.,Ltd is one of the leading and largest world-wide producers and exporters for Diesel Generator (land diesel power generator&marine diesel generating set) and Gasoline Generator set from 1kva up to 2500kva. Transformed from a state owned enterprise and founded in 2005, Mingbang's Factory and generators assembling centers have more than two decades of experience in the design, research and manufacturing of diesel genset in strict compliance with ISO and CE standards. Up to being now, more than 20,000 sets of high quality generator set from mingbang have been working well in many fields including railways, oil fields, Schools, hospitals, banks, supermarkets, industries, tall buildings, sea ports and military bases etc.

600KW 750kva Emergency Diesel Generators set Shanghai lingzhong(SME) 2

New Powered By Shanghai Lingzhong Engine 600KW Standby Power 750kva Diesel Generator



We are manufacturer!!!


Diesel generator power range from 8kw-2000kw

Gas generator power range from 10kw-1000kw

Engine brand :Doosan,Weichai ,yuchai ,MTU,SDEC,Jichai,Volvo,Perkins,ricardo and so on .

Alternator brand :Stamford,Marathon,Lerory Somer and so on .

Control module:Smartgen,CoMap,Deepsea and so on

FAQ Of Shanghai Lingdong diesel generators prices

<<<<<Changsha Mingbang Intelligent Technology Co., Ltd.>>>>>>>


1.Mingbang is devoted to the R&D and manufacturing of diesel generator sets since 2005

2. Mingbang new factory covers an area of 5042 square meters located in Jiang du industrial park of Yang zhou city.

3.Mingbang quality certified by ISO9001 & ISO14001 Management System to guarantee high quality products and service.

5.Mingbang maintaining long term strategic friendship cooperation with domestic and abroad famous manufactures of Cummins, Perkins, Doosan, SDEC, Mitsubishi(SME), Deutz, Wuxi Wandi, Leroysomer, Stamford, and Marathon etc.

6.We have so wide products ranges from 5kva to 3000kva for the diesel generator set; power from 25kva to 1500kva for gas generator set;

7.Soundproof/weather proof type, container type generator set; movable, vehicle type generator sets. Regarding to the electrical control systems, it covers Auto control panel, Synchronization panels, ATS etc.

8.Mingbang can also provide customized solution due to customer requirements upon our standard product supply in order to meet the demand of market. To focus on global market, create mingbang as international brand, and constantly improve our quality level and maximize customer profitability is our unchangeable promise and eternal pursuit.

600KW 750kva Emergency Diesel Generators set Shanghai lingzhong(SME) 3

More details for diesel generator sets ,please contact us any time



Your further inquiry will be welcome!!
