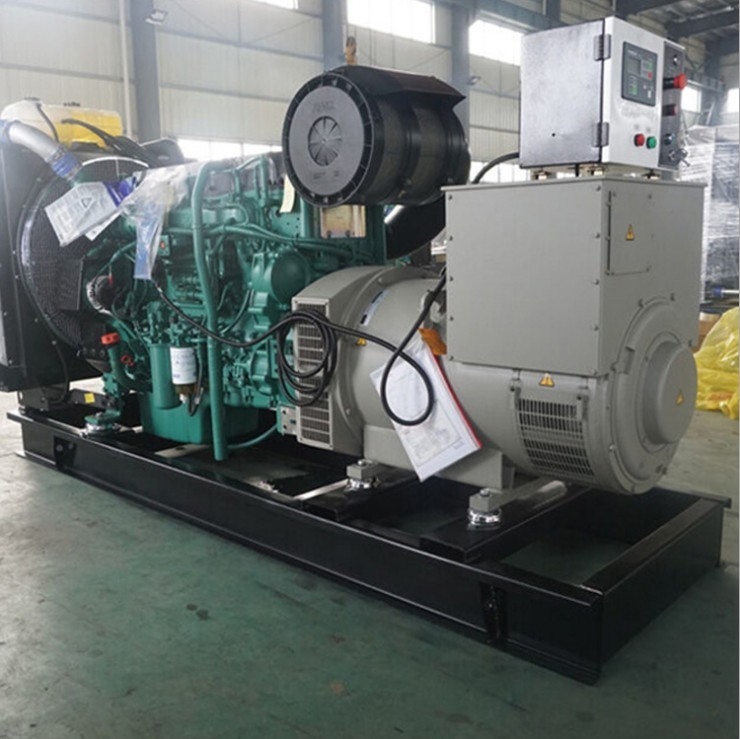

Shanghai Lingzhong(SME) Industrial 1200KW 1500KVA Diesel Generator set genset

Shanghai Lingzhong(SME) Industrial 1200KW 1500KVA Diesel Generator set genset

Brand Name: Shanghai Lingzhong(SME)
Model Number: S12R-PTAA2-C
MOQ: 1PC
Price: Price:Negotiable
Payment Terms: Western Union,T/T,D/P,L/C
Supply Ability: 200pcs/month
Detail Information
Place of Origin:
China
Certification:
ISO 9001:14000,CE,EACC
Brand Name::
Shanghai Lingzhong Diesel Generator 1200KW
Rated Voltage::
230V/400V
Engine Model::
S12R-PTAA2-C
Rated Current::
2160A
Frequency::
50Hz/60Hz
Alternator::
MBV7B
Control Panel::
Deepsea / Harsen / Smartgen
Certificate::
ISO 9001:14000,CE
ATS::
Optional
Delivery::
7-30 Days
Warranty Time::
1 Year
Genset Dimension::
5960*2500*2820mm
Genset Weight::
12000kgs
Speed::
1500rpm/1800rpm
Model Number::
MB-1200
Packaging Details:
Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.
Supply Ability:
200pcs/month
Highlight:

50KVA Air Cooled Diesel Generator

,

1200KW 50 kva diesel generator

,

50KVA 1200kw diesel generator

Product Description



Shanghai lingdong S12R-PTAA2-C​​​​ diesel generator sets features:


Genset specs:
Engine Brands: Powered by Cummins,Powered by Perkins,Powered by Lovol,Powered by Deutz,Powered by Doosan, Powered by Mitsubishi, Powered by Kubota, Powered by Yanmar or other
reliable Chinese engines such as Fawde and Laidong.
Rated output: 2 to 2,000kW/2 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Cooling method: closed water-cooled or air-cooled
Starting method: electric start or recoil start
Rated speed: 1,500/1,800/3,000/3,600rpm
Noise level: 56 to 75dB, 7 meters away

Shanghai Lingzhong(SME) Industrial 1200KW 1500KVA Diesel Generator set genset 0

Manufacturer Changsha Mingbang Intelligent Technology Co.Ltd
Model MB-1200
Prime Powder 1200KW/1500KVA
Standby Powder 1320KW/1650KVA
Power Factor COSΦ=0.8(lagging)
Max. Output current 2160A
Genset Weight 12000KG(Net)
Length x Width x Height (Engine) (mm) 5960*2500*2820mm
Voltage 400/230V
Frequency 50HZ
Engine Specification
Manufacturer Shanghai Lingzhong Engine Co. Ltd
Model S12R-PTAA2-C
Rated speed 1500rpm
Prime Powder 1277KW/1596.25KVA
Standby Powder 1404KW/1755KVA
Fuel Consumption ≤213g/kw.h
Lube oil capacity 240L
Bore (mm) x Stroke (mm) 170×180
Compression ratio 13.5:1
Displacement (litre) 49L
Coolant capacity, L /
Configuration 12 cylinder V type ,four-stroke, Turbocharged, Charge Air Cooled
Cooling Liquid Cooled
Governor type Electronic
Starting voltage 24 Volts DC
Filtration system Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer Changsha Mingbang Intelligent Technology Co.Ltd
Model MBV7B
Voltage Regulator AVR
Voltage adjust range ±1%
Rated Voltage/Frequency/Factor 400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency 5%
No-load Voltage Adjust Range >=95%-105%
Insulation Class H
IP Protection 22
Excitation Type Blushless
Rated power Engine Alternator Control panel
24kw~1500kw Cummins Stamford
Leroy somer
Marathon
Mecc alte
ABB
Chinese alternators
Deepsea
ComAp
Harsen
Smartgen
36kw~18+00kw Perkins
68kw~560kw Volvo
20kw~200kw Deutz
40kw-2200kw Yuchai
50kw-2200kw Weichai
540kw-1900kw Mitsubishi
50kw-800kw SDEC
650kw~2200kw Chinese engine


Shanghai Lingzhong(SME) Industrial 1200KW 1500KVA Diesel Generator set genset 1

Our factory

Mingbang Co.,Ltd is one of the leading and largest world-wide producers and exporters for Diesel Generator (land diesel power generator&marine diesel generating set) and Gasoline Generator set from 1kva up to 2500kva. Transformed from a state owned enterprise and founded in 2005, Mingbang's Factory and generators assembling centers have more than two decades of experience in the design, research and manufacturing of diesel genset in strict compliance with ISO and CE standards. Up to being now, more than 20,000 sets of high quality generator set from mingbang have been working well in many fields including railways, oil fields, Schools, hospitals, banks, supermarkets, industries, tall buildings, sea ports and military bases etc.

Shanghai Lingzhong(SME) Industrial 1200KW 1500KVA Diesel Generator set genset 2

Industrial Price 50HZ 50KVA Water Cooled Ricardo Diesel Generator With Volvo Perkins Engine



7-1800kw diesel generator with shanghai lingzhong engine

We produce and export 7-1800kw diesel generator sets. Diesel generator sets are widely used in field construction, high-rise buildings, schools, hospitals, industrial and mining enterprises, farms, villages and other places where electricity is needed.

FAQ Of Shanghai Lingzhong diesel generators prices

Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: What is your MOQ of this item?
A: 1 set.
Q3: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: What is your company's available production capacity?
A: 50 Sets per Month.
Q5: What is the lead time?
A: 2-7 working days after received the 30%T/T deposit.
Q6: What are your payment terms?
A: 30% TT as deposit,70% TT before Shipment.
Q7: Does your generator have global warranty?
A:Yes, most of our products such as Cummins,Perkins and so on enjoy the global warranty service.

And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service.


Shanghai Lingzhong(SME) Industrial 1200KW 1500KVA Diesel Generator set genset 3

More details for diesel generator sets ,please contact us any time



Your further inquiry will be welcome!!
