products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
SDEC Diesel Generator Sets
Created with Pixso.

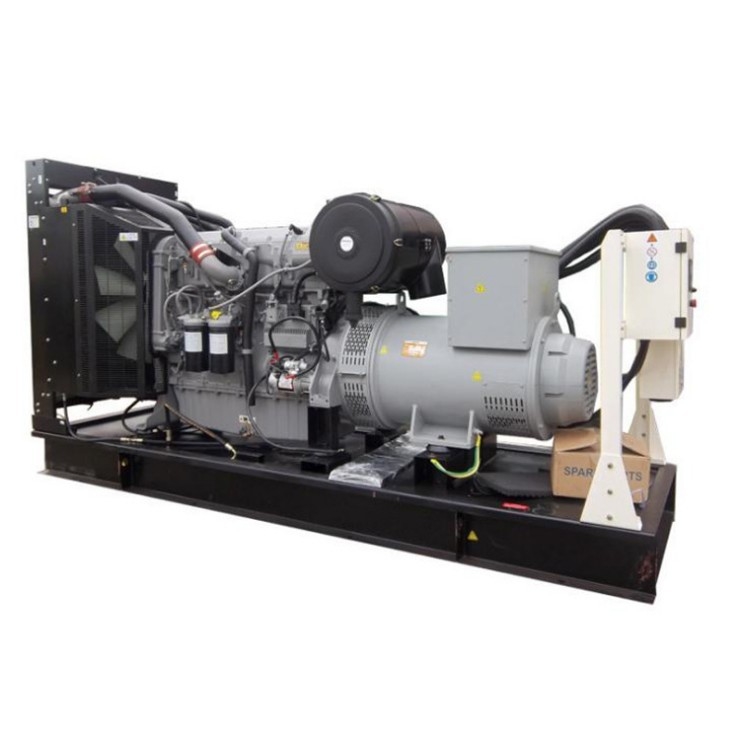

S12R-PTAA2-C 1500kva 1200kw Shanghai Lingzhong SME Diesel Generator Set

S12R-PTAA2-C 1500kva 1200kw Shanghai Lingzhong SME Diesel Generator Set

Brand Name: Shanghai lingzhong(SME)
Model Number: S12R-PTAA2-C
MOQ: 1PC
Price: Price:Negotiable
Payment Terms: Western Union,T/T,D/P,L/C
Supply Ability: 200pcs/month
Detail Information
Place of Origin:
China
Certification:
ISO 9001:14000,CE,EACC
Brand Name::
Shanghai Lingzhong(SME) Diesel Generator 1200KW
Rated Voltage::
230V/400V
Engine Model::
S12R-PTAA2-C
Rated Current::
2160A
Frequency::
50Hz/60Hz
Alternator::
MBV7B
Control Panel::
Deepsea / Harsen / Smartgen
Certificate::
ISO 9001:14000,CE
ATS::
Optional
Delivery::
7-30 Days
Warranty Time::
1 Year
Genset Dimension::
5960*2500*2820mm
Genset Weight::
12000kgs
Speed::
1500rpm/1800rpm
Model Number::
MB-1200
Packaging Details:
Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.
Supply Ability:
200pcs/month
Highlight:

Shanghai Lingzhong Diesel Generator Set

,

SME Diesel Generator Set

,

1200kw Diesel Generator Set

Product Description

Shanghai lingzhong(SME) S12R-PTAA2-C​​​​ diesel generator sets features:

! Cooling system with large size radiator and expansion tank

! Heavy- duty chassis

! Built-in insulation and anti-vibration block

! Free-maintenance battery

! AC alternator for battery charger

! Battery charger

! Cable and bracket for battery

! Battery isolation switch

! Main circuit breaker

! Automatic start control system

! Fuel_ Water separator

! Fuel level sensor

! Oil sump pump

! Full load test

! Comprehensive security protection

! Emergency stop button

S12R-PTAA2-C 1500kva 1200kw Shanghai Lingzhong SME Diesel Generator Set 0

Manufacturer Changsha Mingbang Intelligent Technology Co.Ltd
Model MB-1200
Prime Powder 1200KW/1500KVA
Standby Powder 1320KW/1650KVA
Power Factor COSΦ=0.8(lagging)
Max. Output current 2160A
Genset Weight 12000KG(Net)
Length x Width x Height (Engine) (mm) 5960*2500*2820mm
Voltage 400/230V
Frequency 50HZ
Engine Specification
Manufacturer Shanghai lingzhong(SME) Engine Co. Ltd
Model S12R-PTAA2-C
Rated speed 1500rpm
Prime Powder 1277KW/1596.25KVA
Standby Powder 1404KW/1755KVA
Fuel Consumption ≤213g/kw.h
Lube oil capacity 240L
Bore (mm) x Stroke (mm) 170×180
Compression ratio 13.5:1
Displacement (litre) 49L
Coolant capacity, L /
Configuration 12 cylinder V type ,four-stroke, Turbocharged, Charge Air Cooled
Cooling Liquid Cooled
Governor type Electronic
Starting voltage 24 Volts DC
Filtration system Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer Changsha Mingbang Intelligent Technology Co.Ltd
Model MBV7B
Voltage Regulator AVR
Voltage adjust range ±1%
Rated Voltage/Frequency/Factor 400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency 5%
No-load Voltage Adjust Range >=95%-105%
Insulation Class H
IP Protection 22
Excitation Type Blushless
Rated power Engine Alternator Control panel
24kw~1500kw Cummins Stamford
Leroy somer
Marathon
Mecc alte
ABB
Chinese alternators
Deepsea
ComAp
Harsen
Smartgen
36kw~18+00kw Perkins
68kw~560kw Volvo
20kw~200kw Deutz
40kw-2200kw Yuchai
50kw-2200kw Weichai
540kw-1900kw Mitsubishi
50kw-800kw SDEC
650kw~2200kw Chinese engine

S12R-PTAA2-C 1500kva 1200kw Shanghai Lingzhong SME Diesel Generator Set 1S12R-PTAA2-C 1500kva 1200kw Shanghai Lingzhong SME Diesel Generator Set 2

Our factory

Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai



Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.


Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!

S12R-PTAA2-C 1500kva 1200kw Shanghai Lingzhong SME Diesel Generator Set 3

Weichai Diesel Generator Sets Global Warranty Kw Silent Generator 62.5kva Diesel Generator Engine

FAQ Of Shanghai Lingdong diesel generators prices





<<<<<Changsha Mingbang Intelligent Technology Co., Ltd.>>>>>>>



1.Mingbang is devoted to the R&D and manufacturing of diesel generator sets since 2005

2. Mingbang new factory covers an area of 5042 square meters located in Jiang du industrial park of Yang zhou city.

3.Mingbang quality certified by ISO9001 & ISO14001 Management System to guarantee high quality products and service.

5.Mingbang maintaining long term strategic friendship cooperation with domestic and abroad famous manufactures of Cummins, Perkins, Doosan, SDEC, Mitsubishi(SME), Deutz, Wuxi Wandi, Leroysomer, Stamford, and Marathon etc.

6.We have so wide products ranges from 5kva to 3000kva for the diesel generator set; power from 25kva to 1500kva for gas generator set;

7.Soundproof/weather proof type, container type generator set; movable, vehicle type generator sets. Regarding to the electrical control systems, it covers Auto control panel, Synchronization panels, ATS etc.

8.Mingbang can also provide customized solution due to customer requirements upon our standard product supply in order to meet the demand of market. To focus on global market, create mingbang as international brand, and constantly improve our quality level and maximize customer profitability is our unchangeable promise and eternal pursuit.



S12R-PTAA2-C 1500kva 1200kw Shanghai Lingzhong SME Diesel Generator Set 4

More details for diesel generator sets ,please contact us any time



Your further inquiry will be welcome!!
