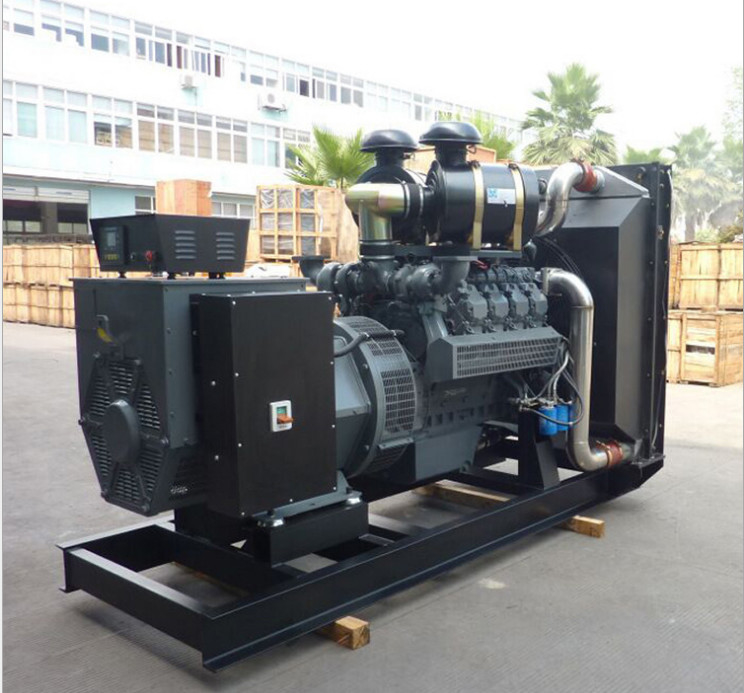

Shanghai lingzhong(SME) S16R-PTA2-C Engine 1875kva 1500kw Diesel Generators Sets

Shanghai lingzhong(SME) S16R-PTA2-C Engine 1875kva 1500kw Diesel Generators Sets

Brand Name: Shanghai lingzhong(SME)
Model Number: S16R-PTA2-C
MOQ: 1PC
Price: Price:Negotiable
Payment Terms: Western Union,T/T,D/P,L/C
Supply Ability: 200pcs/month
Detail Information
Place of Origin:
China
Certification:
ISO 9001:14000,CE,EACC
Brand Name::
Shanghai Lingzhong(SME) Diesel Generator 1500KW
Rated Voltage::
230V/400V
Engine Model::
S16R-PTA2-C
Rated Current::
2700A
Frequency::
50Hz/60Hz
Alternator::
MBV7D
Control Panel::
Deepsea / Harsen / Smartgen
Certificate::
ISO 9001:14000,CE
ATS::
Optional
Delivery::
7-30 Days
Warranty Time::
1 Year
Genset Dimension::
6520*2570*3150mm
Genset Weight::
13000kgs
Speed::
1500rpm/1800rpm
Model Number::
MB-1500
Packaging Details:
Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.
Supply Ability:
200pcs/month
Highlight:

1500kw Diesel Generators Sets

,

1875kva Diesel Generators Sets

,

1875kva diesel powered generator

Product Description

Shanghai lingzhong(SME) S16R-PTA2-C​​​​ diesel generator sets features:


Mainly apply to small tractors, farm vehicles, small generators, air compressors, inland shipping and power plant of agricultural processing (such as threshers, rice mills, milling machines, feed crusher, etc.).
Feature:
1. new design make diesel engine more beautiful;
2 .large capacity fuel tank to work longer;
3. sing uniaxial balance, so that the diesel engine is more balanced;
4. low fuel consumption, more economical diesel engine;
5. excellent starting performance, the starter is more convenient;
6. using an oil bath air filter, more adapted to the harsh working environment.

Shanghai lingzhong(SME) S16R-PTA2-C Engine 1875kva 1500kw Diesel Generators Sets 0




Manufacturer Changsha Mingbang Intelligent Technology Co.Ltd
Model MB-1500
Prime Powder 1500KW/1875KVA
Standby Powder 1650KW/2062.5KVA
Power Factor COSΦ=0.8(lagging)
Max. Output current 2700A
Genset Weight 13000KG(Net)
Length x Width x Height (Engine) (mm) 6520*2570*3150mm
Voltage 400/230V
Frequency 50HZ
Engine Specification
Manufacturer Shanghai Lingzhong(SME) Engine Co. Ltd
Model S16R-PTA2-C
Rated speed 1500rpm
Prime Powder 1600KW/2000KVA
Standby Powder 1760KW2200KVA
Fuel Consumption ≤215g/kw.h
Lube oil capacity 280L
Bore (mm) x Stroke (mm) 170×180
Compression ratio 14:01
Displacement (litre) 68L
Coolant capacity, L /
Configuration 16 cylinder V type ,four-stroke, Turbocharged, Charge Air Cooled
Cooling Liquid Cooled
Governor type Electronic
Starting voltage 24 Volts DC
Filtration system Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer Changsha Mingbang Intelligent Technology Co.Ltd
Model MBV7D
Voltage Regulator AVR
Voltage adjust range ±1%
Rated Voltage/Frequency/Factor 400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency 5%
No-load Voltage Adjust Range >=95%-105%
Insulation Class H
IP Protection 22
Excitation Type Blushless
Rated power Engine Alternator Control panel
24kw~1500kw Cummins Stamford
Leroy somer
Marathon
Mecc alte
ABB
Chinese alternators
Deepsea
ComAp
Harsen
Smartgen
36kw~18+00kw Perkins
68kw~560kw Volvo
20kw~200kw Deutz
40kw-2200kw Yuchai
50kw-2200kw Weichai
540kw-1900kw Mitsubishi
50kw-800kw SDEC
650kw~2200kw Chinese engine

Shanghai lingzhong(SME) S16R-PTA2-C Engine 1875kva 1500kw Diesel Generators Sets 1Shanghai lingzhong(SME) S16R-PTA2-C Engine 1875kva 1500kw Diesel Generators Sets 2

Our factory

Mingbang Co.,Ltd is one of the leading and largest world-wide producers and exporters for Diesel Generator (land diesel power generator&marine diesel generating set) and Gasoline Generator set from 1kva up to 2500kva. Transformed from a state owned enterprise and founded in 2005, Mingbang's Factory and generators assembling centers have more than two decades of experience in the design, research and manufacturing of diesel genset in strict compliance with ISO and CE standards. Up to being now, more than 20,000 sets of high quality generator set from mingbang have been working well in many fields including railways, oil fields, Schools, hospitals, banks, supermarkets, industries, tall buildings, sea ports and military bases etc.

Shanghai lingzhong(SME) S16R-PTA2-C Engine 1875kva 1500kw Diesel Generators Sets 3

Diesel Generator Sets 1875kva 1500kw Power Plant Industrial 50hz 60hz Soundproof Silent Diesel Generator Price



FAQ Of Shanghai lingzhong(SME) diesel generators prices

<<<<<Changsha Mingbang Intelligent Technology Co., Ltd.>>>>>>>


1,Best choice for Continuous power or Prime power, Backup power or Standby power

2,Easy to install and maintain, even for new users.

3,Premium quality with 2 years warranty and low noise, less than 70dB.

4,Widely applications. Portable power for Hotel, Medical clinic, Healthcare & Hospitals, Airports, Commercial & Public Buildings, Data center, Residential & Utilities, Hotels, Aquatic Centers, Greenhouses, Industrial & Manufacturing, Agriculture, Landfills, Sewage & Water Treatment, Power Stations, Government, and also some remote locations, construction sites, events.

5,Professional manufacturer with 20 years experience, certified to CE and ISO9001, you can be assured of a good quality products with a best possible price.Welcome your enquiry at any time.


Shanghai lingzhong(SME) S16R-PTA2-C Engine 1875kva 1500kw Diesel Generators Sets 4
